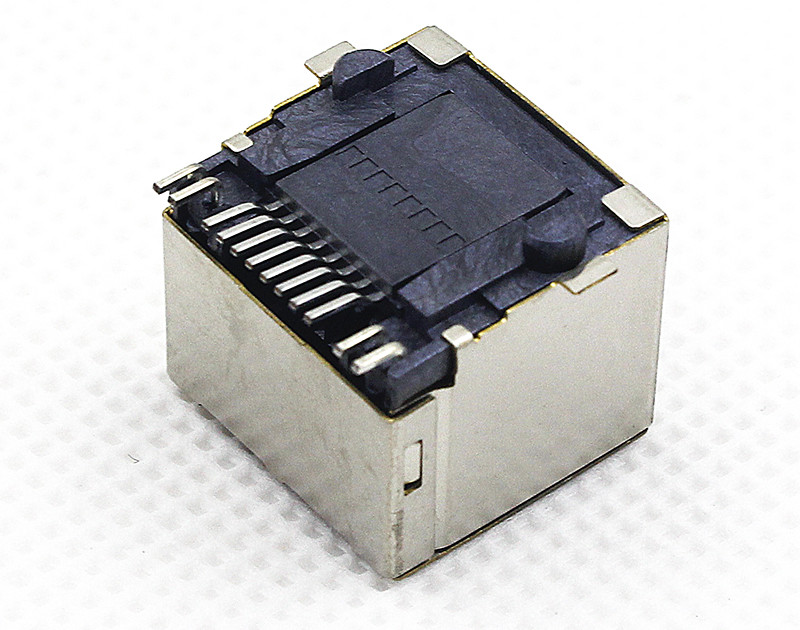

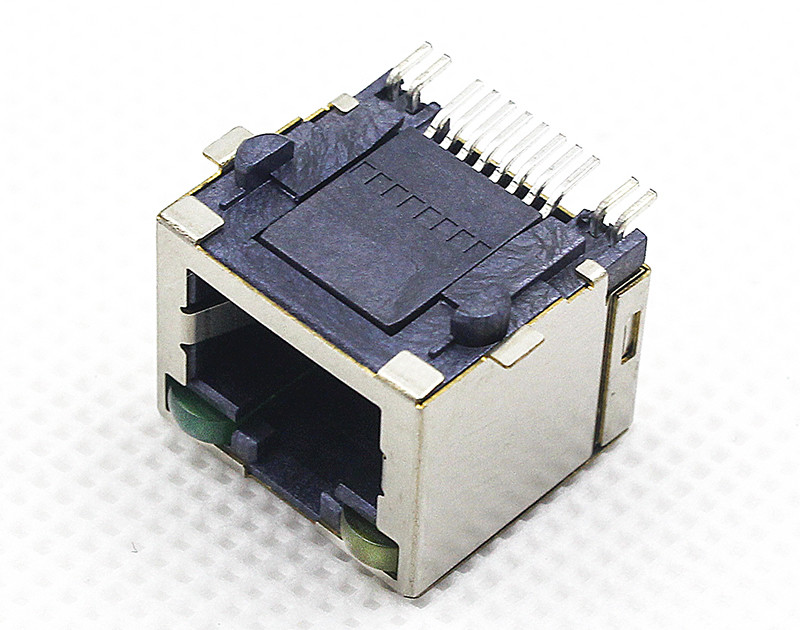

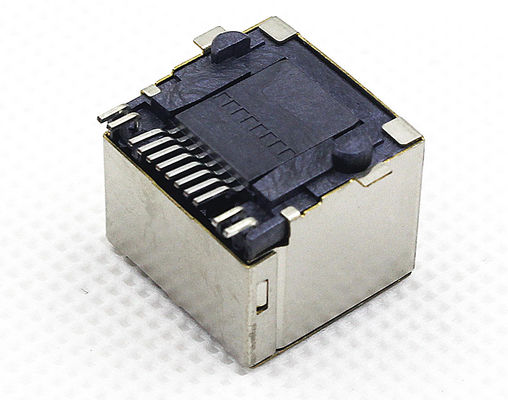

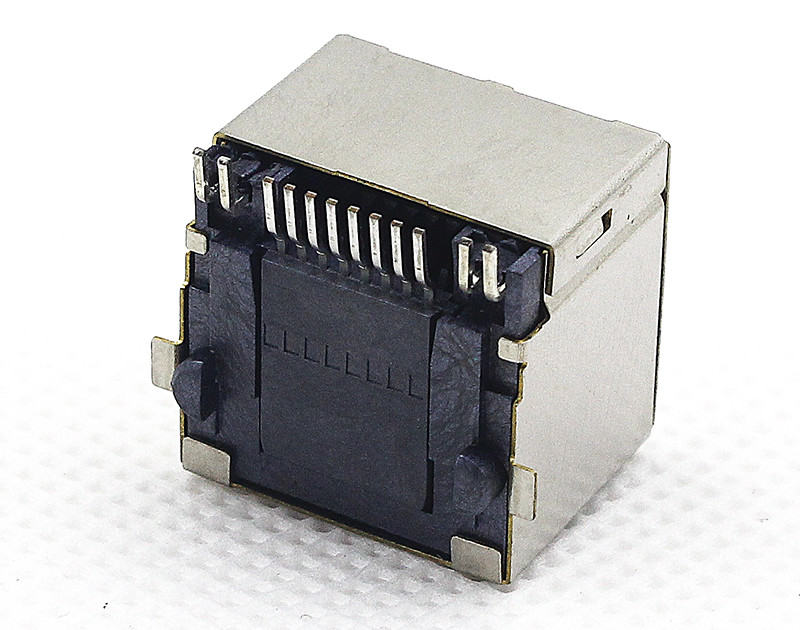

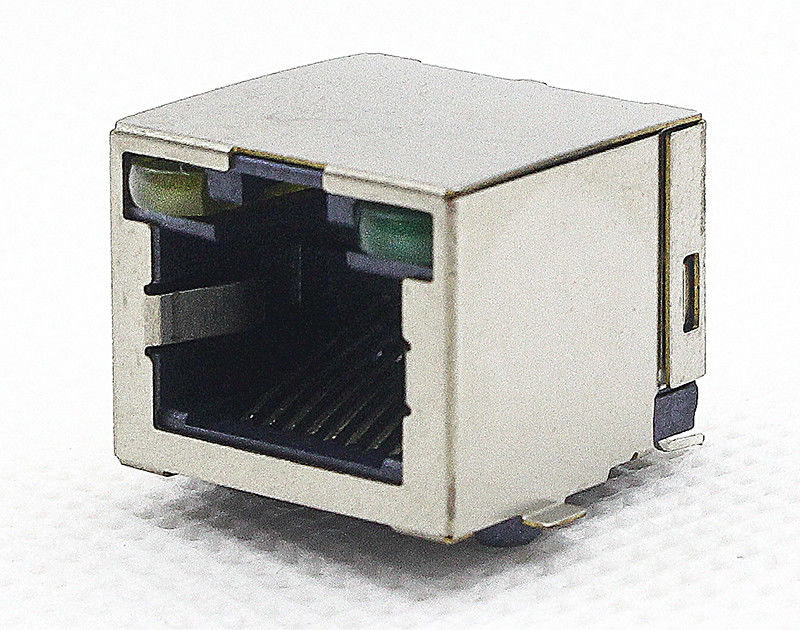

1x1 Port 8P8C SMT RJ45 Jack / Surface Mount Network Jack With LEDs TM5JS811EX115

Name: 1x1 Port 8P8C SMT RJ45 Jack / Surface Mount Network Jack With LEDs TM5JS811EX115
Brand: TM
SKU: TM5JS811EX115
Price: 1.00 USD
Availability: InStock
Rating: 5 (104 reviews)

Minimum Order Quantity :	500/1000/2000 pcs	Price :	Supportive
Packaging Details :	100pcs/tray	Delivery Time :	15 Days
Payment Terms :	T/T, Western Union, ,Paypal	Supply Ability :	500K/year

Place of Origin:	Guangdong of China	Brand Name:	TM
Certification:	UL,Rohs,Reach,ISO9001	Model Number:	TM5JS811EX115

Detail Information
Product Type :	RJ45 Modular Connector	Jack Type:	RJ45
Number Of Positions:	8	Terminals Per Port:	8
LED Option:	LEFT GN,RIGHT YE	Shielded EMI Tabs:	No
Voltage Rating:	No	Current Rating:	1.5 A
Contact Resistance:	30mΩ	Insulation Resistance:	500 MΩ MIN @ 500V DC
Dielectric Resistance:	1000V AC RMS 50Hz. 1MIN	Durrability:	750 CYCLES MIN
Minimal Order:	500pcs	Package:	100pcs/tray
High Light:	rj45 smt connector , rj45 female connector , 1x1 Port 8P8C SMT RJ45 Jack

Product Description

Tab Up Shielded 1x1 Port 8P8C RJ45 Female Connector With LEDs TM5JS811EX115

Materials:

Housing : LCP,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED.
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:
RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Latch Up
Connector Length: 15.5 mm
Connector Width: 16.45 mm
Connector Height: 13.40 mm
Connector Peg Height: 1.3 mm
Termimal Solder Pin Length: 1.0 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With L-Yellow/R-green, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

RJ45 Without Transformer ( Attributes:

Model:	TM5JS811EX115
Place of Origin:	Guangdong of China
Certification:	UL,Rohs,TM5JS811EX115)Reach,ISO9001
Product Type :	RJ45 Modular Connector
Jack Type:	RJ45
Number of Positions :	8
Terminals per Port:	8
LED Option:	L-Yellow/R-Green
Shielded EMI Tabs:	No
Voltage rating:	125 V
Current rating:	1.5 A
Contact resistance:	30mΩ
Insulation resistance:	500 MΩ MIN @ 500V DC
Dielectric resistance:	1000V AC RMS 50Hz. 1MIN
Durrability:	750 CYCLES MIN
Minimal Order:	900pcs
Package:	180pcs/tray,900pcs/carton
Carton size:	*393934.5cm*
Delivery Time:	20 Days
Payment Terms:
Supply Ability:	5KK/year
