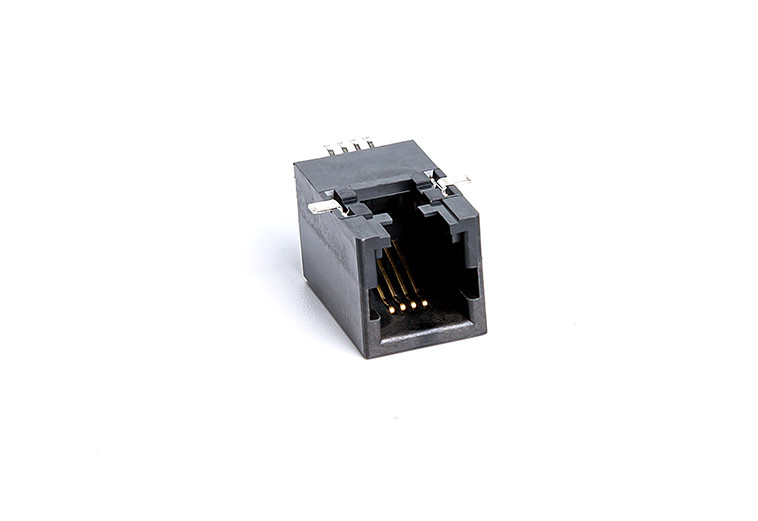

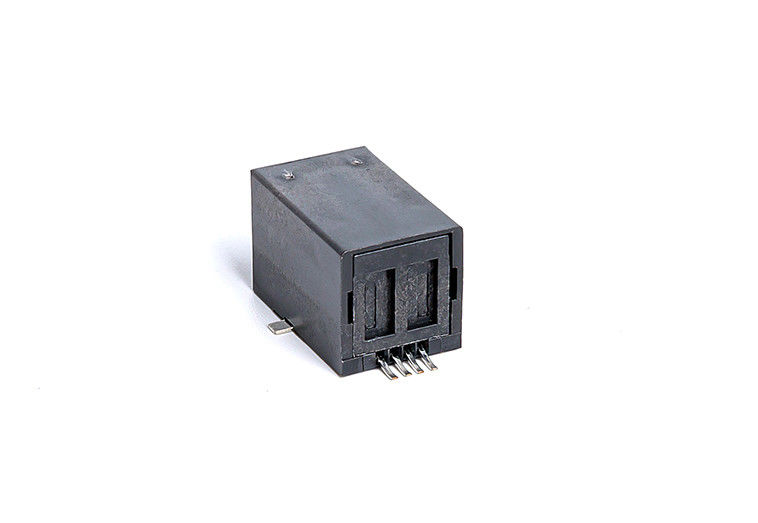

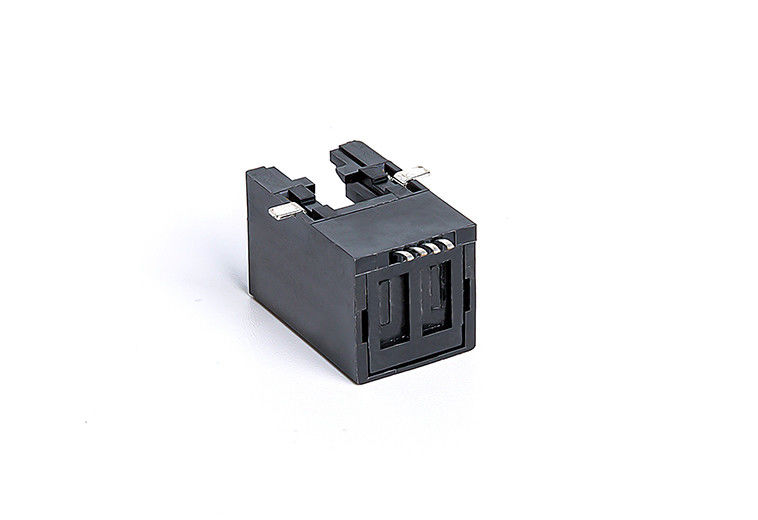

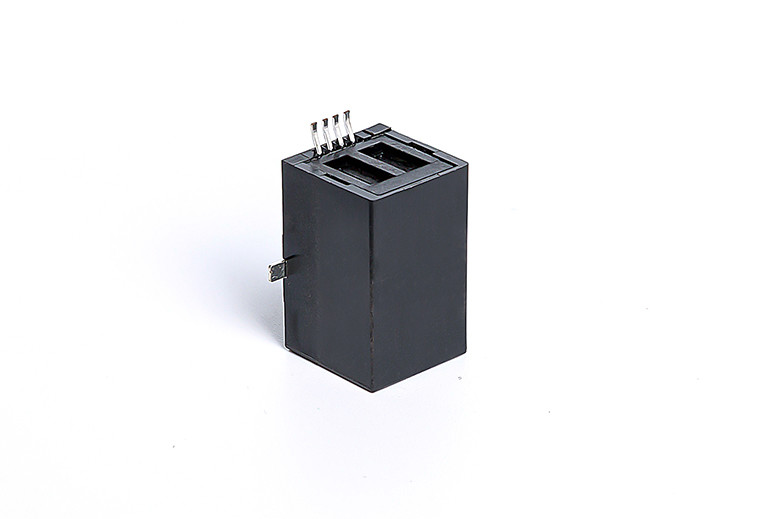

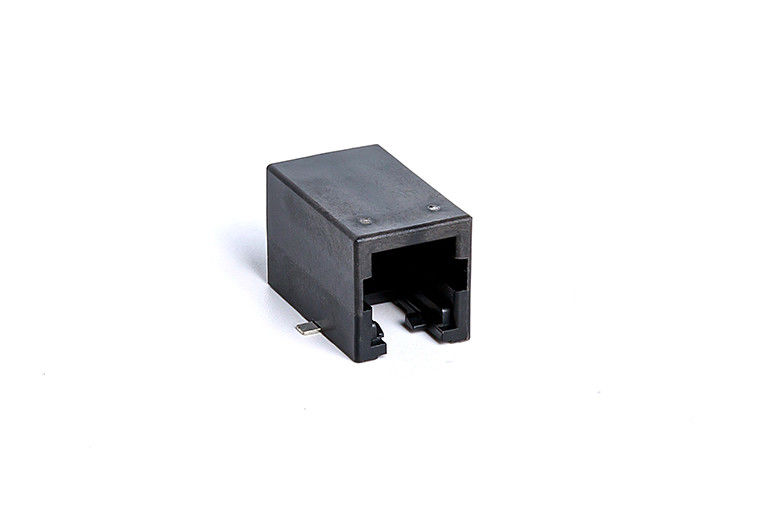

FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41
FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41 FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41 FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41 FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41 FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41
Contact Now

FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 180pcs/tray,1440pcs/carton Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM56S211SXX41

Detail Information
Product Type : RJ11 Modular Connector Jack Type: RJ11
Number Of Positions: 4 Terminals Per Port: 4
LED Option: No Shielded EMI Tabs: No
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 1pcs
Package: 180pcs/tray,1440pcs/carton
Highlight:

rj45 smt connector

,

rj45 female connector

Product Description

FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down Right Angle TM56S211SXX41



Materials:

Housing : FR52,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No.
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:
1 x 1 Port / Single Port / SMT Port
Connector Length: 18.1 mm
Connector Width: 11.20 mm
Connector Height: 11.50 mm
Termimal Solder Pin Length: 2.5 mm
4P4C ( 4 positions 4 contacts )
90°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ11 Without Transformer (TM56S211SXX41) Attributes:
Model: TM56S211SXX41
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 4
Terminals per Port: 4
LED Option: NO
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 180pcs/tray,1440pcs/carton
Carton size: 35*35*40cm
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ11 Female Connector () Mechnical Drawing:

FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41 0FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41 1FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41 2FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41 3FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41 4FR52 SMT Black Plastic 4 Pin RJ11 Female Connector Tab Down TM56S211SXX41 5
