Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43

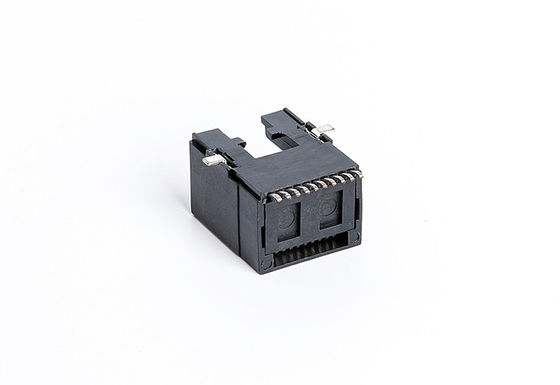

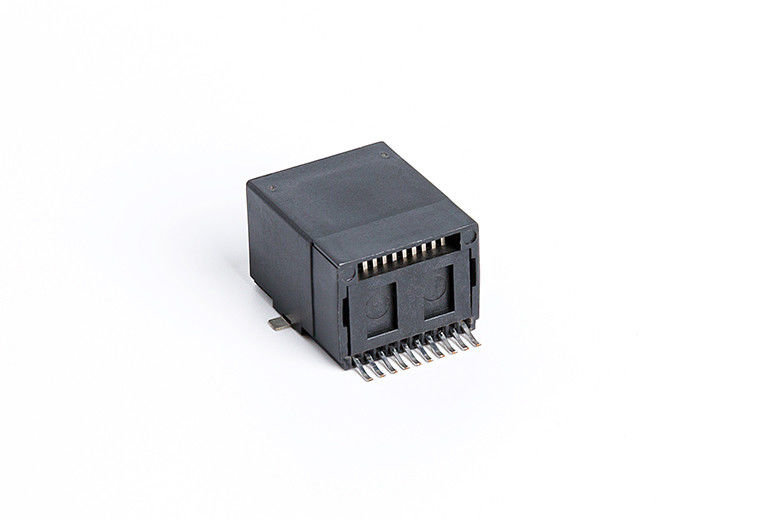

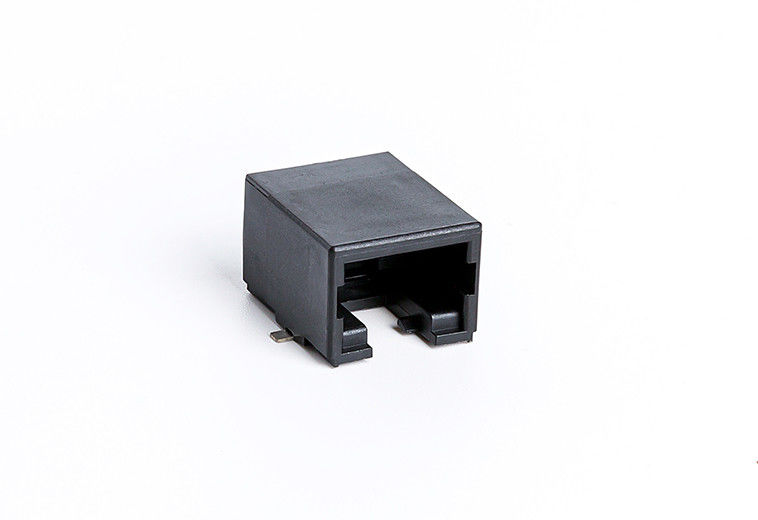

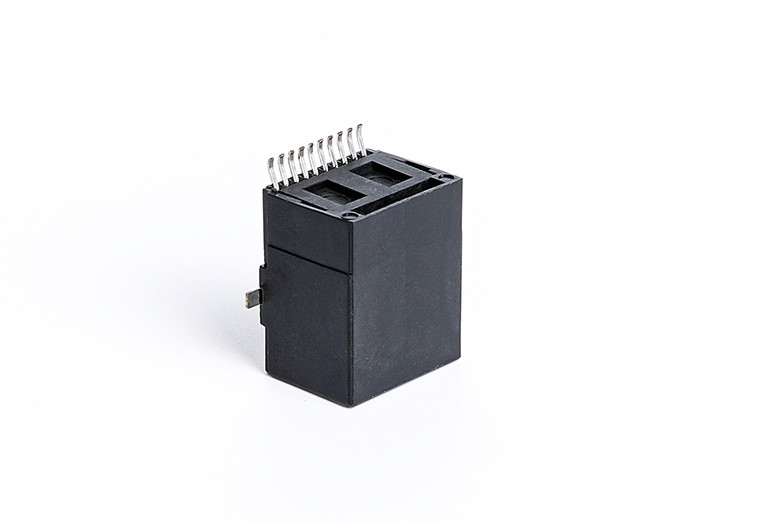

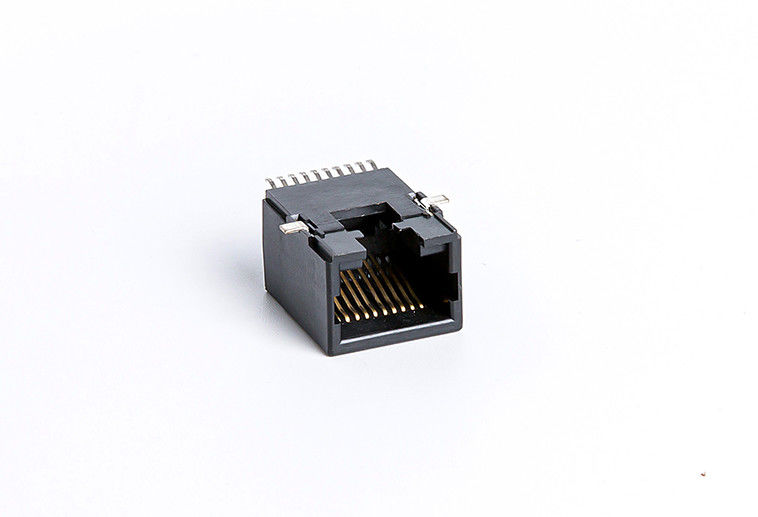

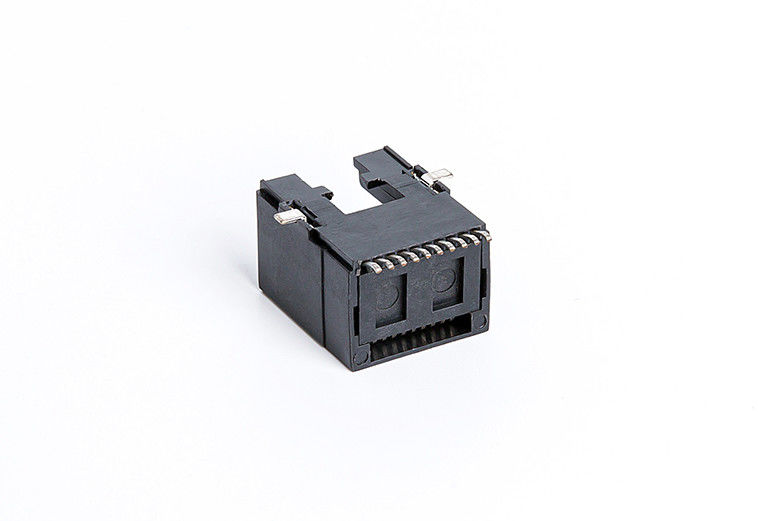

Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43 Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43 Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43 Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43 Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43
Contact Now

Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 180pcs/tray,1440pcs/carton Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM56S011SXX43

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 10 Terminals Per Port: 10
LED Option: No Shielded EMI Tabs: No
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 1pcs
Package: 180pcs/tray,1440pcs/carton
High Light:

rj45 smt connector

,

surface mount rj45 plug

Product Description

rj45 low profile 10p10c Female Vertical Connector Through Hole Cool Black 6U TM56S011SXX43



Materials:
Housing : FR52,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED.
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:
1 x 1 Port / Single Port / SMT Port
Connector Length: 18.10 mm
Connector Width: 15.00 mm
Connector Height: 11.50 mm
Termimal Solder Pin Length: 2.50 mm
10P10C ( 10 positions 10 contacts )
90°Orientation
Without, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required



 RJ45 Without Transformer (TM56S011SXX43) Attributes:

Model: TM56S011SXX43
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 10
Terminals per Port: 10
LED Option: NO
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 180pcs/tray,1440pcs/carton
Carton size: 35*35*40cm
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM56S011SXX43) Mechnical Drawing:

Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43 0

Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43 1Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43 2Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43 3Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43 4Low Profile 10p10c Vertical Rj45 Female Connector Through Hole Cool Black 6U TM56S011SXX43 5
