Modular SMT RJ45 Jack Without Integrated Transformer Magnetics 180° Orientation Top Entry
Modular SMT RJ45 Jack Without Integrated Transformer Magnetics 180° Orientation Top Entry Modular SMT RJ45 Jack Without Integrated Transformer Magnetics 180° Orientation Top Entry Modular SMT RJ45 Jack Without Integrated Transformer Magnetics 180° Orientation Top Entry Modular SMT RJ45 Jack Without Integrated Transformer Magnetics 180° Orientation Top Entry Modular SMT RJ45 Jack Without Integrated Transformer Magnetics 180° Orientation Top Entry
Contact Now

Modular SMT RJ45 Jack Without Integrated Transformer Magnetics 180° Orientation Top Entry

Minimum Order Quantity : 1/500/1000/2000 pcs Price : Supportive
Packaging Details : 150pcs/tray,1200pcs/carton Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52S811EXX47

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 1pcs
Package: 150pcs/tray,1200pcs/carton
High Light:

rj45 smt connector

,

rj45 female connector

Product Description

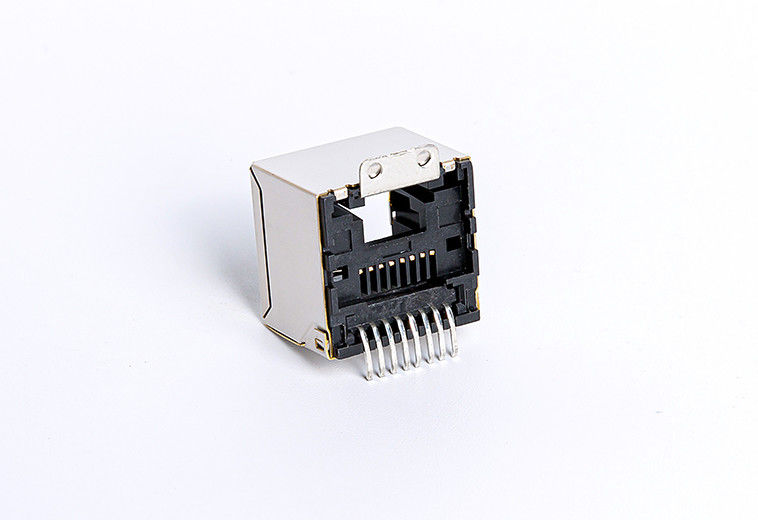

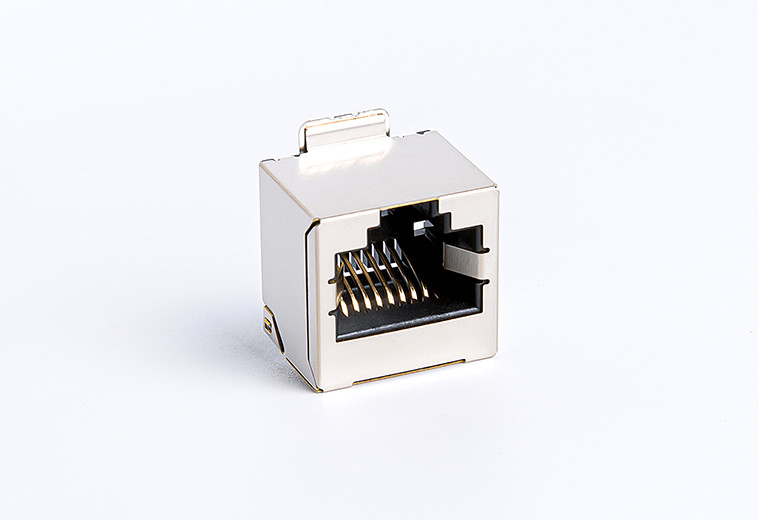

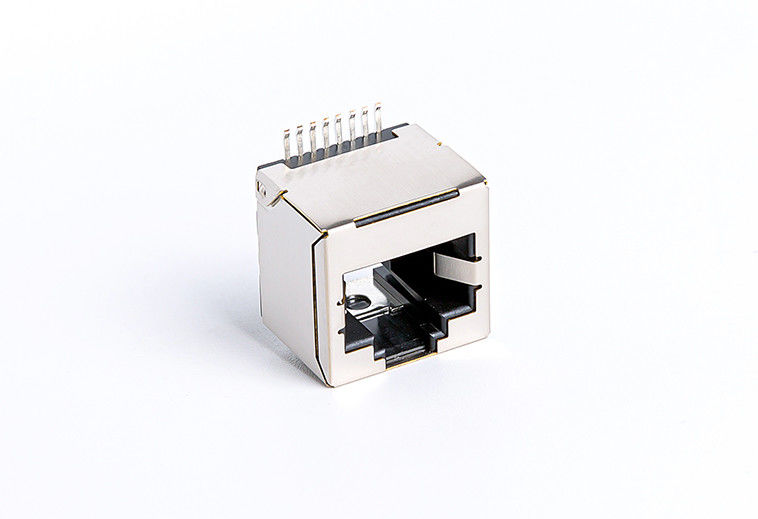

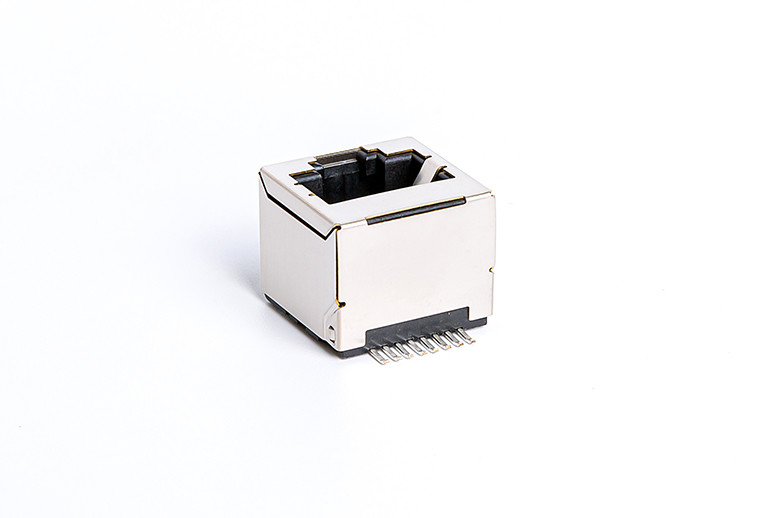

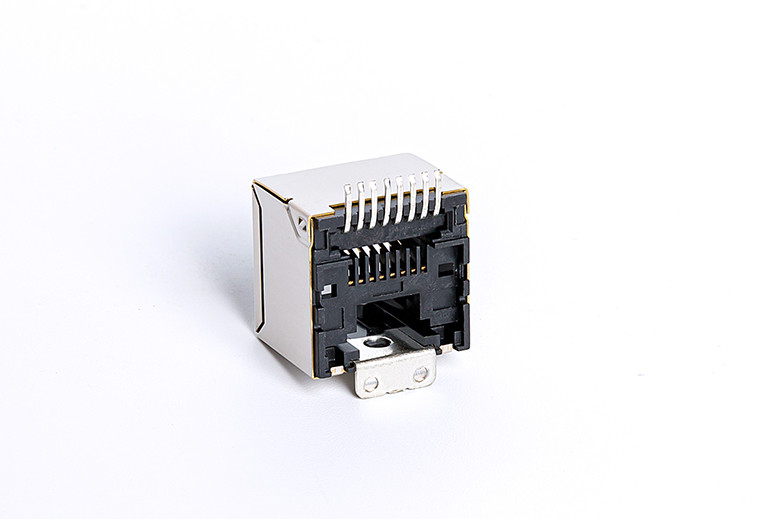

180° orientation top entry Vertical SMT RJ45 Modular Jack Without Integrated Transformer Magnetics TM52S811EXX47



Materials:

Housing : FR52,BLACK,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED.
All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:
RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Latch Up
Connector Length: 15.6 mm
Connector Width: 15.85 mm
Connector Height: 12.9 mm
Termimal Solder Pin Length: 2.5 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



RJ45 Without Transformer (TM52S811EXX47) Attributes:

Model: TM52S811EXX47
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1200pcs
Package: 150pcs/tray,1200pcs/carton
Carton size: 35*35*40cm
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM52S811EXX47) Mechnical Drawing:
