rj45 smt connector Single Port Shield Mounting Without Magnetics TM58S811EXX11

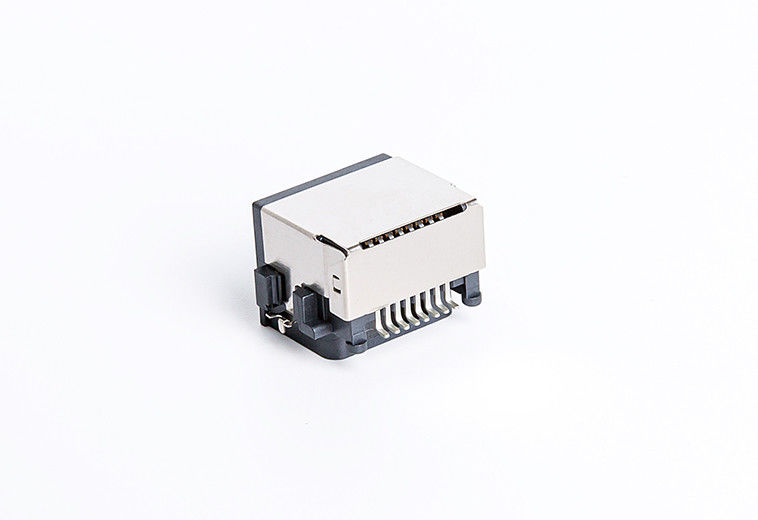

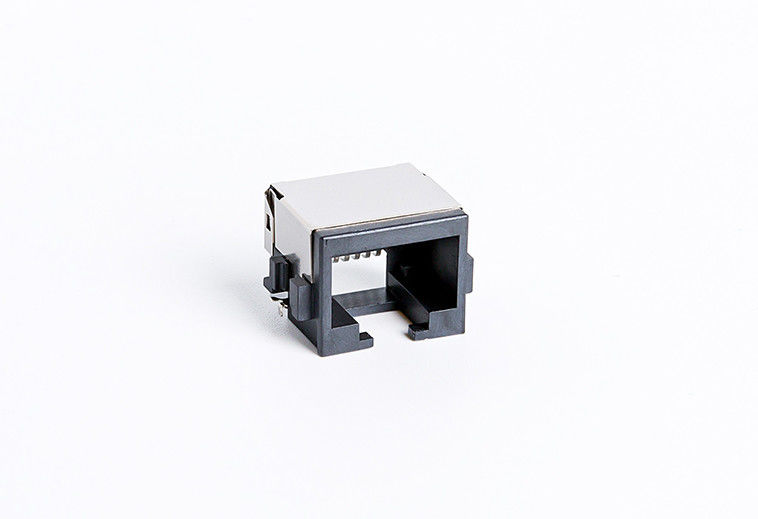

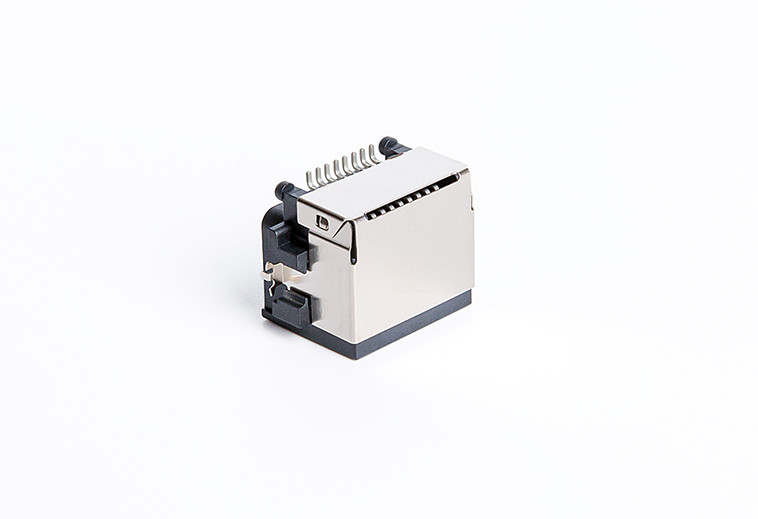

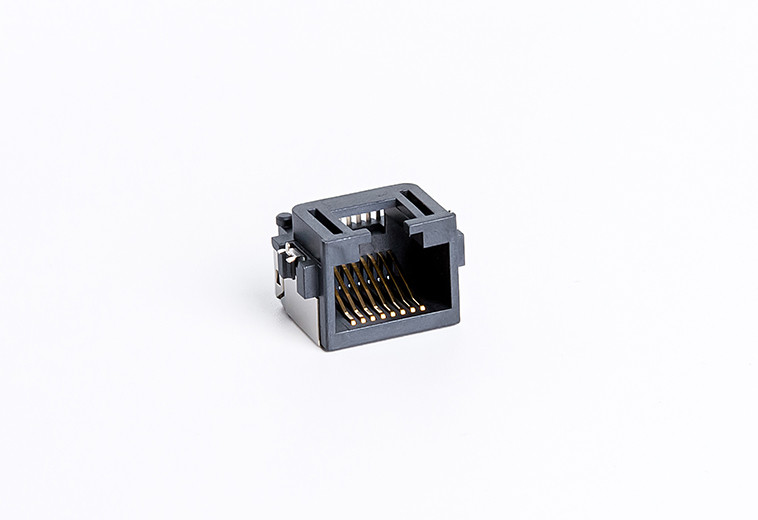

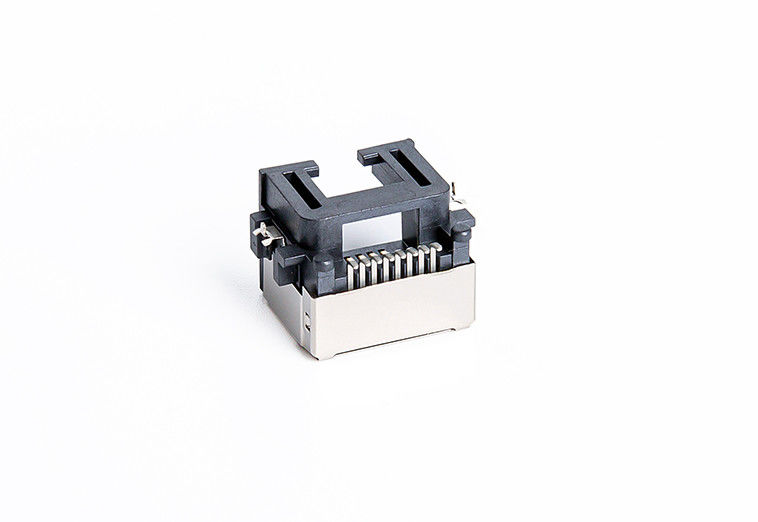

rj45 smt connector Single Port Shield Mounting Without Magnetics TM58S811EXX11 rj45 smt connector Single Port Shield Mounting Without Magnetics TM58S811EXX11 rj45 smt connector Single Port Shield Mounting Without Magnetics TM58S811EXX11 rj45 smt connector Single Port Shield Mounting Without Magnetics TM58S811EXX11 rj45 smt connector Single Port Shield Mounting Without Magnetics TM58S811EXX11
Contact Now

rj45 smt connector Single Port Shield Mounting Without Magnetics TM58S811EXX11

Minimum Order Quantity : 1/500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM58S811EXX11

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: L-Yellow/R-Green Shielded EMI Tabs: No
Voltage Rating: No Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 1pcs Package: 100pcs/tray,3000pcs/carton
High Light:

rj45 smt connector

,

surface mount rj45 plug

Product Description

rj45 smt connector Single Port Shield Mounting Without Magnetics TM58S811EXX11



Materials:

Housing : LCP,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED.
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:
1 x 1 Port / Single Port / SMT Port
Connector Length: 12.75 mm
Connector Width: 14.30 mm
Connector Height: 11.45 mm
Termimal Solder Pin Length: 1.6 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



RJ45 Without Transformer (TM58S811EXX11) Attributes:

Model: TM58S811EXX11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: L-Yellow/R-Green
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 100pcs/tray,3000pcs/carton
Delivery Time: 20 Days
Supply Ability:

5KK/year



RJ45 Female Connector (TM58S811EXX11) Mechnical Drawing:

rj45 smt connector Single Port Shield Mounting Without Magnetics TM58S811EXX11 0rj45 smt connector Single Port Shield Mounting Without Magnetics TM58S811EXX11 1
