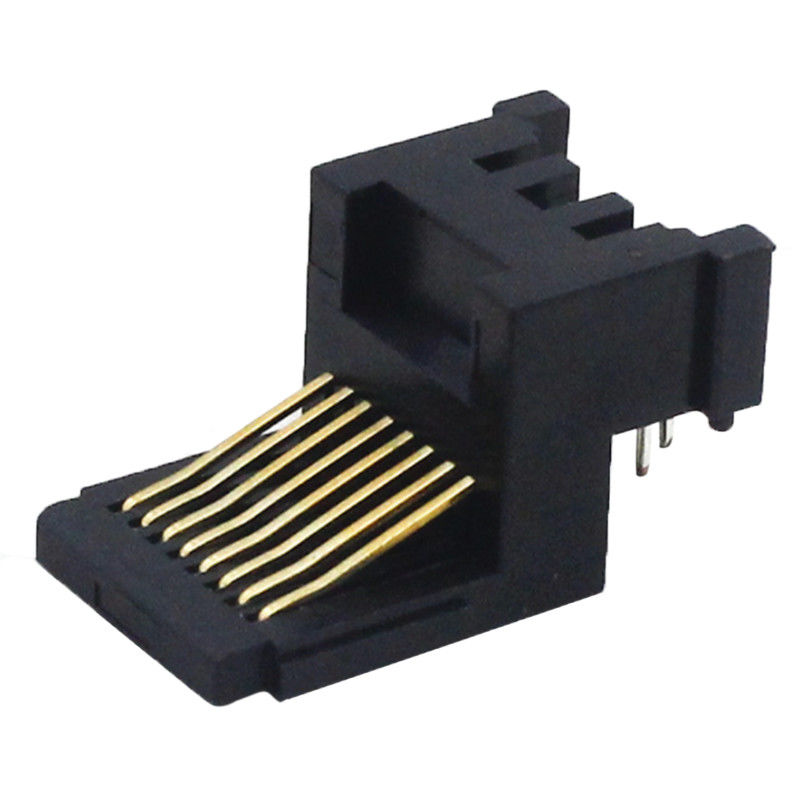

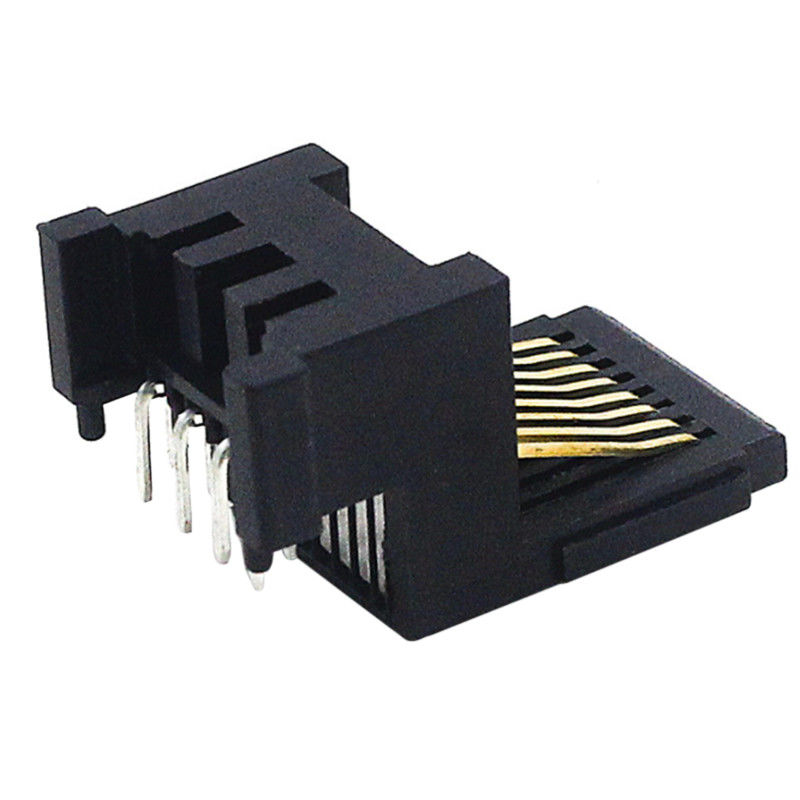

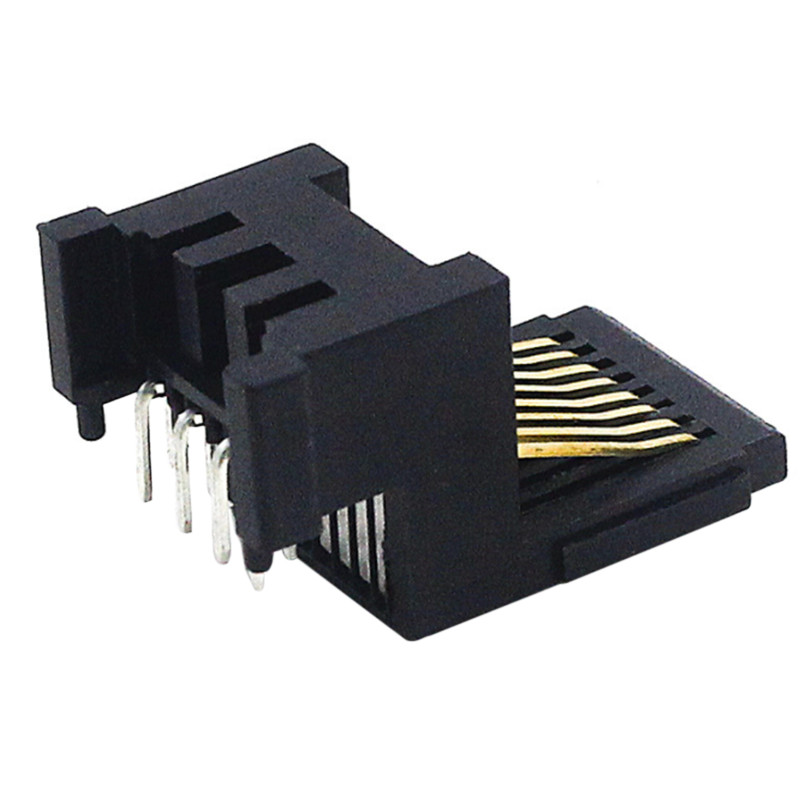

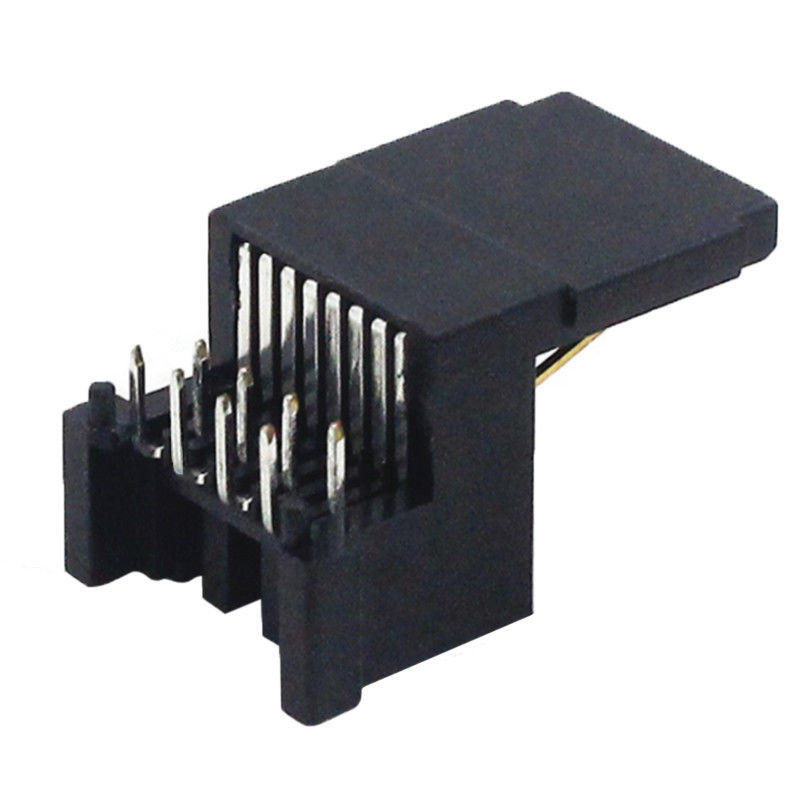

18.3 Mm Unshielded Rj45 Adapter Half Board Bracket Without Transformer
18.3 Mm Unshielded Rj45 Adapter Half Board Bracket Without Transformer 18.3 Mm Unshielded Rj45 Adapter Half Board Bracket Without Transformer 18.3 Mm Unshielded Rj45 Adapter Half Board Bracket Without Transformer
Contact Now

18.3 Mm Unshielded Rj45 Adapter Half Board Bracket Without Transformer

Minimum Order Quantity : 1/500/1000/2000 pcs Price : Supportive
Packaging Details : 30pcs/pipe Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJ014038

Detail Information
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
High Light:

female ethernet adapter

,

Rj45 Adapter Half Board Bracket

,

18.3 Mm Unshielded Rj45 Adapter

Product Description

18.3 mm Unshield rj45 adapter half board bracket connector Without Transformer TMZJ014038



Bracket Of Connector(TMZJ014038) Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: Stainless Steel
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Bracket Of Connector(TMZJ014038)Product Structure:
RJ45 Modular Jack
1 x 1 Port / Single Port / One Port
RJ45 Connector Length: 27.6 mm
RJ45 Connector Width: 14.4 mm
RJ45 Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


Bracket Of Connector(TMZJ014038) Attributes:

Model: TMZJ014038
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



Bracket Of Connector(TMZJ014038)Mechnical Drawing:



18.3 Mm Unshielded Rj45 Adapter Half Board Bracket Without Transformer 0
