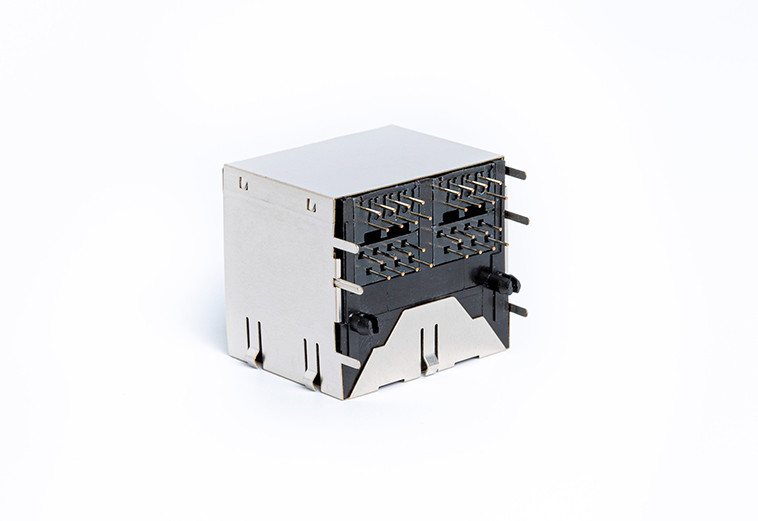

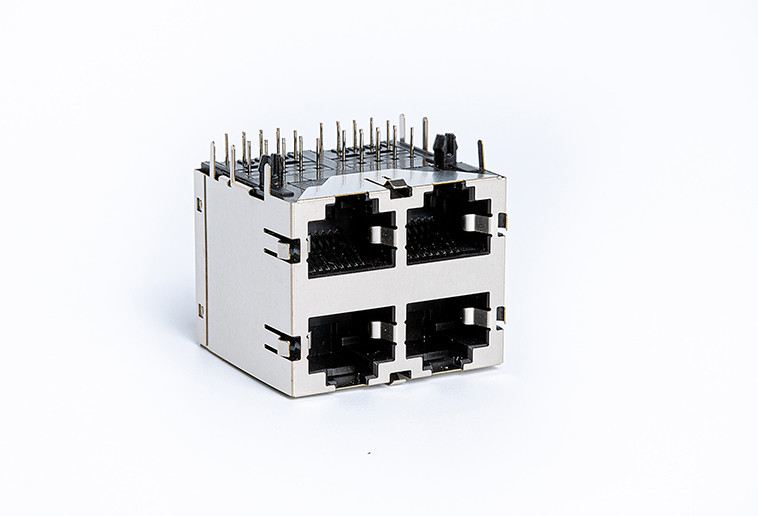

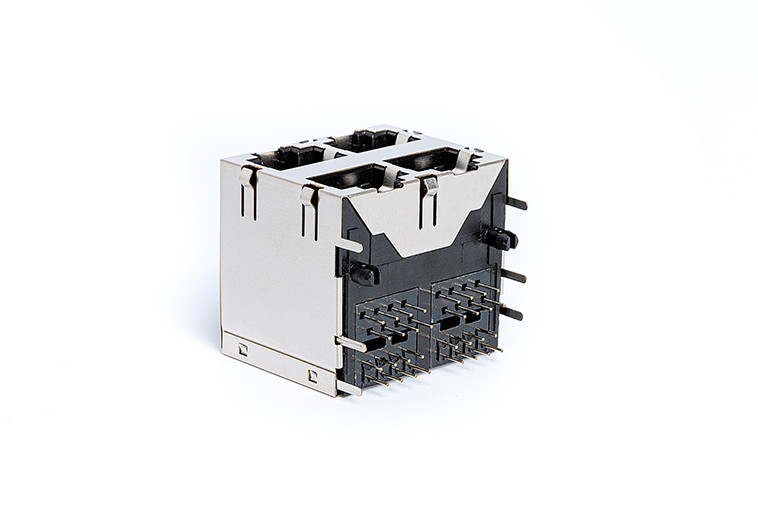

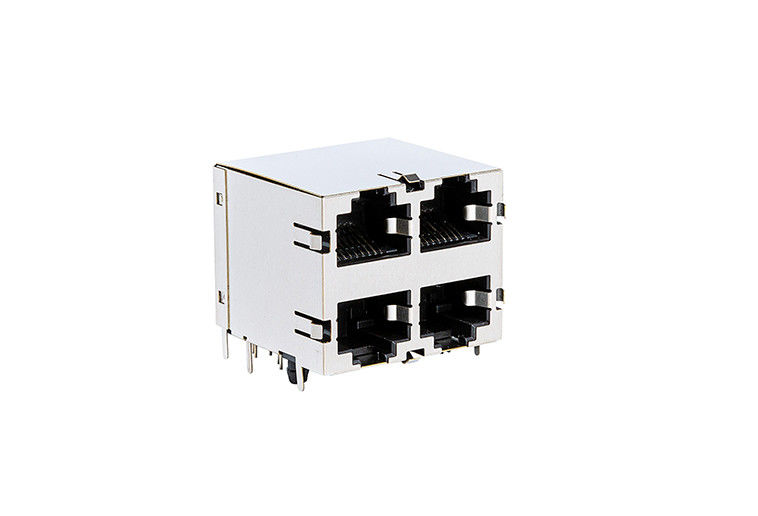

Rj45 Ethernet Connector Metal Shielded 2X2 CAT 5 Without Led TM59B822T1X11
Rj45 Ethernet Connector Metal Shielded 2X2 CAT 5 Without Led TM59B822T1X11 Rj45 Ethernet Connector Metal Shielded 2X2 CAT 5 Without Led TM59B822T1X11 Rj45 Ethernet Connector Metal Shielded 2X2 CAT 5 Without Led TM59B822T1X11 Rj45 Ethernet Connector Metal Shielded 2X2 CAT 5 Without Led TM59B822T1X11
Contact Now

Rj45 Ethernet Connector Metal Shielded 2X2 CAT 5 Without Led TM59B822T1X11

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM59B822T1X11

Detail Information
LENGTH: 28.2 Mm HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD FU'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: NO NUMBER OF PORTS: 2X2
NUMBER OF CONTACTS: 8 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: YES
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 1pcs
Package: 35pcs/tray,875pcs/carton Delivery Time: 20 Days
Supply Ability: 5KK/year
High Light:

rj45 ethernet socket

,

female ethernet jack

,

Metal Shielded 2X2 CAT5 RJ45 Connector

Product Description

network connectors rj45 metal shielded 2X2 ethernet CAT 5 rj45 dual jack without Led TM59B822T1X11



Materials:


Housing:PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Dual layer Connector
2 x 2 Port / Four ports
Connector Length: 28.2 mm
Connector Width: 31.45 mm
Connector Height: 25.25 mm
Termimal Solder Pin Length: 3.4 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM59B822T1X11) Attributes:

Model: TM59B822T1X11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Dual layer Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: YES
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 40pcs/tray,1000pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM59B822T1X11) Mechnical Drawing:

 Rj45 Ethernet Connector Metal Shielded 2X2 CAT 5 Without Led TM59B822T1X11 0
