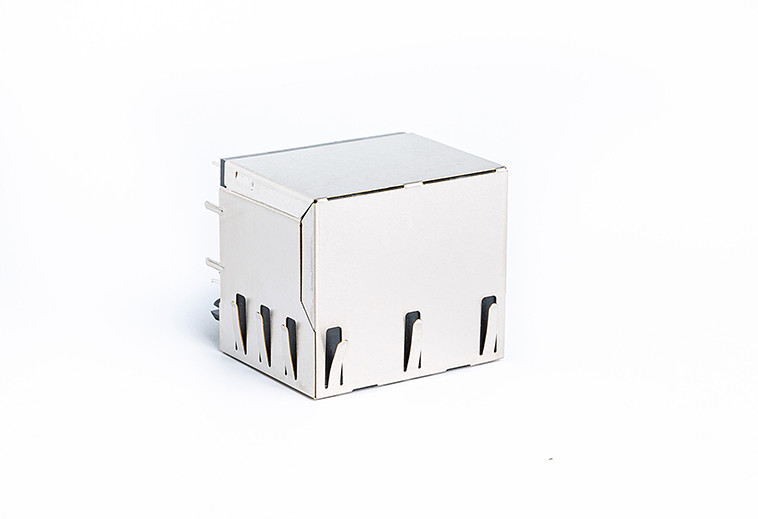

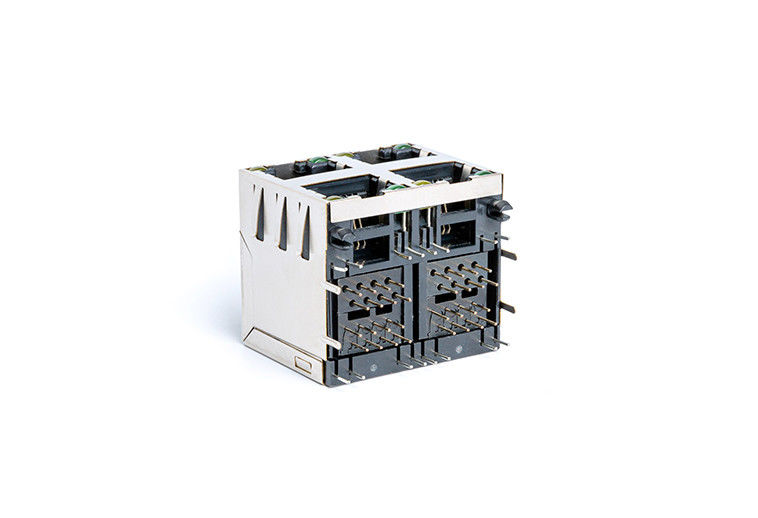

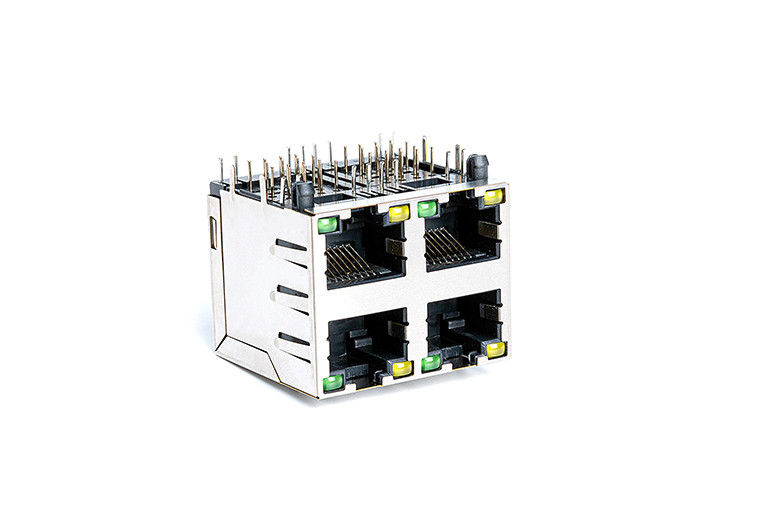

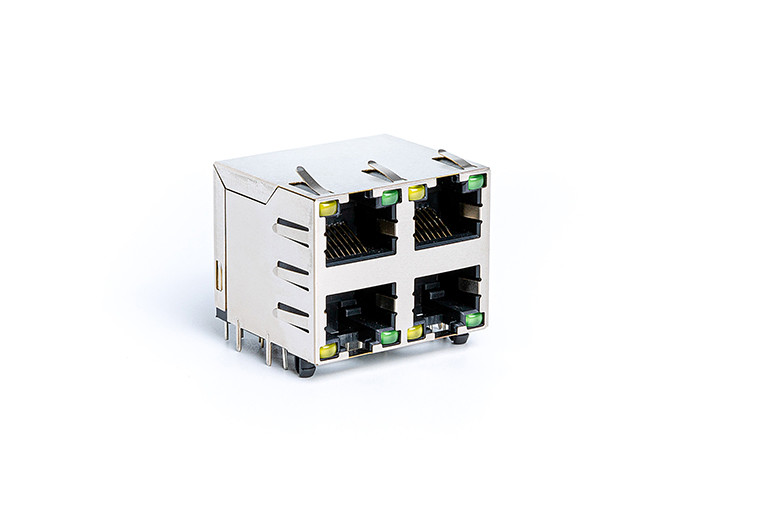

Tab UP RJ45 Dual Connector / 8 Ports 2X2 Female Ethernet Jack For Wireless Router
Tab UP RJ45 Dual Connector / 8 Ports 2X2 Female Ethernet Jack For Wireless Router Tab UP RJ45 Dual Connector / 8 Ports 2X2 Female Ethernet Jack For Wireless Router Tab UP RJ45 Dual Connector / 8 Ports 2X2 Female Ethernet Jack For Wireless Router Tab UP RJ45 Dual Connector / 8 Ports 2X2 Female Ethernet Jack For Wireless Router
Contact Now

Tab UP RJ45 Dual Connector / 8 Ports 2X2 Female Ethernet Jack For Wireless Router

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM5JC822T2111

Detail Information
LENGTH: 28.15 Mm HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD FU'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: NO NUMBER OF PORTS: 2X2
NUMBER OF CONTACTS: 8 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: YES
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 1pcs
Package: 35pcs/tray,875pcs/carton Delivery Time: 20 Days
Supply Ability: 5KK/year
High Light:

rj45 ethernet socket

,

female ethernet jack

,

8 Ports Tab Up RJ45 Dual Connector

Product Description

Shiled Tab UP ethernet rj45 dual modular jack 8Ports,2X2 female stack jack for wireless router TM5JC822T2111






RJ45 Without Transformer (TM5JC822T2111) Attributes:

Model: TM5JC822T2111
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Dual Layer Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: left yellow/right green
Shielded EMI Tabs: YES
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 40pcs/tray,1000pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year



Tab UP RJ45 Dual Connector / 8 Ports 2X2 Female Ethernet Jack For Wireless Router 0RJ45 Female Connector (TM5JC822T2111) Mechnical Drawing:
 Tab UP RJ45 Dual Connector / 8 Ports 2X2 Female Ethernet Jack For Wireless Router 1
