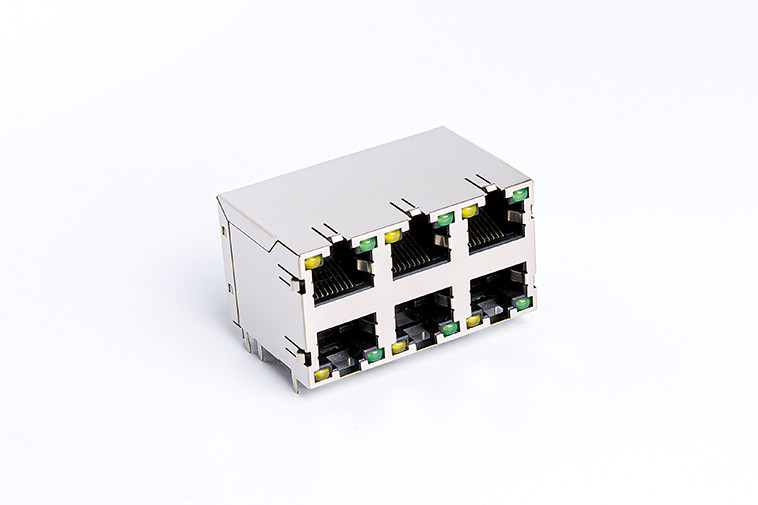

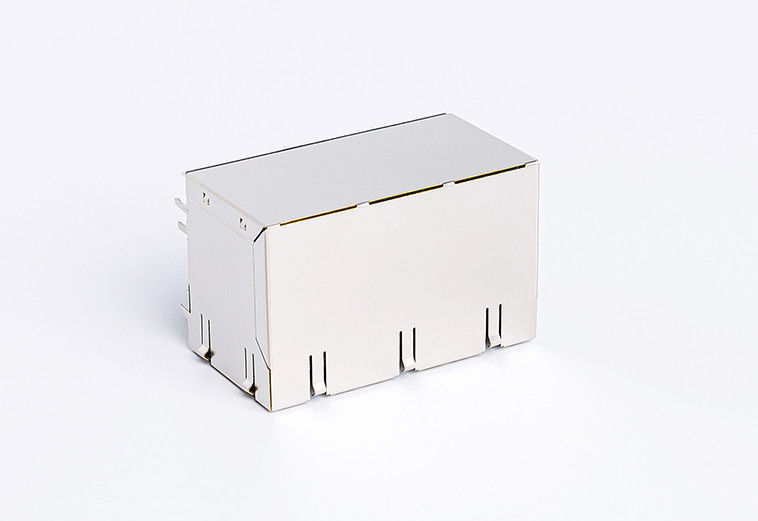

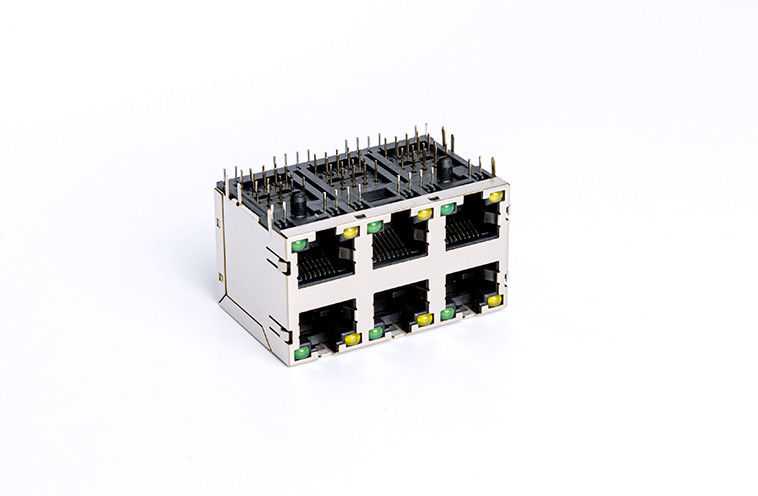

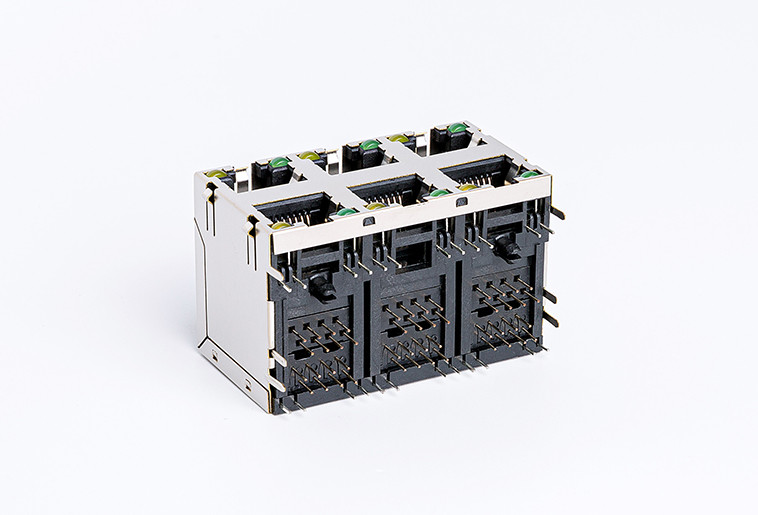

CAT5 Internet Cable Rj45 Ethernet Socket Connections With LEDs TM5JB823T1111
CAT5 Internet Cable Rj45 Ethernet Socket Connections With LEDs TM5JB823T1111 CAT5 Internet Cable Rj45 Ethernet Socket Connections With LEDs TM5JB823T1111 CAT5 Internet Cable Rj45 Ethernet Socket Connections With LEDs TM5JB823T1111 CAT5 Internet Cable Rj45 Ethernet Socket Connections With LEDs TM5JB823T1111
Contact Now

CAT5 Internet Cable Rj45 Ethernet Socket Connections With LEDs TM5JB823T1111

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM5JB823T1111

Detail Information
LENGTH: 31.23 Mm HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD FU'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: YES NUMBER OF PORTS: 2X3
NUMBER OF CONTACTS: 8 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: YES
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 1pcs
Package: 35pcs/tray,875pcs/carton Delivery Time: 20 Days
Supply Ability: 5KK/year
High Light:

rj45 ethernet socket

,

cat5 rj45 jack

Product Description

CAT5 internet cable rj45 socket connections with LEDs TM5JB823T1111






RJ45 Without Transformer (TM5JB823T1111) Attributes:



Model: TM5JB823T1111
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Dual Layer Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: left yellow/right green
Shielded EMI Tabs: YES
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 30pcs/tray
Delivery Time:

20 Days


Supply Ability: 5KK/year



Materials:



Housing:PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Dual Layer Connector
2 x 3 Port / Six ports
Connector Length: 31.23 mm
Connector Width: 49.45 mm
Connector Height: 27.25 mm
Termimal Solder Pin Length: 3.0 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED left yellow/right green, let know the connection status
With Shield,can be customized as required
We Support Custom service as required





RJ45 Female Connector (TM5JB823T1111) Mechnical Drawing:











Tag:

rj45 8p8c jack

rj45 modular socket

shielded rj45 jack
