Home ProductsRJ45 Female ConnectorCat3 Cat5 Rj45 Dual Connector Shielded Magnetics Stack Jack Tm59b824t2x12
Cat3 Cat5 Rj45 Dual Connector Shielded Magnetics Stack Jack Tm59b824t2x12
Cat3 Cat5 Rj45 Dual Connector Shielded Magnetics Stack Jack Tm59b824t2x12 Cat3 Cat5 Rj45 Dual Connector Shielded Magnetics Stack Jack Tm59b824t2x12 Cat3 Cat5 Rj45 Dual Connector Shielded Magnetics Stack Jack Tm59b824t2x12 Cat3 Cat5 Rj45 Dual Connector Shielded Magnetics Stack Jack Tm59b824t2x12
Contact Now

Cat3 Cat5 Rj45 Dual Connector Shielded Magnetics Stack Jack Tm59b824t2x12

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM59B824T2X12

Detail Information
LENGTH: 28.24 Mm HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD FU'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: NO NUMBER OF PORTS: 2X4
NUMBER OF CONTACTS: 8 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: YES
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 1pcs
Package: 35pcs/tray,875pcs/carton Delivery Time: 20 Days
Supply Ability: 5KK/year
High Light:

female ethernet jack

,

cat5 rj45 jack

,

RJ45 Shielded Magnetics Stack Jack

Product Description

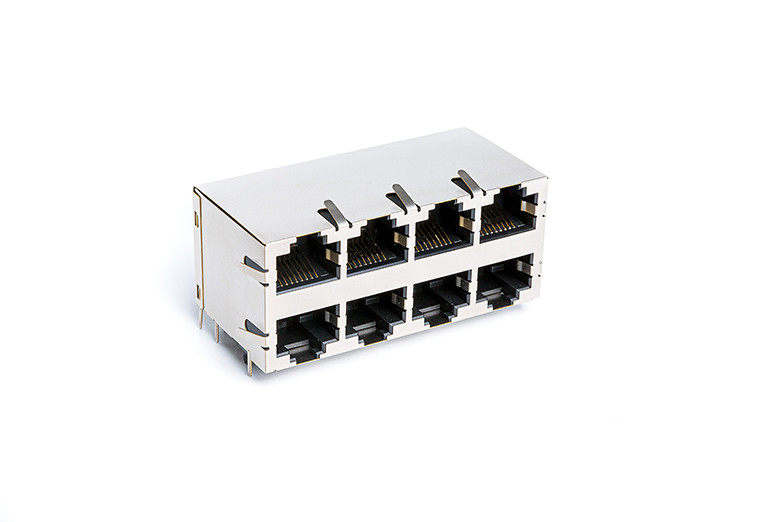

CAT3/CAT5 Shielded Magnetics Dual Port Rj45 Connector STACK JACK For Network Switch TM59B824T2X12






RJ45 Without Transformer (TM59B824T2X12) Attributes:

Model: TM59B824T2X12
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Dual Layer Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: YES
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 40pcs/tray,1000pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year

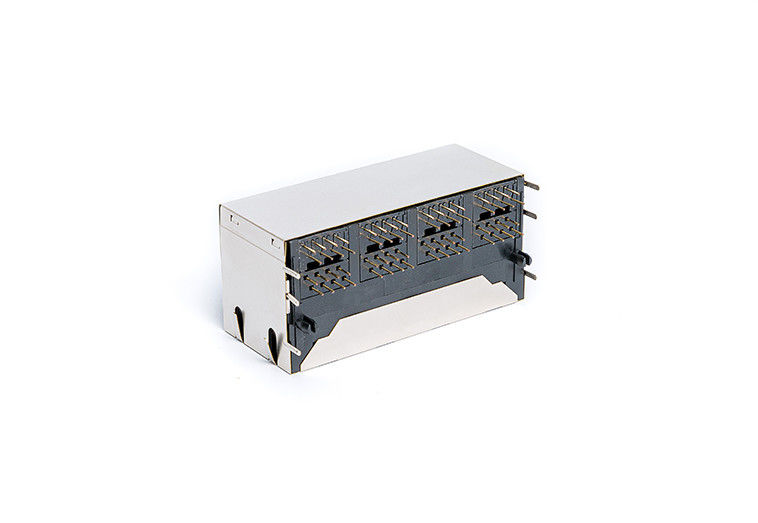

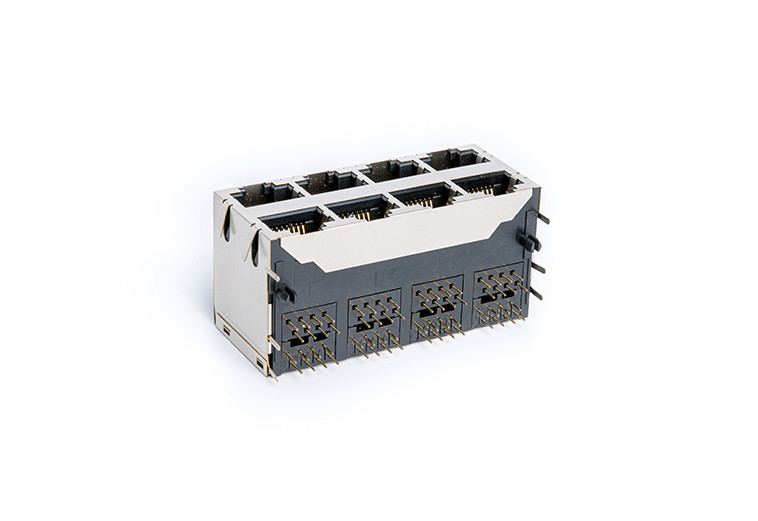

RJ45 Female Connector (TM59B824T2X12) Mechnical Drawing:

Cat3 Cat5 Rj45 Dual Connector Shielded Magnetics Stack Jack Tm59b824t2x12 0

Cat3 Cat5 Rj45 Dual Connector Shielded Magnetics Stack Jack Tm59b824t2x12 1Cat3 Cat5 Rj45 Dual Connector Shielded Magnetics Stack Jack Tm59b824t2x12 2

Materials:


Housing:PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Dual Layer Connector
2 x 4 Port / Eight port
Connector Length: 28.24 mm
Connector Width: 59.20 mm
Connector Height: 25.3 mm
Termimal Solder Pin Length: 3.20 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
