1X1 10/100Base-Tx RJ45 Single Port / RJ45 Ethernet Jack Without LEDs TM111B03HX1
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 500 piece | Price : | Supportive |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 3 work days |
| Payment Terms : | T/T, Western Union, ,Paypal | Supply Ability : | 100kpcs /day |
| Place of Origin: | Guangdong of China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TM5JC824SX111 |
|
Detail Information |
|||
| LENGTH: | 27.65 Mm | HOUSING MATERIAL: | PBT UL94V-0 |
|---|---|---|---|
| CONTACT MATING AREA PLATING: | GOLD FU'' PLATING | CONNECTOR TYPE: | BLACK |
| LED OPTION: | YES | NUMBER OF PORTS: | 2X4 |
| NUMBER OF CONTACTS: | 8 | GROUNDING OPTIONS: | Panel Ground And PCB Ground |
| SHIELD PLATING MATERIAL: | NICKEL | SHIELD EMI TABS: | NO |
| SHIELD: | NO | ROHS COMPLIANT: | YES |
| PANEL STOP: | YES | PCB MOUNT ANGLE: | SIDE ENTRY |
| PACKAGE: | DIP | CONNECTOR & CONTACT TERMINAATES TO: | Printed Circuit Board |
| LATCH ORIENTATION: | LATCH DOWN | Voltage Rating: | 125 V |
| Current Rating: | 1.5 A | Contact Resistance: | 30mΩ |
| Insulation Resistance: | 500 MΩ MIN @ 500V DC | Dielectric Resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN | Minimal Order: | 1pcs |
| Package: | 10pcs/tray,500pcs/carton | Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year | ||
| Highlight: | female ethernet jack,cat5 rj45 jack,Unshielded RJ45 Dual Connector Black Color |
||
Product Description

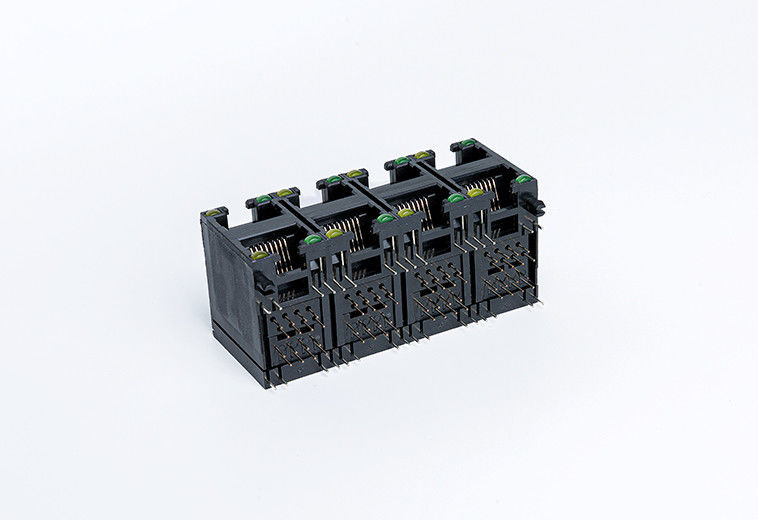

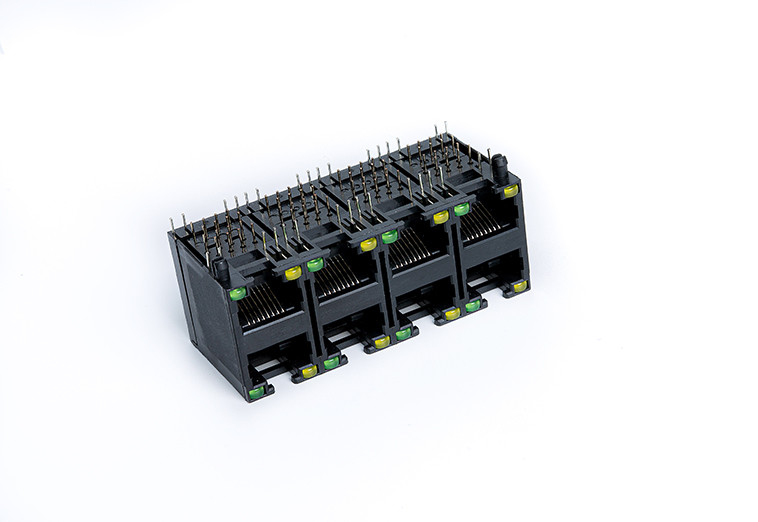

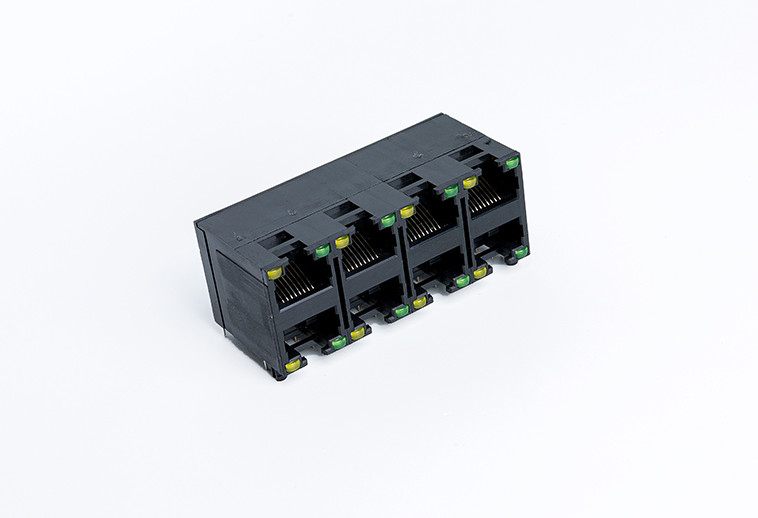

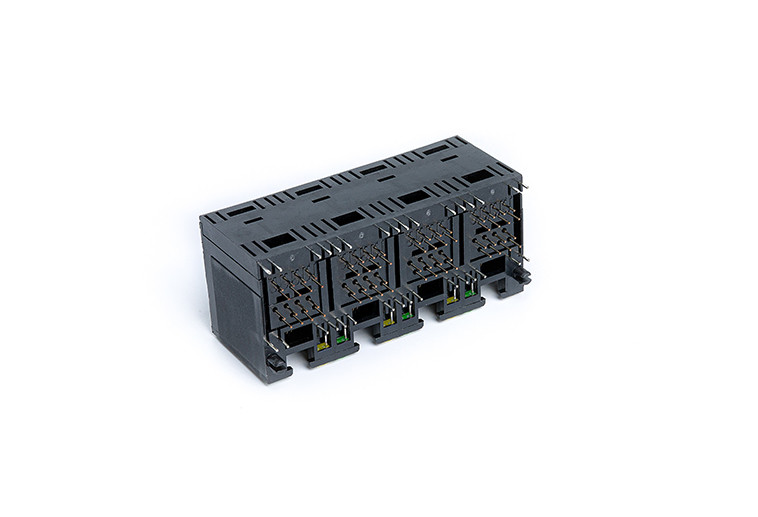

Black color Unshielded 2X4 dual rj45 Connector For Network Switch without transformer TM5JC824SX111
Materials:
Housing:PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Product Structure:
RJ45 Dual Layer Connector
2 x 4 Port / eight port
Connector Length: 27.65 mm
Connector Width: 63.2 mm
Connector Height: 24.88 mm
Termimal Solder Pin Length: 3.3 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED left yellow/right green, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required
RJ45 Without Transformer (TM5JC824SX111) Attributes:
| Model: | TM5JC824SX111 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Dual Layer Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 8 |
| Terminals per Port: | 8 |
| LED Option: | left yellow/right green |
| Shielded EMI Tabs: | NO |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Package: | 10pcs/tray,500pcs/carton |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |
RJ45 Female Connector (TM5JC824SX111) Mechnical Drawing:
