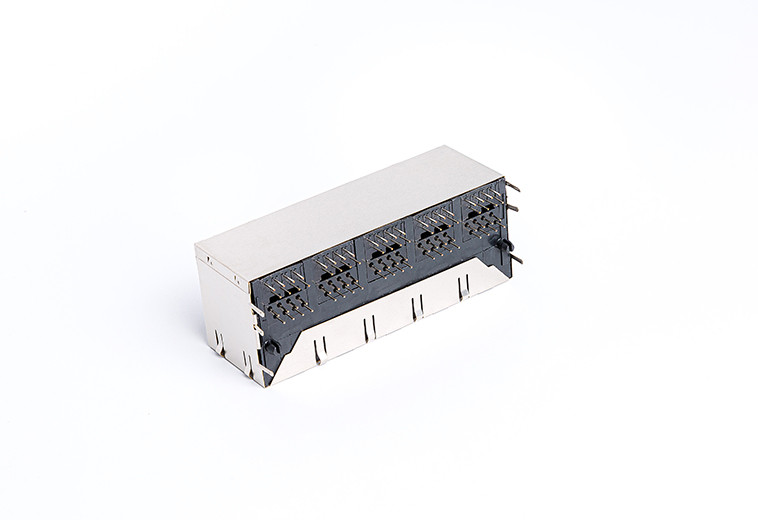

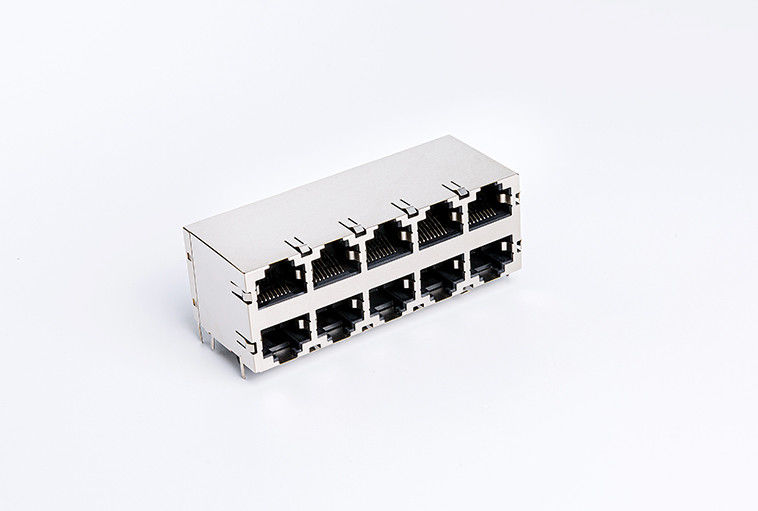

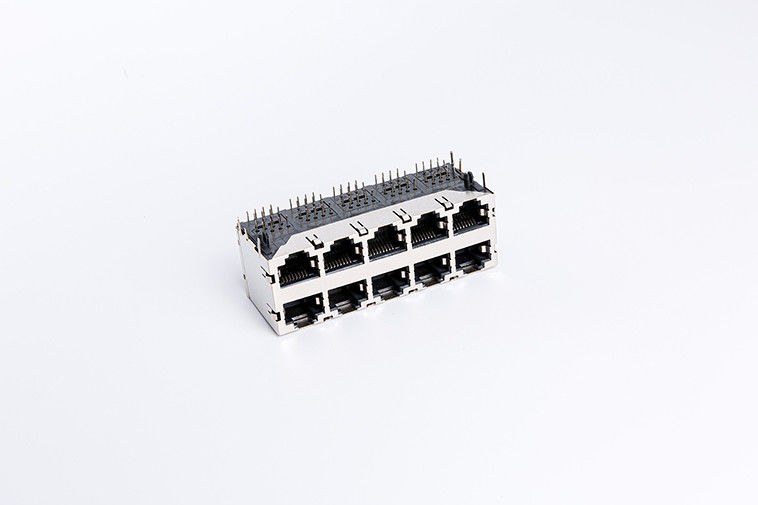

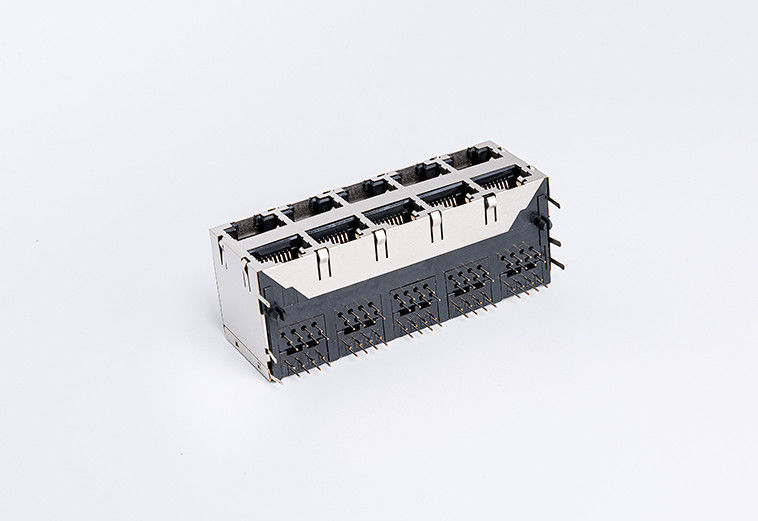

2X5 Network Switch Shielded Rj45 Jack With Internal Magnetics TM59B825T1X11
2X5 Network Switch Shielded Rj45 Jack With Internal Magnetics TM59B825T1X11 2X5 Network Switch Shielded Rj45 Jack With Internal Magnetics TM59B825T1X11 2X5 Network Switch Shielded Rj45 Jack With Internal Magnetics TM59B825T1X11 2X5 Network Switch Shielded Rj45 Jack With Internal Magnetics TM59B825T1X11
Contact Now

2X5 Network Switch Shielded Rj45 Jack With Internal Magnetics TM59B825T1X11

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM59B825T1X11

Detail Information
LENGTH: 28.2 Mm HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD FU'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: NO NUMBER OF PORTS: 2X5
NUMBER OF CONTACTS: 8 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: YES
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 1pcs
Package: 40pcs/tray,1000pcs/carton Delivery Time: 20 Days
Supply Ability: 5KK/year
High Light:

rj45 ethernet socket

,

cat5 rj45 jack

,

2X5 Network Switch Shielded RJ45 Jack

Product Description

Black color Unshielded 2X4 dual rj45 Connector For Network Switch without transformer TM5JC824SX111







RJ45 Without Transformer (TM59B825T1X11) Attributes:

Model: TM59B825T1X11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Dual Layer Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: YES
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 40pcs/tray,1000pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM59B825T1X11) Mechnical Drawing:

2X5 Network Switch Shielded Rj45 Jack With Internal Magnetics TM59B825T1X11 02X5 Network Switch Shielded Rj45 Jack With Internal Magnetics TM59B825T1X11 1

Materials:



Housing:PBT,UL94V-0 ( RoHS )

Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel

Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all

All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:



RJ45 Dual Layer Connector

2 x 5 Port / Ten Ports

Connector Length: 28.2 mm

Connector Width: 73.17 mm

Connector Height: 25.25 mm

Termimal Solder Pin Length: 3.4 mm

8P8C ( 8 positions 8 contacts )

90°Orientation

Without LED, let know the connection status

With Shield,can be customized as required

We Support Custom service as required
