Home ProductsRJ45 Female Connector10/100BASE 2x8 Stacked RJ45 Modular Jacks Double Decks Lan Socket TM59B828T1X11
10/100BASE 2x8 Stacked RJ45 Modular Jacks Double Decks Lan Socket TM59B828T1X11
10/100BASE 2x8 Stacked RJ45 Modular Jacks Double Decks Lan Socket TM59B828T1X11 10/100BASE 2x8 Stacked RJ45 Modular Jacks Double Decks Lan Socket TM59B828T1X11 10/100BASE 2x8 Stacked RJ45 Modular Jacks Double Decks Lan Socket TM59B828T1X11 10/100BASE 2x8 Stacked RJ45 Modular Jacks Double Decks Lan Socket TM59B828T1X11
Contact Now

10/100BASE 2x8 Stacked RJ45 Modular Jacks Double Decks Lan Socket TM59B828T1X11

Minimum Order Quantity : 1piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM59B828T1X11

Detail Information
LENGTH: 28.2 Mm HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD FU'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: NO NUMBER OF PORTS: 2X8
NUMBER OF CONTACTS: 8 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: YES
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 1pcs
Package: 5pcs/tray,125pcs/carton Delivery Time: 20 Days
Supply Ability: 5KK/year
High Light:

rj45 ethernet socket

,

female ethernet jack

,

2x8 Stacked RJ45 Modular Jacks

Product Description

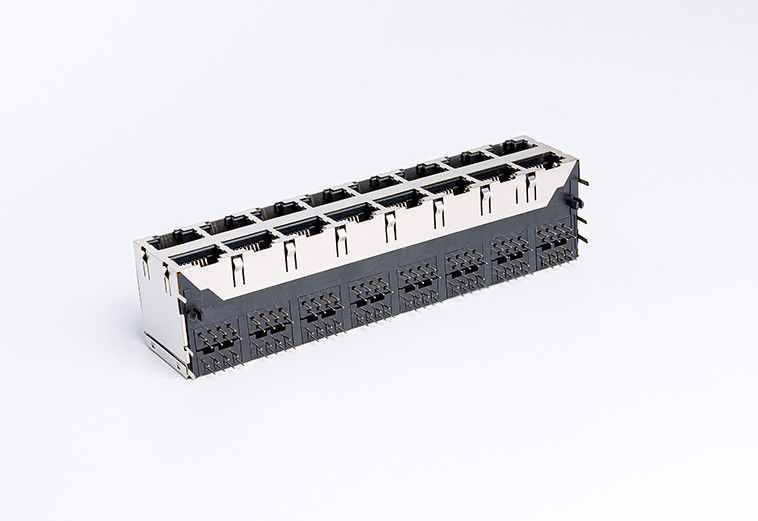

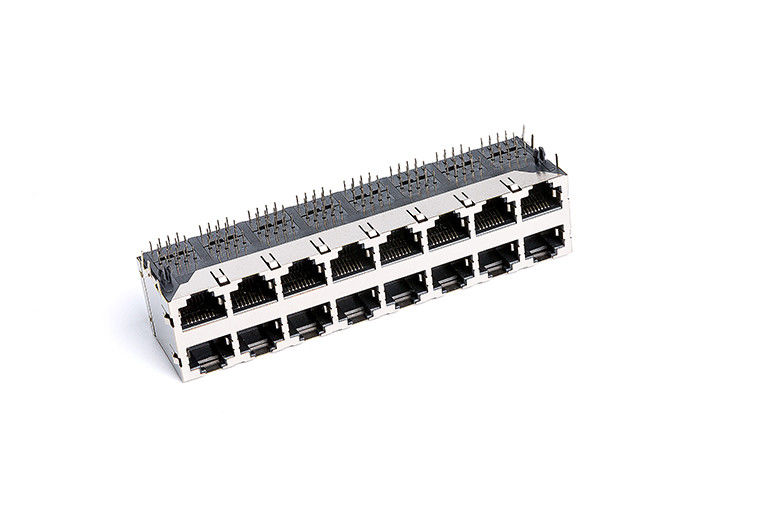

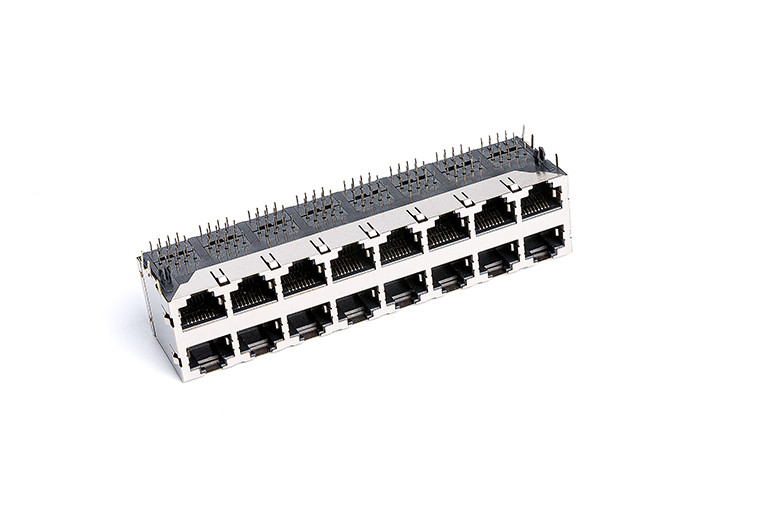

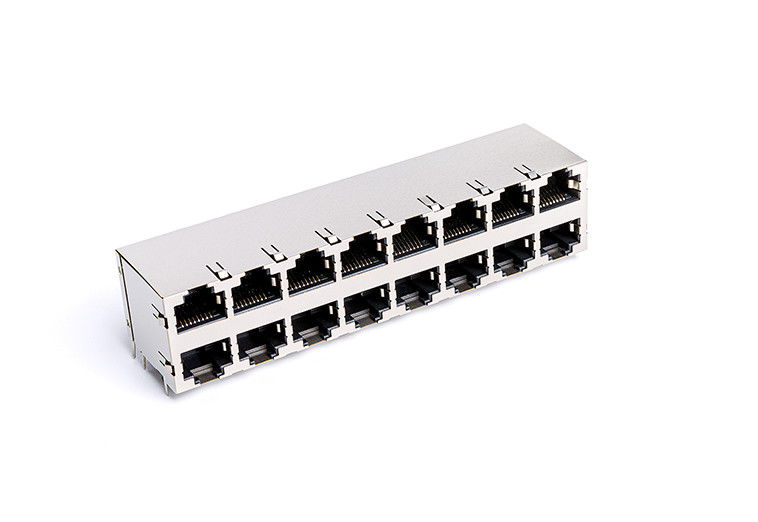

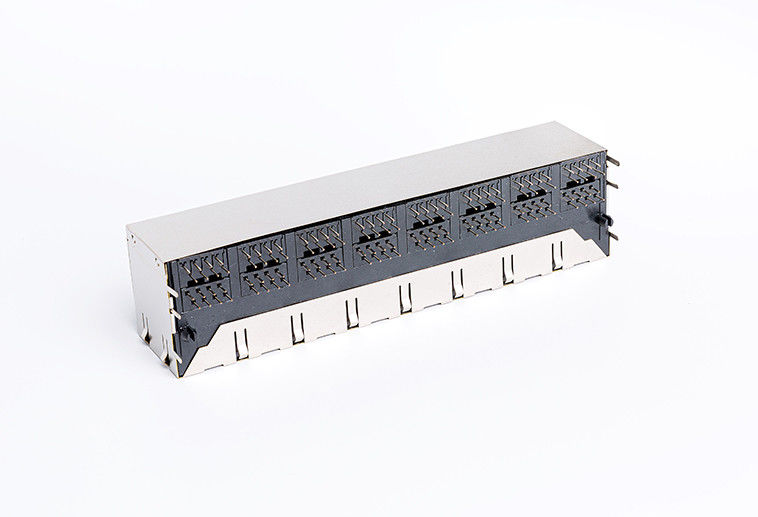

10/100BASE 2x8 Stacked RJ45 Modular Jacks double decks lan socket without transformer TM59B828T1X11






RJ45 Without Transformer (TM59B828T1X11) Attributes:

Model: TM59B828T1X11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Dual Layer Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: YES
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 5pcs/tray,125pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM59B828T1X11) Mechnical Drawing:

10/100BASE 2x8 Stacked RJ45 Modular Jacks Double Decks Lan Socket TM59B828T1X11 010/100BASE 2x8 Stacked RJ45 Modular Jacks Double Decks Lan Socket TM59B828T1X11 1

Materials:



Housing:PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:
RJ45 Dual Layer Connector
2 x 8 Port / sixteen port
Connector Length: 28.20 mm
Connector Width: 115.08 mm
Connector Height: 25.28 mm
Termimal Solder Pin Length: 3.40 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
