Tab UP RJ45 PCB Connector / RJ45 Modular Jack EMI-Finger TM5JE811T2216

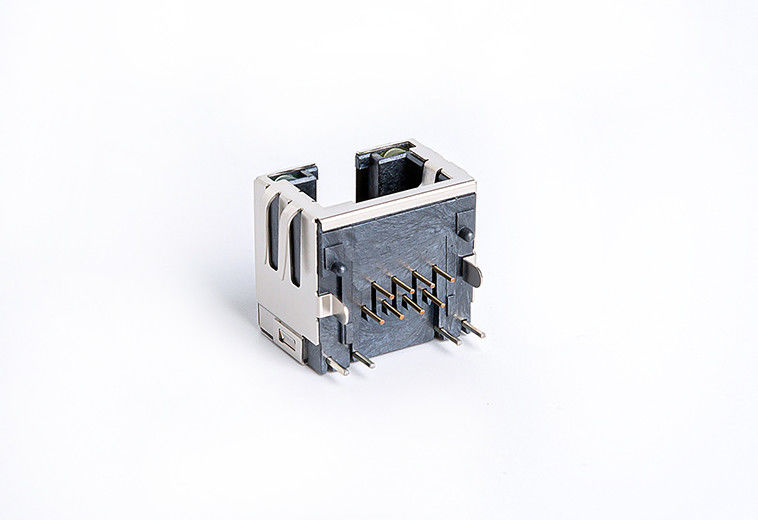

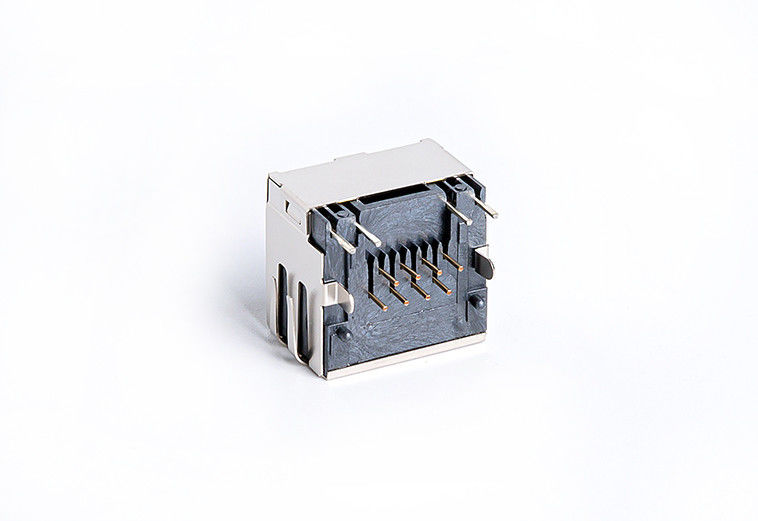

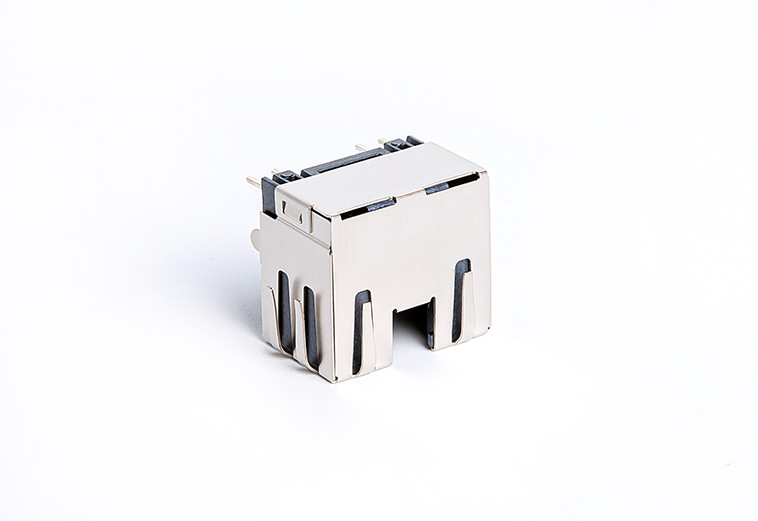

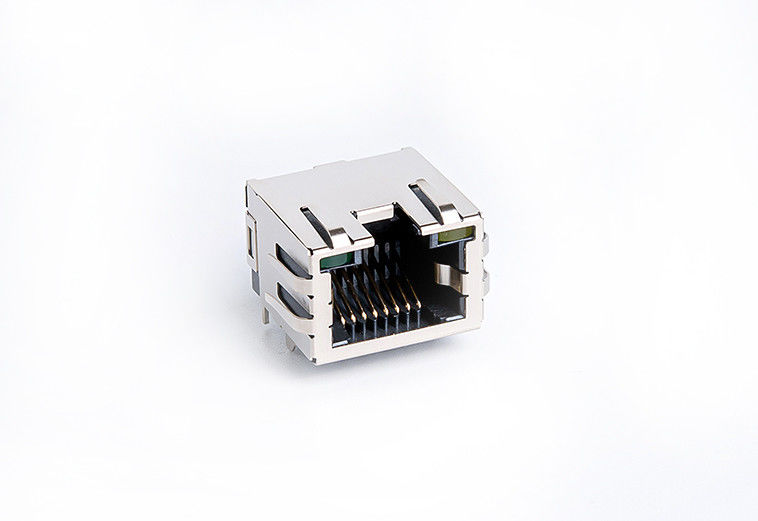

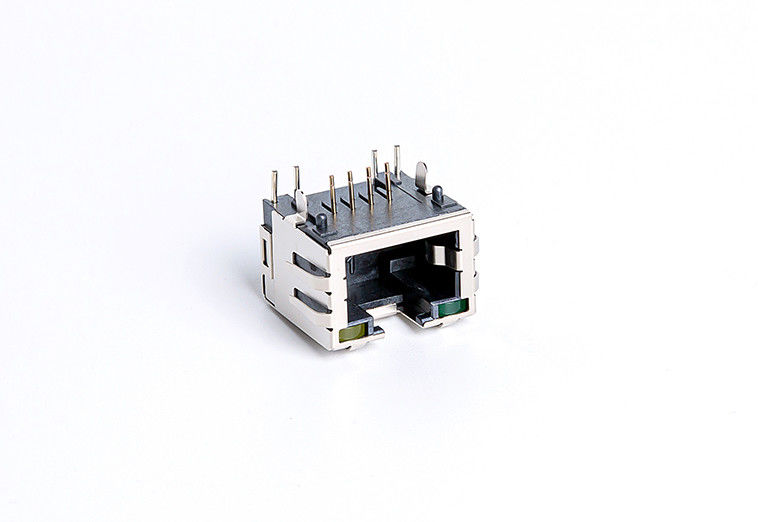

Tab UP RJ45 PCB Connector / RJ45 Modular Jack EMI-Finger TM5JE811T2216 Tab UP RJ45 PCB Connector / RJ45 Modular Jack EMI-Finger TM5JE811T2216 Tab UP RJ45 PCB Connector / RJ45 Modular Jack EMI-Finger TM5JE811T2216 Tab UP RJ45 PCB Connector / RJ45 Modular Jack EMI-Finger TM5JE811T2216 Tab UP RJ45 PCB Connector / RJ45 Modular Jack EMI-Finger TM5JE811T2216
Contact Now

Tab UP RJ45 PCB Connector / RJ45 Modular Jack EMI-Finger TM5JE811T2216

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 150pcs/tray Delivery Time : 20Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM5JE811T2216

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: LEFT GN,RIGHT YE Shielded EMI Tabs: YES
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500PCS Package: 150pcs/tray
Keywords: Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket
High Light:

rj45 pcb mount jack

,

rj45 plug pcb mount

,

Modular RJ45 PCB Connector EMI Finger

Product Description

Tab UP RJ45 Modular Jack Shielded With EMI-Finger rj45 pcb jack TM5JE811T2216



Materials:

Housing : LCP,UL94V-0 ( RoHS )
Contact Finish: OD=0.46mm Phosphor Bronze,CONTACT GOLD PLATING Fu” OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 PCB Jack
1 x 1 Port / Single Port / One Port
Latch UP
Connector Length: 15.00 mm
Connector Width: 16.20 mm
Connector Height: 11.30 mm
Termimal Solder Pin Length: 2.5 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED,left green/right yellow, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM5JE811T2216) Attributes:

Model: TM5JE811T2216
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: left green/right yellow
Shielded EMI Tabs: YES
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 150pcs/tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM5JE811T2216) Mechnical Drawing:

Tab UP RJ45 PCB Connector / RJ45 Modular Jack EMI-Finger TM5JE811T2216 0Tab UP RJ45 PCB Connector / RJ45 Modular Jack EMI-Finger TM5JE811T2216 1Tab UP RJ45 PCB Connector / RJ45 Modular Jack EMI-Finger TM5JE811T2216 2Tab UP RJ45 PCB Connector / RJ45 Modular Jack EMI-Finger TM5JE811T2216 3Tab UP RJ45 PCB Connector / RJ45 Modular Jack EMI-Finger TM5JE811T2216 4
