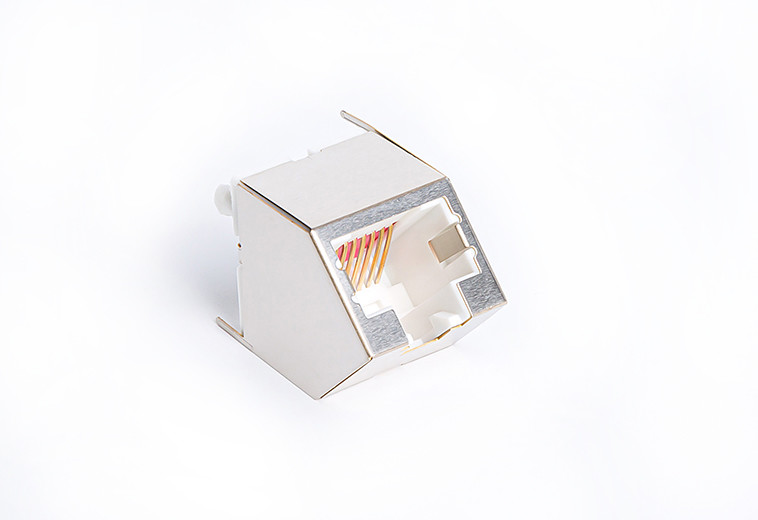

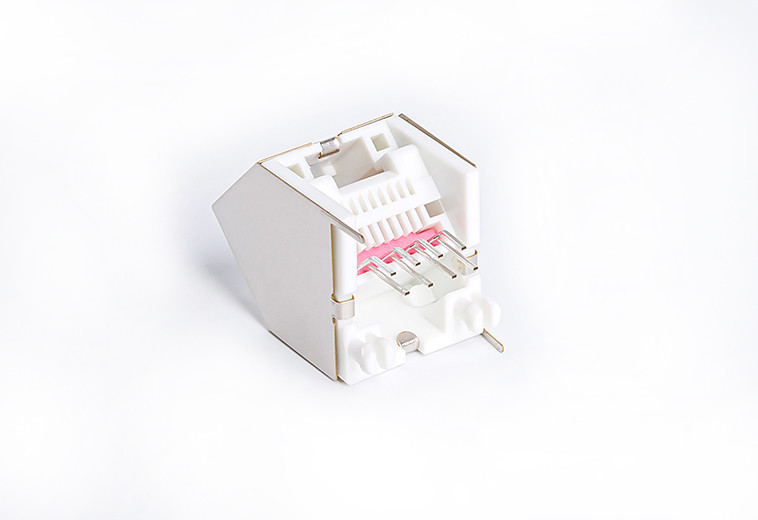

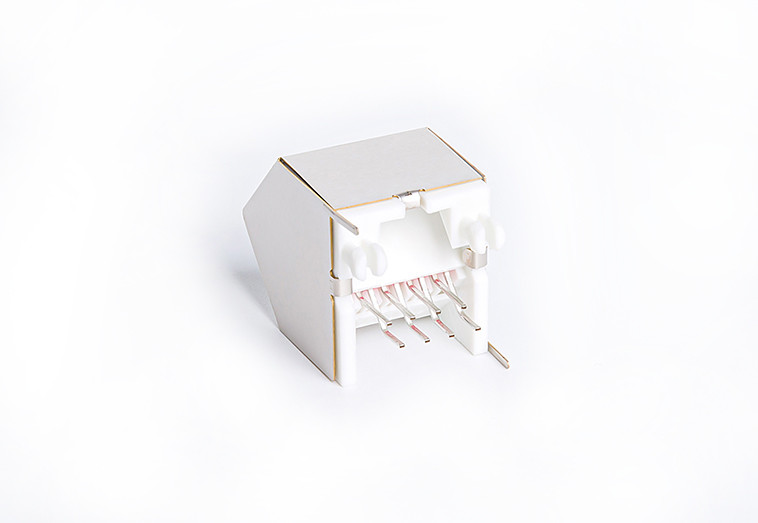

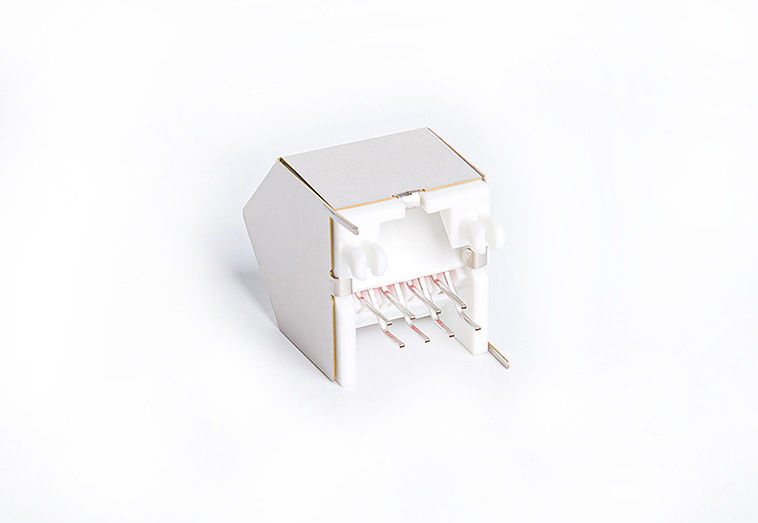

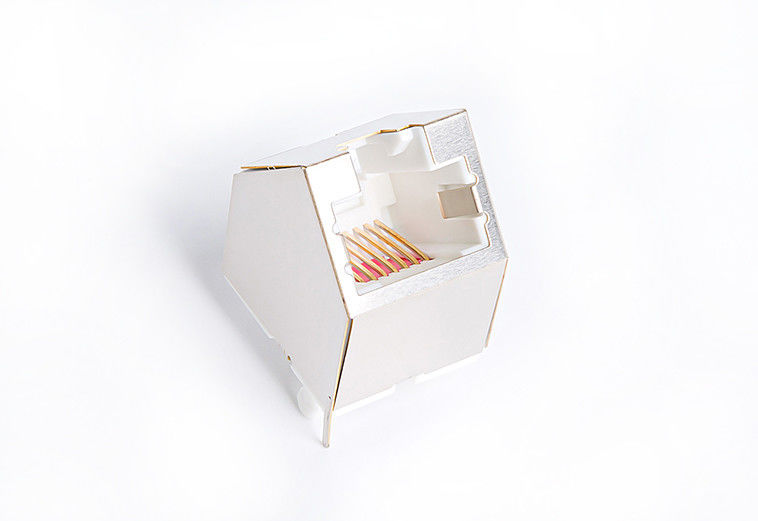

UL94V-0 RJ45 PCB Jack Latch Up 45 ° Orientation 8 Positions TM52C811EXX4W
UL94V-0 RJ45 PCB Jack Latch Up 45 ° Orientation 8 Positions TM52C811EXX4W UL94V-0 RJ45 PCB Jack Latch Up 45 ° Orientation 8 Positions TM52C811EXX4W UL94V-0 RJ45 PCB Jack Latch Up 45 ° Orientation 8 Positions TM52C811EXX4W UL94V-0 RJ45 PCB Jack Latch Up 45 ° Orientation 8 Positions TM52C811EXX4W
Contact Now

UL94V-0 RJ45 PCB Jack Latch Up 45 ° Orientation 8 Positions TM52C811EXX4W

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/tray Delivery Time : 20Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52C811EXX4W

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: NO Shielded EMI Tabs: NO
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500PCS Package: 100pcs/tray
Keywords: Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket
High Light:

rj45 plug pcb mount

,

pcb mount rj45 connector

,

UL94V-0 RJ45 PCB Jack

Product Description

UL94V-0 Single Port Latch Up 45°Orientation 8 positions shield without led TM52C811EXX4W



Materials:

Housing: PBT,White,UL94V-0 ( RoHS )
Housing: PBT,Red,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


1 x 1 Port / Single Port / One Port
Latch Up
Connector Length: 17.60 mm
Connector Width: 15.20 mm
Connector Height: 20.5 mm
Termimal Solder Pin Length: 4.2 mm
8P8C ( 8 positions 8 contacts )
45°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM52C811EXX4W ) Attributes:

Model: TM52C811EXX4W
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 100pcs/tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM52C811EXX4W ) Mechnical Drawing:UL94V-0 RJ45 PCB Jack Latch Up 45 ° Orientation 8 Positions TM52C811EXX4W 0UL94V-0 RJ45 PCB Jack Latch Up 45 ° Orientation 8 Positions TM52C811EXX4W 1UL94V-0 RJ45 PCB Jack Latch Up 45 ° Orientation 8 Positions TM52C811EXX4W 2UL94V-0 RJ45 PCB Jack Latch Up 45 ° Orientation 8 Positions TM52C811EXX4W 3UL94V-0 RJ45 PCB Jack Latch Up 45 ° Orientation 8 Positions TM52C811EXX4W 4
