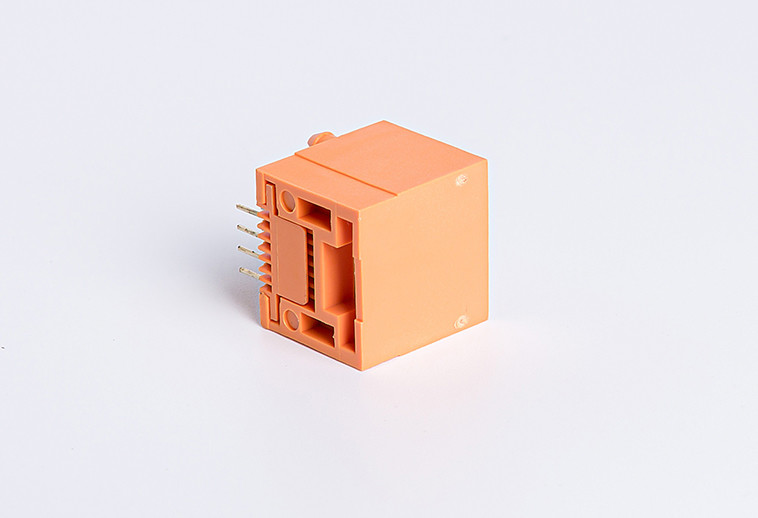

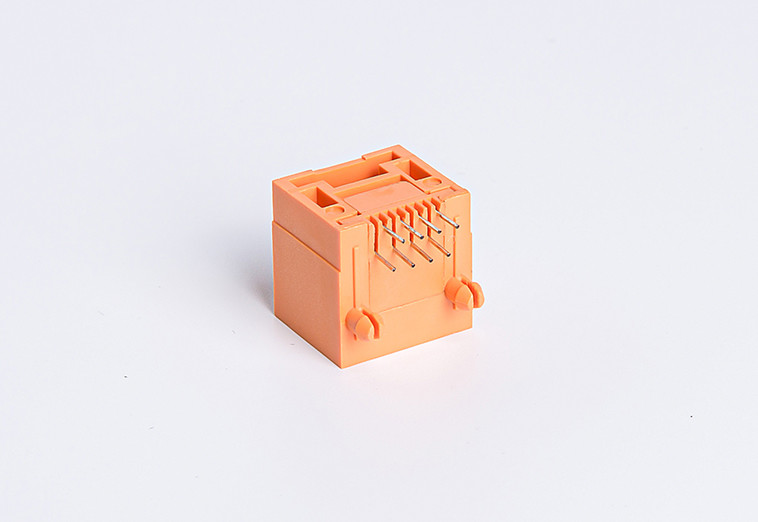

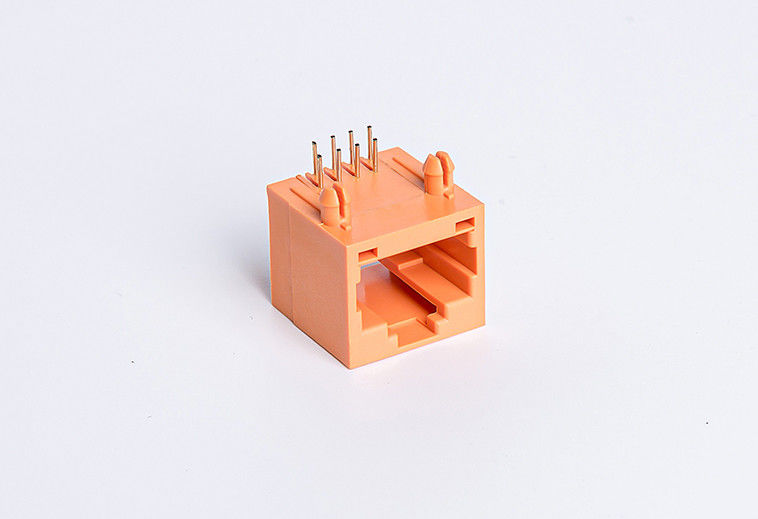

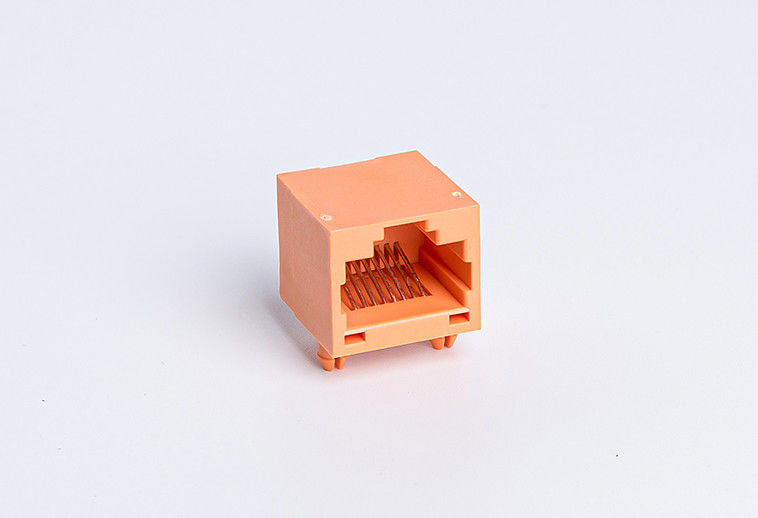

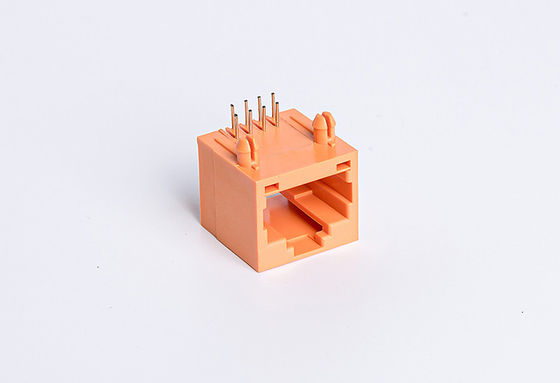

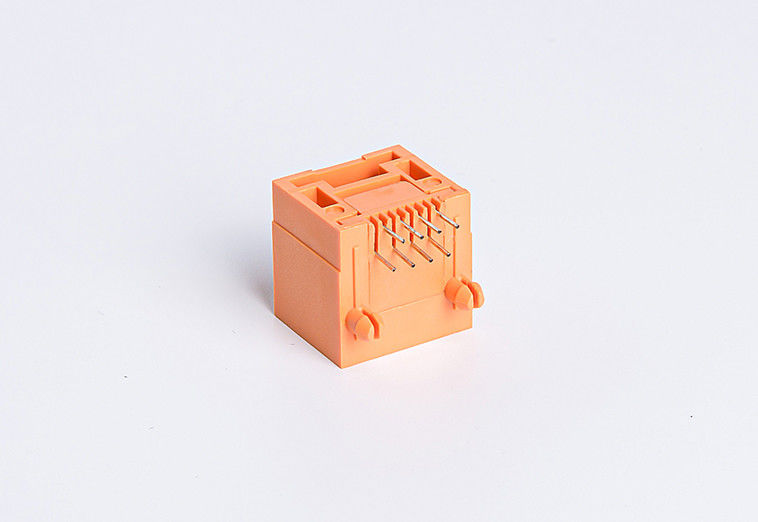

Orange Rj45 Plug Pcb Mount Unshielded Tab Down Single Port 8P8C TM5JF811SXX12
Orange Rj45 Plug Pcb Mount Unshielded Tab Down Single Port 8P8C TM5JF811SXX12 Orange Rj45 Plug Pcb Mount Unshielded Tab Down Single Port 8P8C TM5JF811SXX12 Orange Rj45 Plug Pcb Mount Unshielded Tab Down Single Port 8P8C TM5JF811SXX12 Orange Rj45 Plug Pcb Mount Unshielded Tab Down Single Port 8P8C TM5JF811SXX12
Contact Now

Orange Rj45 Plug Pcb Mount Unshielded Tab Down Single Port 8P8C TM5JF811SXX12

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/tray Delivery Time : 20Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM5JF811SXX12

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: NO Shielded EMI Tabs: NO
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500PCS Package: 100pcs/tray
Keywords: Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket
High Light:

rj45 pcb mount jack

,

pcb mount rj45 connector

Product Description

Orange color Unshielded Tab Down RJ45 Single Port 8P8C Connector TM5JF811SXX12



Materials:



Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: OD=0.46mm Phosphor Bronze,CONTACT GOLD PLATING Fu” OVER NICKEL( RoHS )
Shielding Shell: NO
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


1 x 1 Port / Single Port / One Port
Latch Up
Connector Length: 15.2 mm
Connector Width: 15.2 mm
Connector Height: 13.1 mm
Termimal Solder Pin Length: 3.2 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM5JF811SXX12) Attributes:

Model: TM5JF811SXX12
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 100pcs/tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM5JF811SXX12) Mechnical Drawing:

Orange Rj45 Plug Pcb Mount Unshielded Tab Down Single Port 8P8C TM5JF811SXX12 0Orange Rj45 Plug Pcb Mount Unshielded Tab Down Single Port 8P8C TM5JF811SXX12 1Orange Rj45 Plug Pcb Mount Unshielded Tab Down Single Port 8P8C TM5JF811SXX12 2Orange Rj45 Plug Pcb Mount Unshielded Tab Down Single Port 8P8C TM5JF811SXX12 3Orange Rj45 Plug Pcb Mount Unshielded Tab Down Single Port 8P8C TM5JF811SXX12 4
