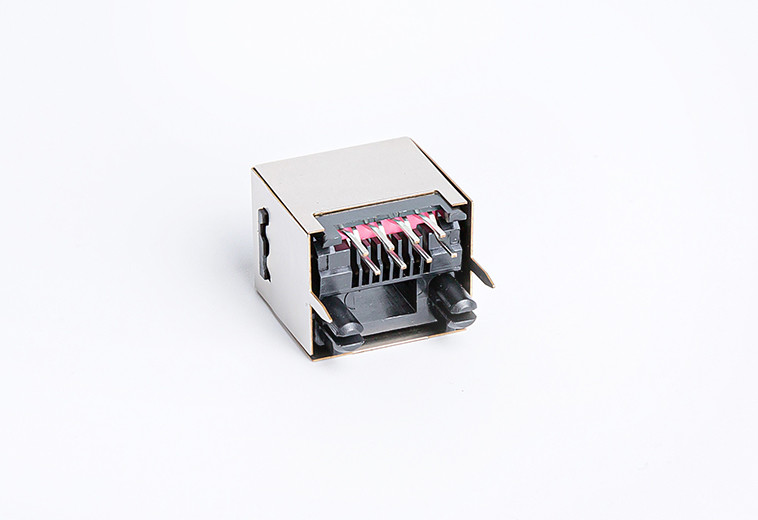

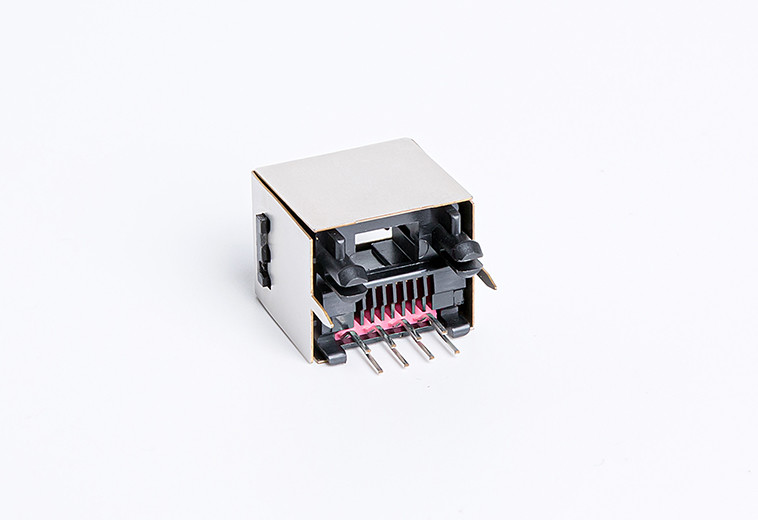

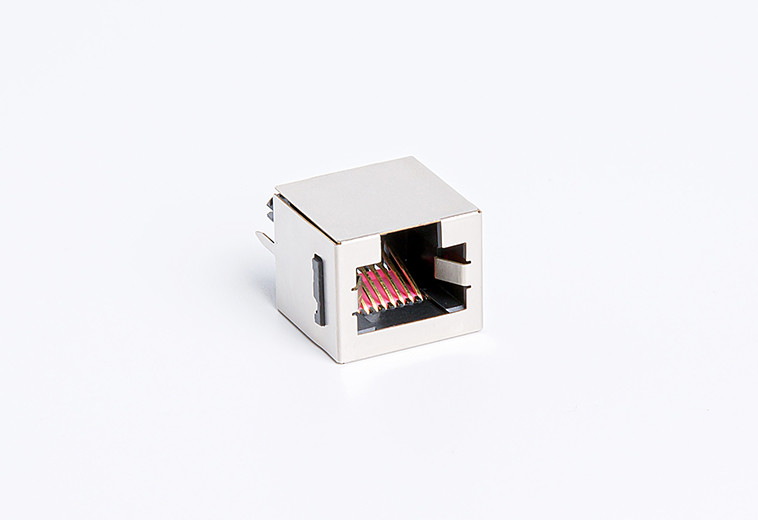

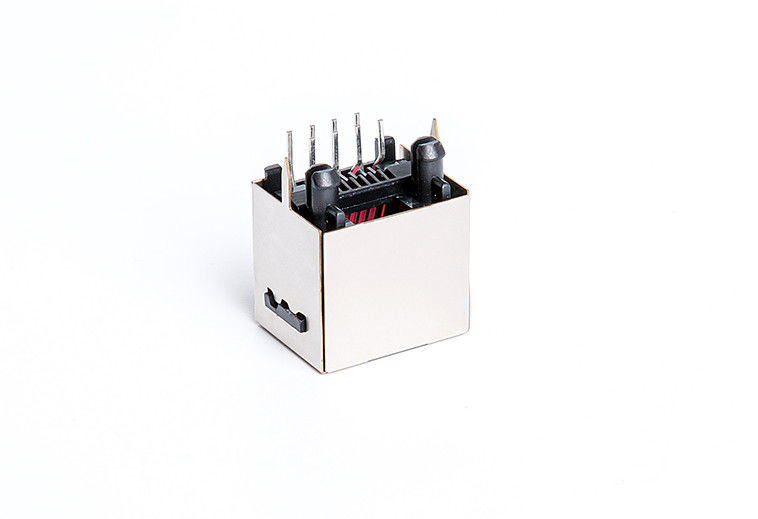

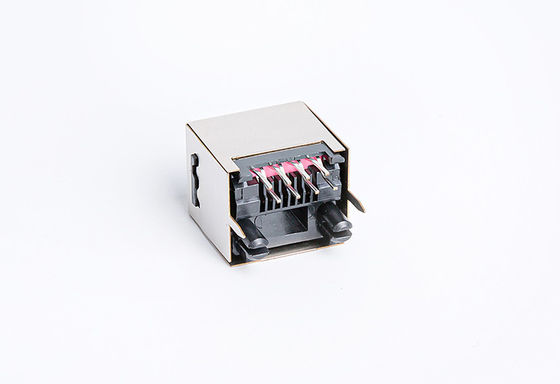

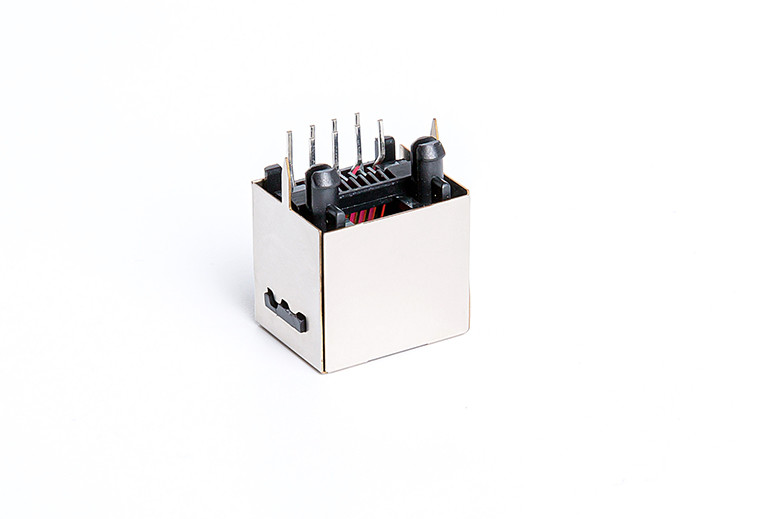

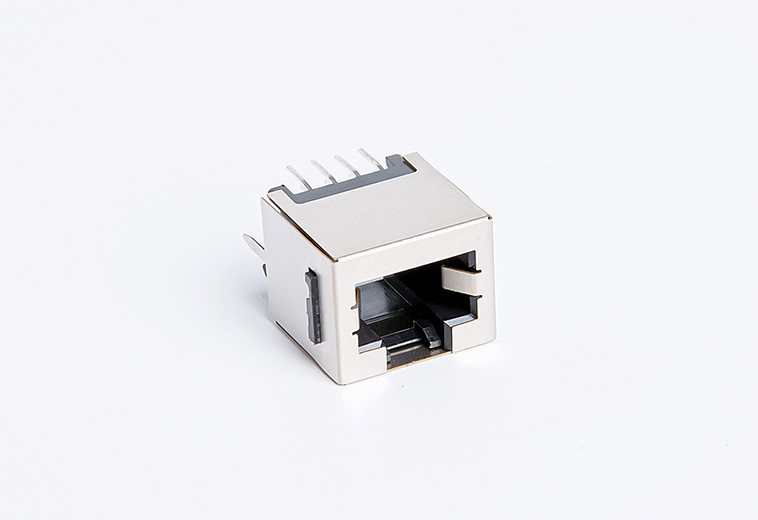

Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43
Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43 Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43 Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43 Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43 Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43
Contact Now

Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52T811EBX43

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 90pcs/tray
High Light:

rj45 pcb mount jack

,

pcb mount rj45 connector

,

Shielded RJ45 PCB Connector Without Magnetic

Product Description

Shield Tab Up 1X1 Port RJ45 Female Connector Without Magnetic connector height 16.30mm TM52T811EBX43



Materials:

Housing : PBT,black,UL94V-0 ( RoHS )

Housing : PBT,red,UL94V-0 ( RoHS )

Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )

Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all

All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:

1 x 1 Port / Single Port / One Port

Connector Length: 16.30 mm

Connector Width: 13.30 mm

Connector Height: 16.30 mm

Termimal Solder Pin Length: 3.25 mm

8P8C ( 8 positions 8 contacts )

180°Orientation

Without LED, let know the connection status

With Shield,can be customized as required

We Support Custom service as required



RJ45 Without Transformer (TM52T811EBX43) Attributes:

Model: TM52T811EBX43
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 90pcs/tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM52T811EBX43) Mechnical Drawing:

Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43 0Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43 1Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43 2Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43 3Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43 4Shielded RJ45 PCB Connector Tab Up 1X1 Port Without Magnetic Height 16.30mm TM52T811EBX43 5
