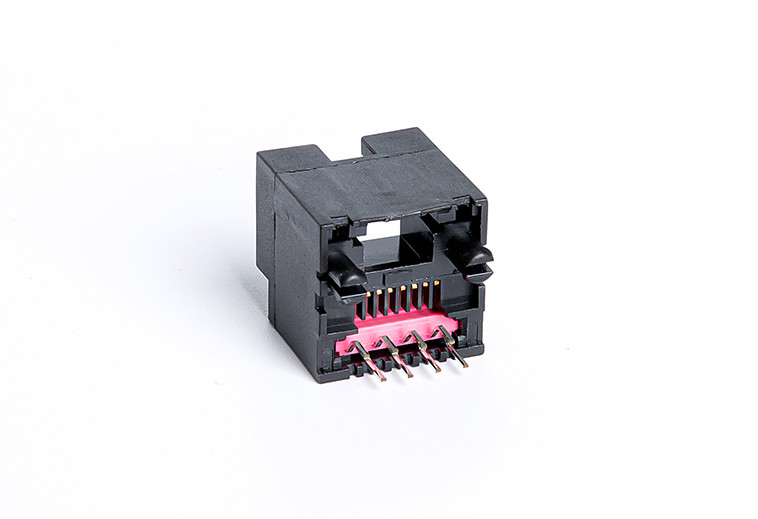

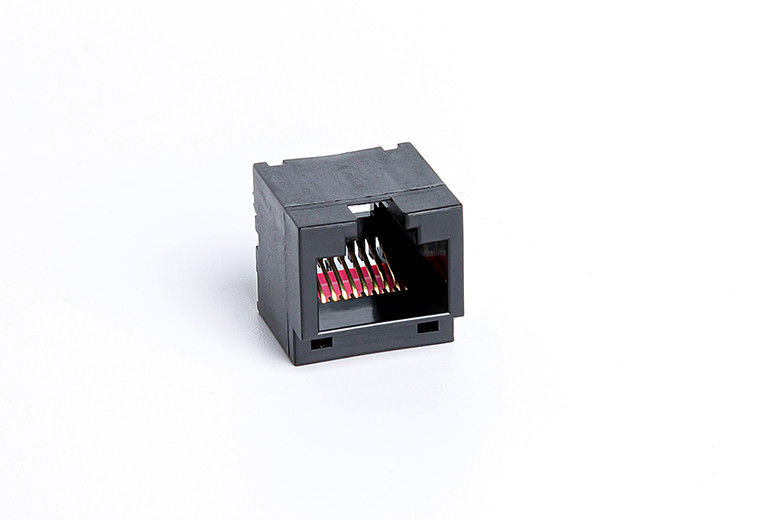

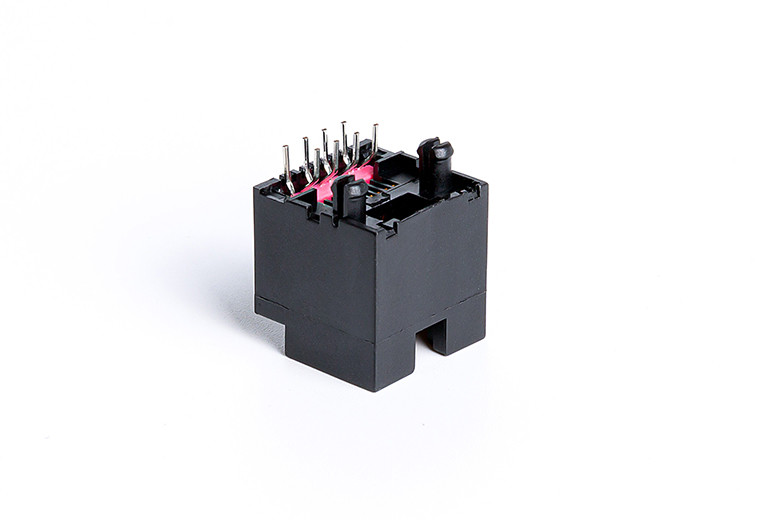

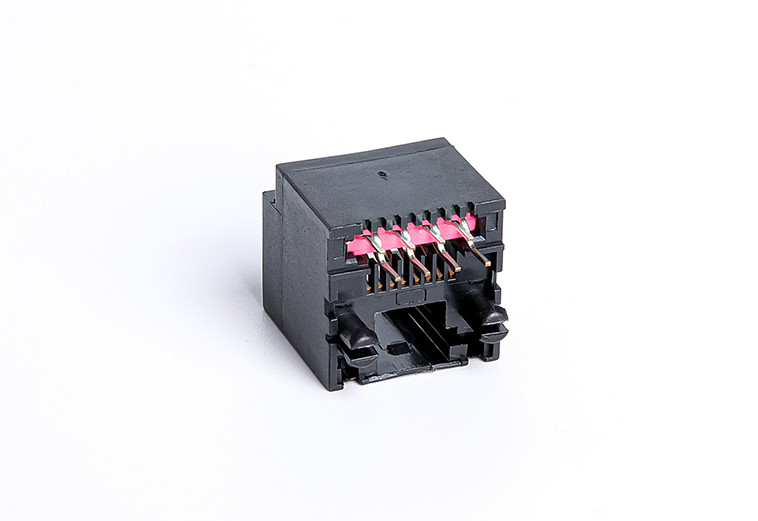

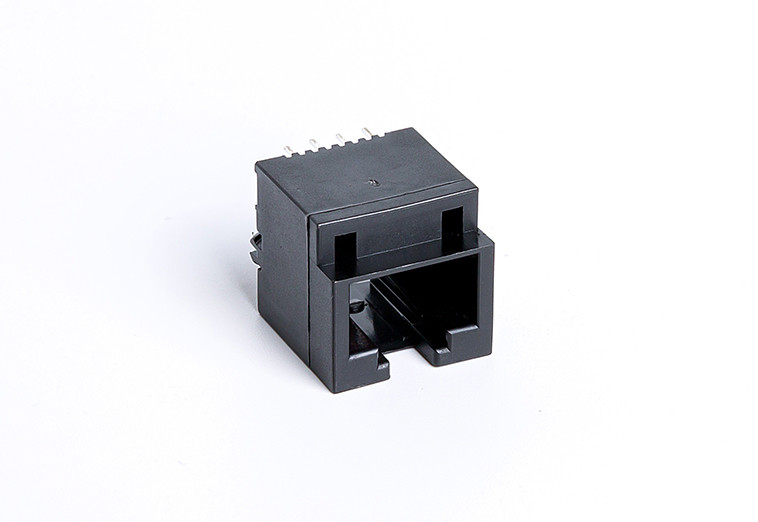

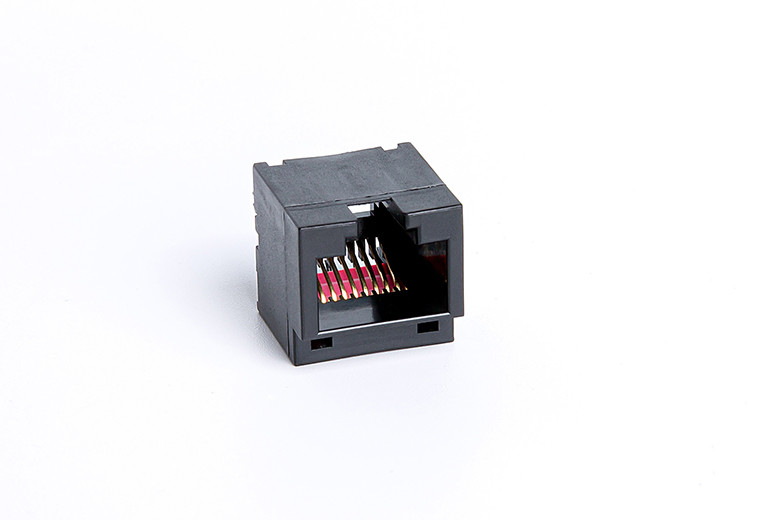

Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43
Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43 Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43 Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43 Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43 Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43
Contact Now

Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52F811SXX43

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 100pcs/tray
High Light:

rj45 plug pcb mount

,

pcb mount rj45 connector

Product Description

Unshielded Tab Down RJ45 Single Port 180° Orientation 8 positions 8 contacts Without Magnetic TM52F811SXX43



Materials:

Housing : PBT,black,UL94V-0 ( RoHS )
Housing : PBT,red,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: No
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Stucture:
1 x 1 Port / Single Port / One Port
Connector Length: 15.00 mm
Connector Width: 15.25 mm
Connector Height: 15.70 mm
Termimal Solder Pin Length: 3.25 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM52F811SXX43) Attributes:

Model: TM52F811SXX43
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 100pcs/tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM52F811SXX43) Mechnical Drawing:

Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43 0Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43 1Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43 2Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43 3Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43 4Unshielded Tab Down RJ45 Single Port 180° Orientation 8 Positions 8 Contacts TM52F811SXX43 5
