Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K
Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K
Contact Now

Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM58D811EX11K

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 90pcs/tray
High Light:

rj45 plug pcb mount

,

pcb mount rj45 connector

,

Vertical 8P8C Magnetic RJ45 Connector

Product Description

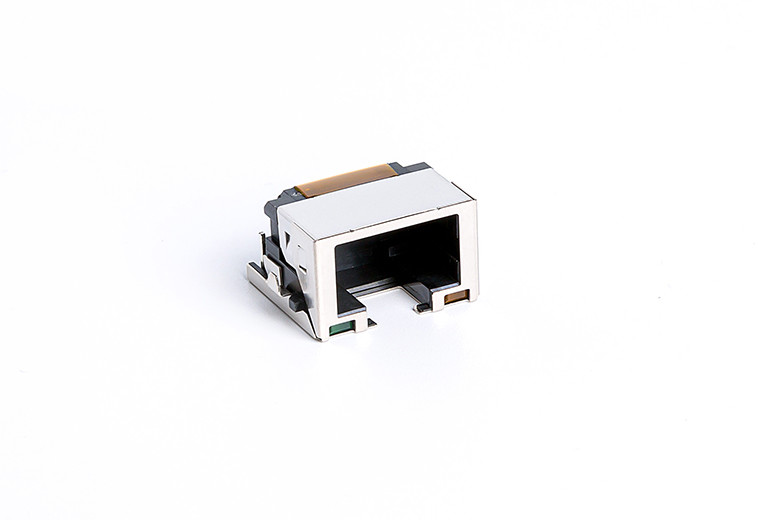

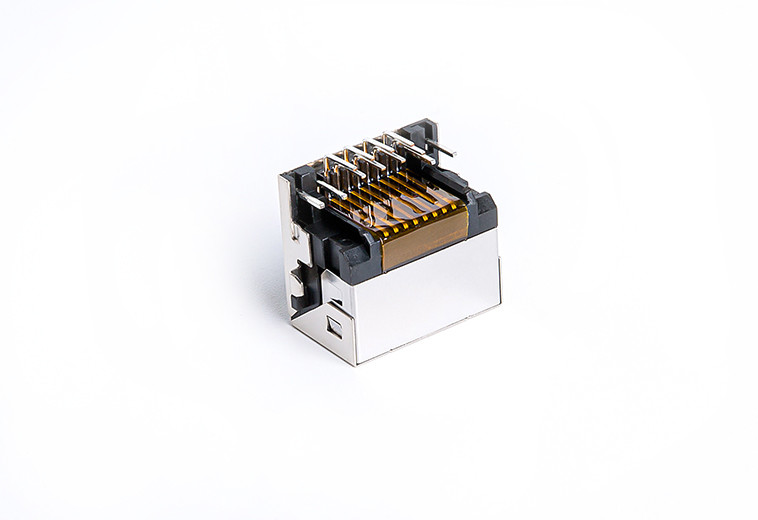

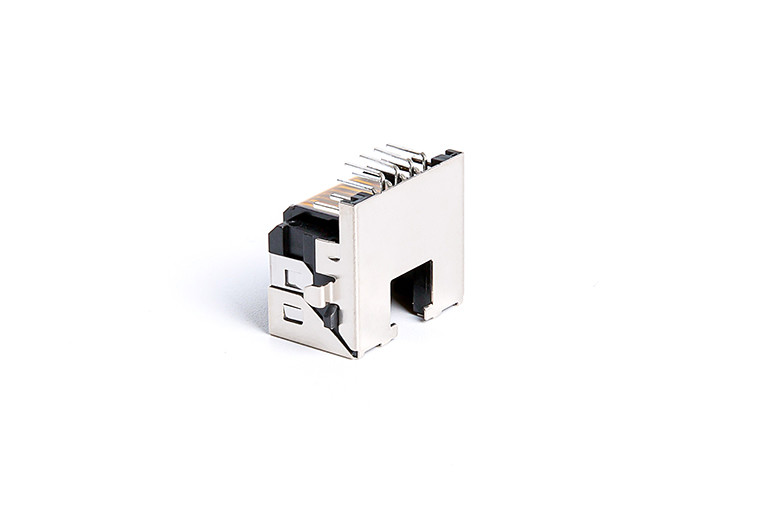

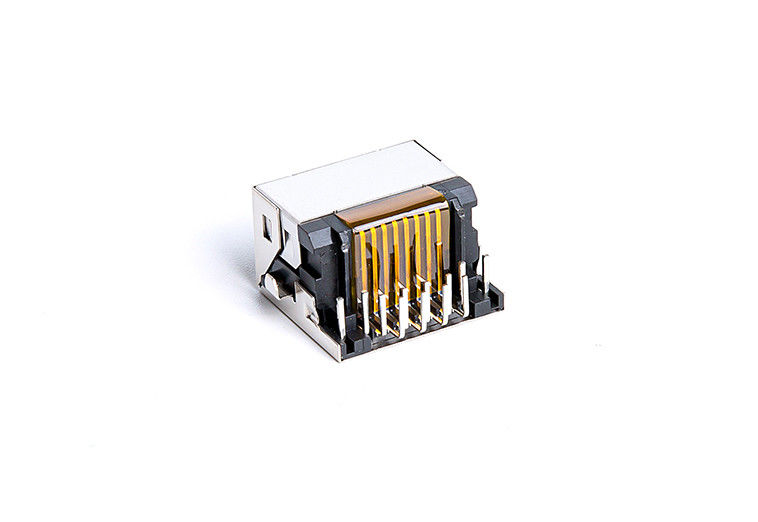

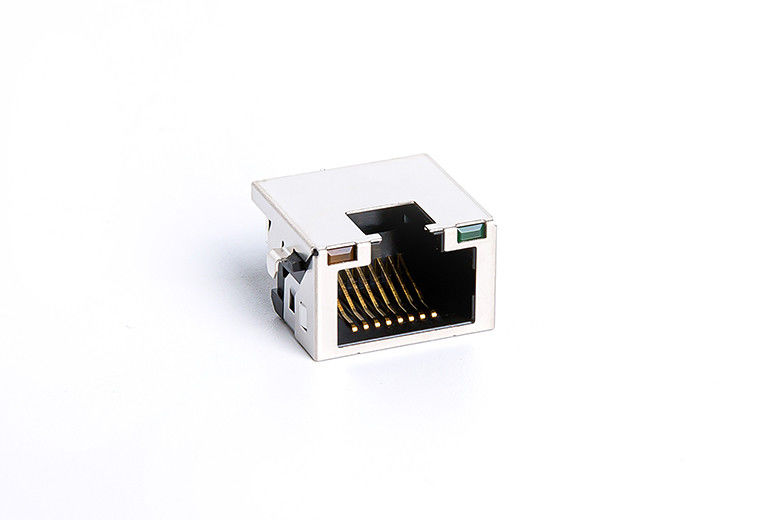

Magnetic Vertical 8P8C RJ45 Female Connector without Integrated Magnetics TM58D811EX11K



Materials:

Housing : LCP,black,UL94V-0 ( RoHS )

Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING Fu”,TAILS PLATING TIN OVER NICKEL( RoHS )

Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all

All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:

1 x 1 Port / Single Port / One Port

Connector Length: 15.46 mm

Connector Width: 17.68 mm

Connector Height: 9.90 mm

Termimal Solder Pin Length: 2.10 mm

8P8C ( 8 positions 8 contacts )

90°Orientation

With LED,Left yellow,right green, let know the connection status

With Shield,can be customized as required

We Support Custom service as required



RJ45 Without Transformer (TM58D811EX11K) Attributes:

Model: TM58D811EX11K
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: Left yellow,right green
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 90pcs/tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM58D811EX11K) Mechnical Drawing:

Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K 0Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K 1Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K 2Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K 3Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K 4Vertical 8P8C Magnetic Rj45 Connector Without Integrated Magnetics TM58D811EX11K 5
