Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115

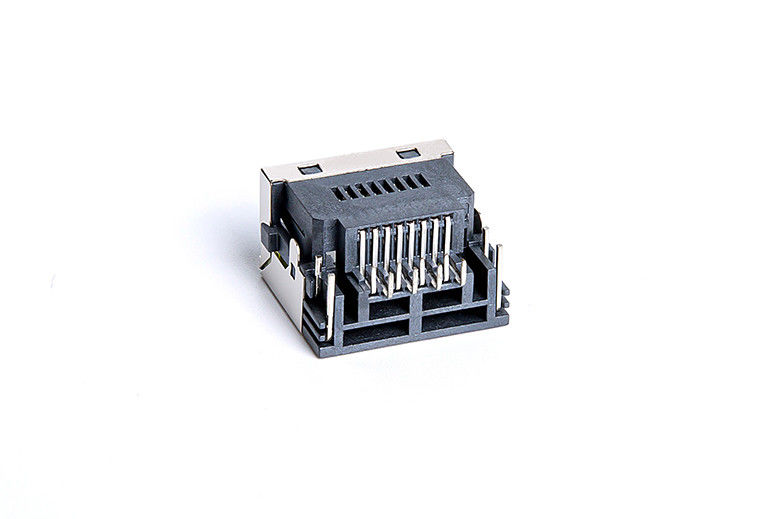

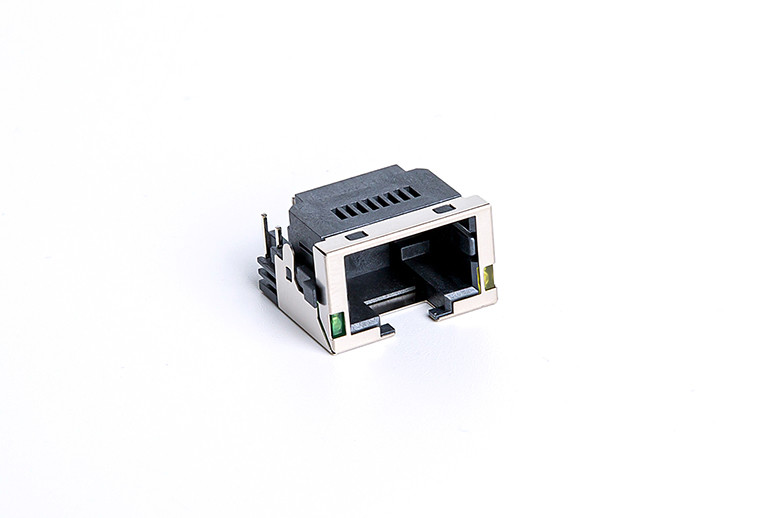

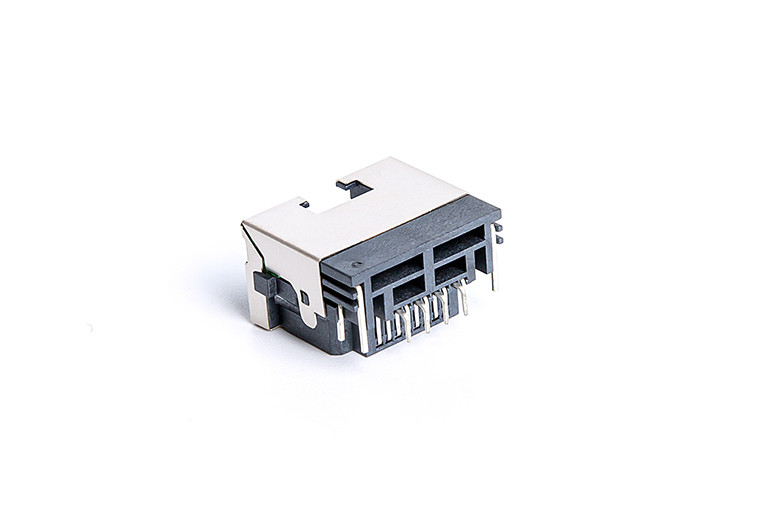

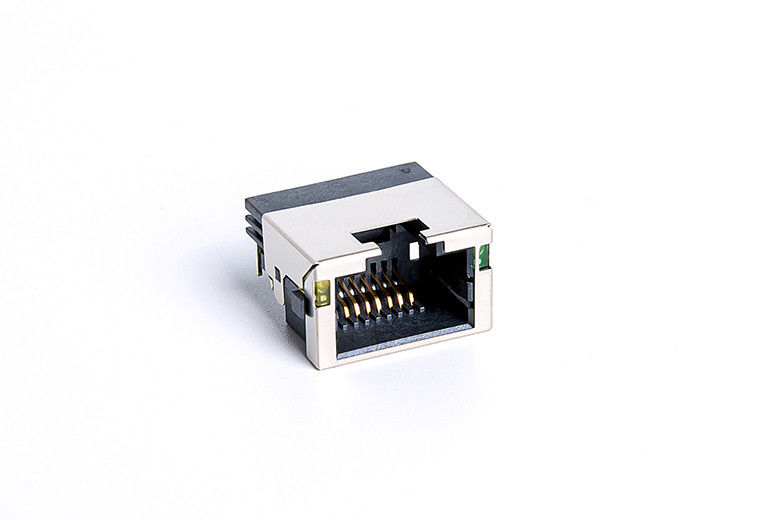

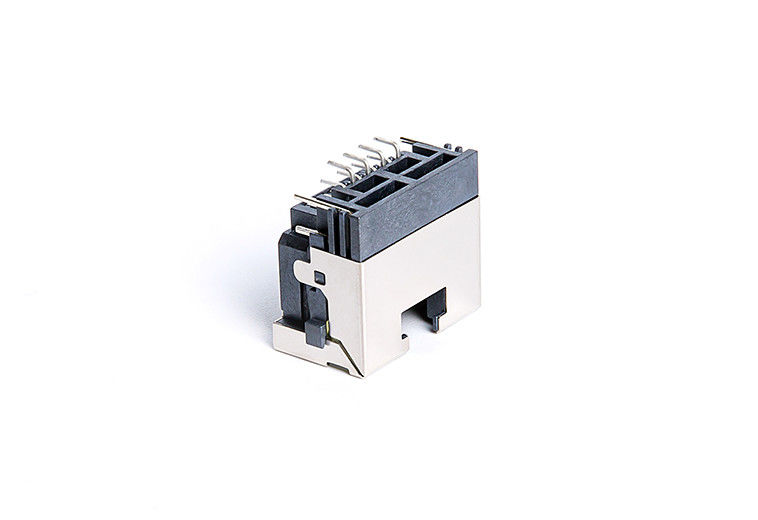

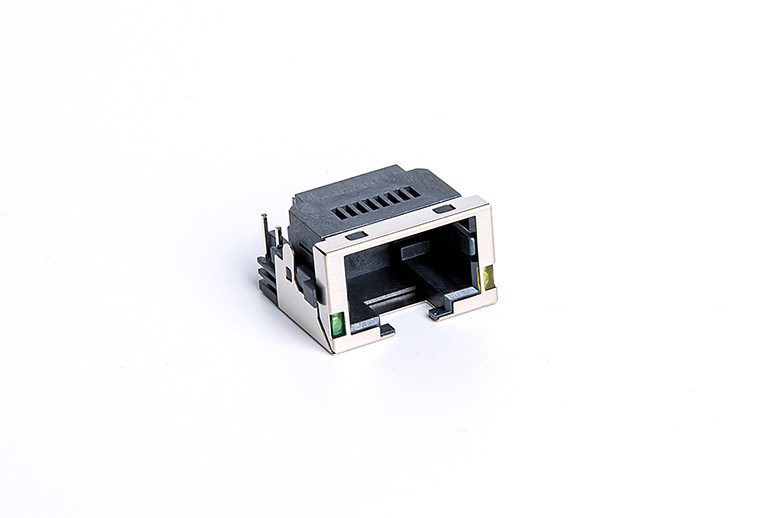

Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115 Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115 Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115 Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115 Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115
Contact Now

Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM58D811EX115

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: Left Yellow,right Green Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 90pcs/tray
High Light:

rj45 pcb mount jack

,

rj45 plug pcb mount

,

Vertical RJ45 PCB Socket With LED

Product Description

LCP black UL94V-0 ( RoHS ) Magnetic Vertical RJ45 Socket With LED y/g TM58D811EX115



Magnetic Vertical RJ45 Socket Materials:



Housig : LCP,black,UL94V-0 ( RoHS )

Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING Fu”,TAILS PLATING TIN OVER NICKEL( RoHS )

Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all





Magnetic Vertical RJ45 Socket Product Structure:

1 x 1 Port / Single Port / One Port

Connector Length: 14.55 mm

Connector Width: 17.40 mm

Connector Height: 9.80 mm

Termimal Solder Pin Length: 1.6 mm

8P8C ( 8 positions 8 contacts )

90°Orientation

With LED,Left yellow,right green, let know the connection status

With Shield,can be customized as required

We Support Custom service as required



RJ45 Without Transformer (TM58D811EX115) Attributes:

Model: TM58D811EX115
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: Left yellow,right green
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 90pcs/tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM58D811EX115) Mechnical Drawing:

Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115 0Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115 1Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115 2Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115 3Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115 4Vertical Rj45 Pcb Socket With LED Y/G LCP Black UL94V-0 TM58D811EX115 5
