4 Port Network RJ45 PCB Connector Side Entry Orange Plastic Housing TM56B914SXX13
4 Port Network RJ45 PCB Connector Side Entry Orange Plastic Housing TM56B914SXX13 4 Port Network RJ45 PCB Connector Side Entry Orange Plastic Housing TM56B914SXX13 4 Port Network RJ45 PCB Connector Side Entry Orange Plastic Housing TM56B914SXX13 4 Port Network RJ45 PCB Connector Side Entry Orange Plastic Housing TM56B914SXX13 4 Port Network RJ45 PCB Connector Side Entry Orange Plastic Housing TM56B914SXX13
Contact Now

4 Port Network RJ45 PCB Connector Side Entry Orange Plastic Housing TM56B914SXX13

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM56B914SXX13

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 10 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: Tray
High Light:

rj45 pcb mount jack

,

pcb mount rj45 connector

,

Side Entry Orange RJ45 PCB Connector

Product Description

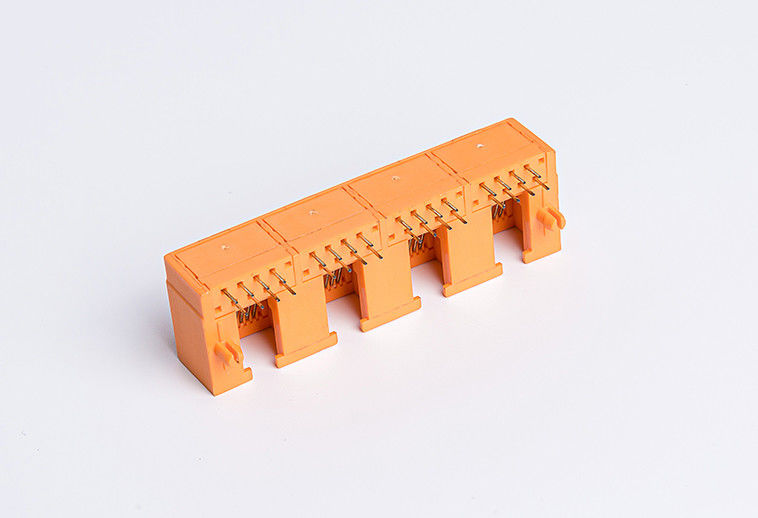

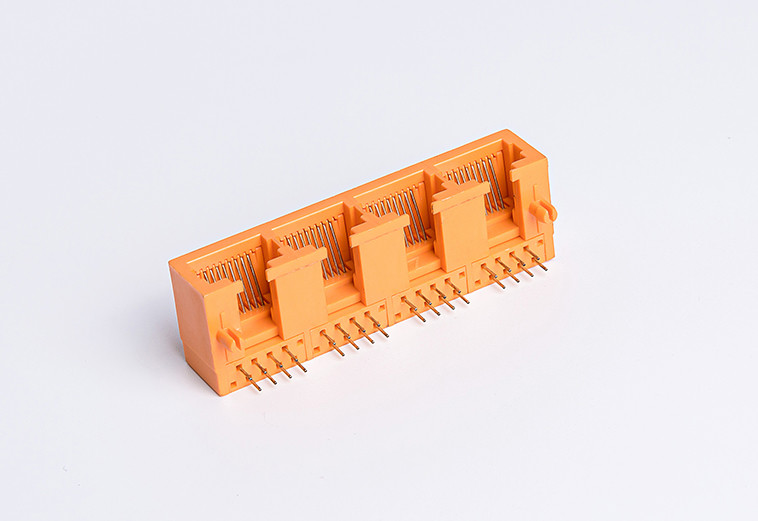

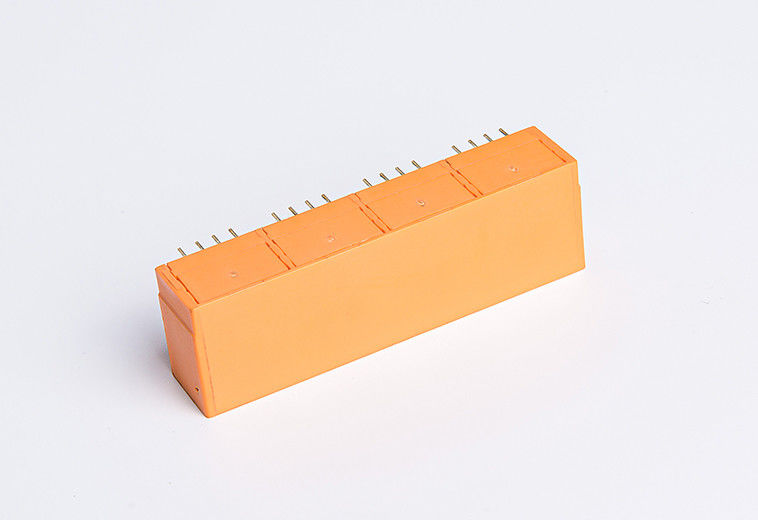

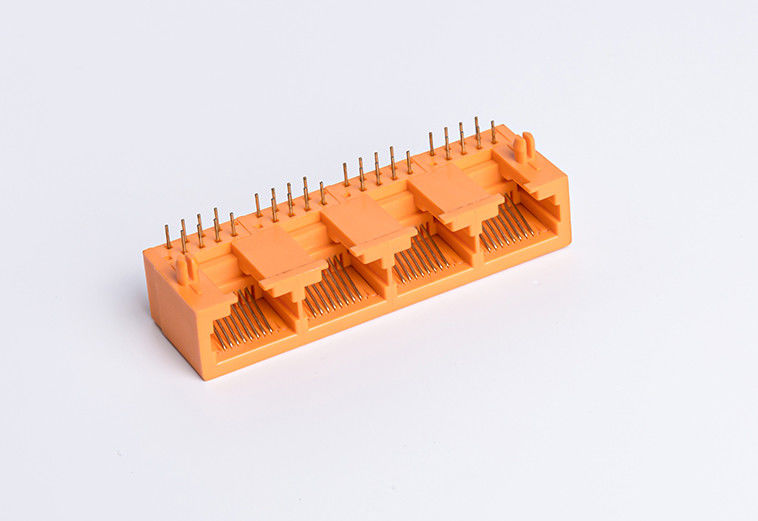

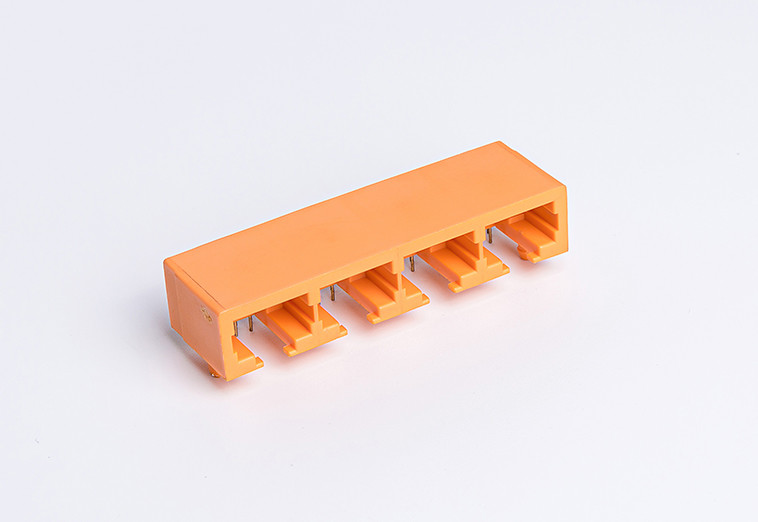

Side Entry orange plastic housing 4Port RJ45 network jack without transformer TM56B914SXX13



Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: OD=0.46mm GOLD PLATING FU" OVER NICKEL( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:
RJ45 Jack
1 x 4 Port / four Ports
Connector Length: 17.75 mm
Connector Width: 58.58 mm
Connector Height: 11.5 mm
Termimal Solder Pin Length: 3.2 mm
10P8C ( 10 positions 8 contacts )
90°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM56B914SXX13) Attributes:

Model: TM56B914SXX13
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 10
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : Tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM56B914SXX13) Mechnical Drawing:
