Home ProductsRJ45 Female Connector90 ° Orientation RJ45 PCB Connector / Tab Down Rj45 Pcb Mount Jack TM572811EBX12

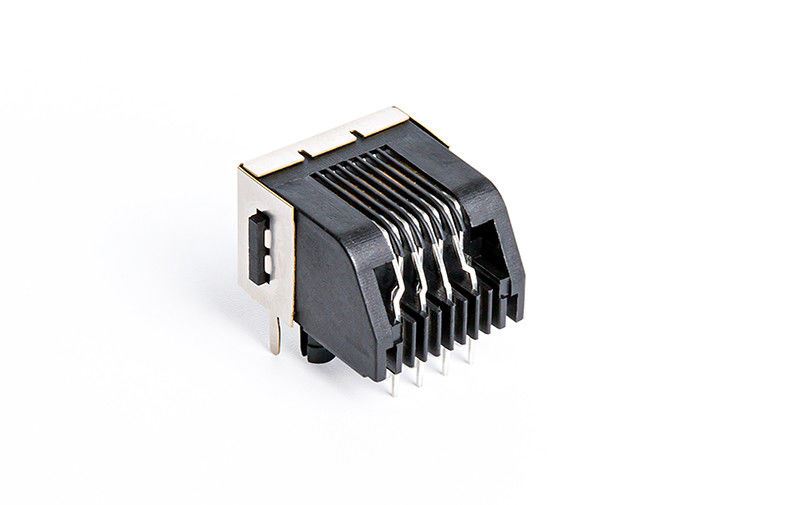

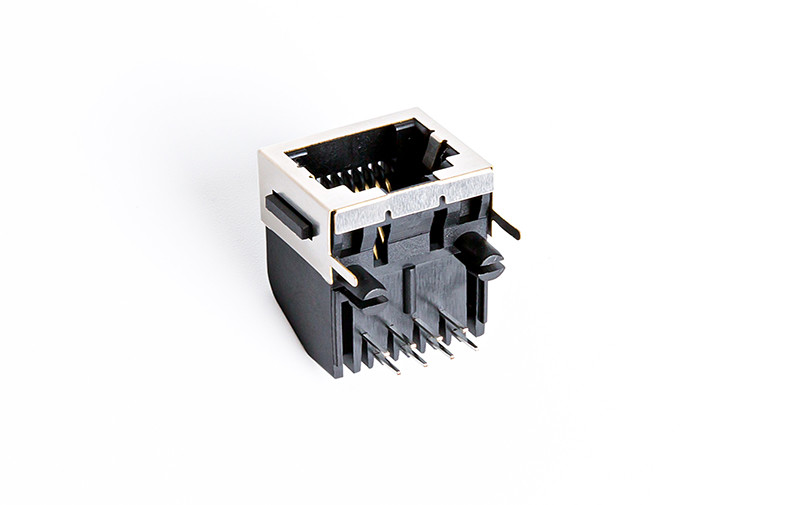

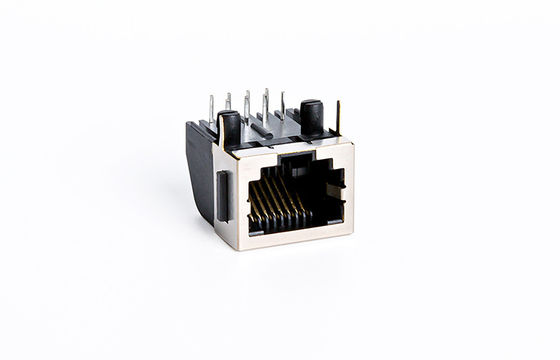

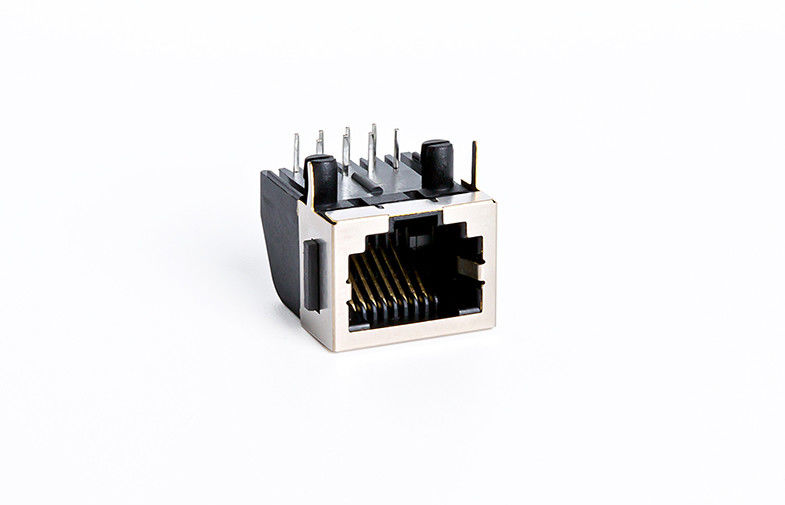

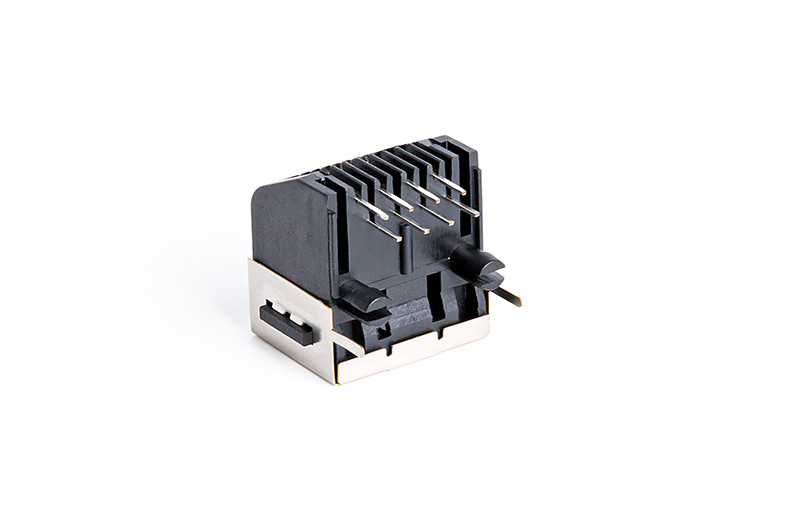

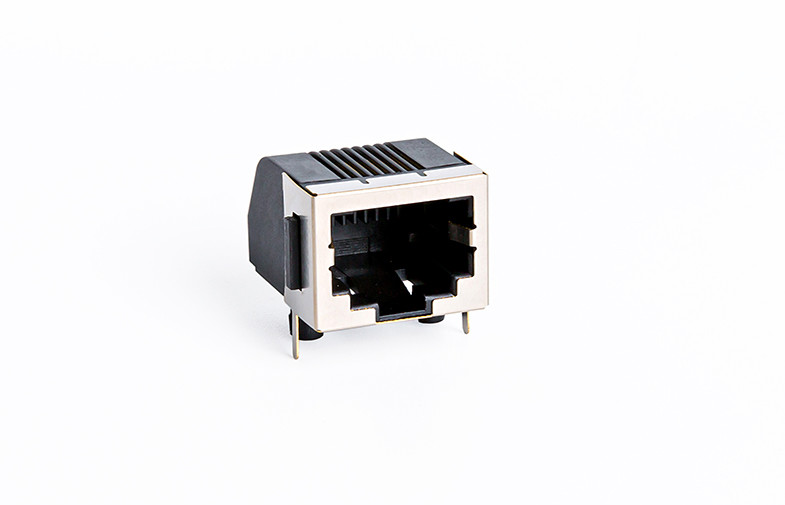

90 ° Orientation RJ45 PCB Connector / Tab Down Rj45 Pcb Mount Jack TM572811EBX12
90 ° Orientation RJ45 PCB Connector / Tab Down Rj45 Pcb Mount Jack TM572811EBX12 90 ° Orientation RJ45 PCB Connector / Tab Down Rj45 Pcb Mount Jack TM572811EBX12 90 ° Orientation RJ45 PCB Connector / Tab Down Rj45 Pcb Mount Jack TM572811EBX12 90 ° Orientation RJ45 PCB Connector / Tab Down Rj45 Pcb Mount Jack TM572811EBX12 90 ° Orientation RJ45 PCB Connector / Tab Down Rj45 Pcb Mount Jack TM572811EBX12
Contact Now

90 ° Orientation RJ45 PCB Connector / Tab Down Rj45 Pcb Mount Jack TM572811EBX12

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM572811EBX12

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 700pcs/tray
High Light:

rj45 pcb mount jack

,

rj45 plug pcb mount

Product Description

8p8c 90°Orientation Tab Down Magnetic Pcb Mount Rj45 Connector 1 x 1 Without Transformer TM572811EBX12



Materials:

Housing : PBT,UL94V-0 ( RoHS )

Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )

Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all

All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:

1 x 1 Port / Single Port / One Port

Connector Length: 18.61 mm

Connector Width: 16.0 mm

Connector Height: 13.2 mm

Termimal Solder Pin Length: 3.3 mm

8P8C ( 8 positions 8 contacts )

90°Orientation

Without LED, let know the connection status

With Shield,can be customized as required

We Support Custom service as required



RJ45 Without Transformer (TM572811EBX12) Attributes:

Model: TM572811EBX12
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 700pcs/tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM572811EBX12) Mechnical Drawing:
