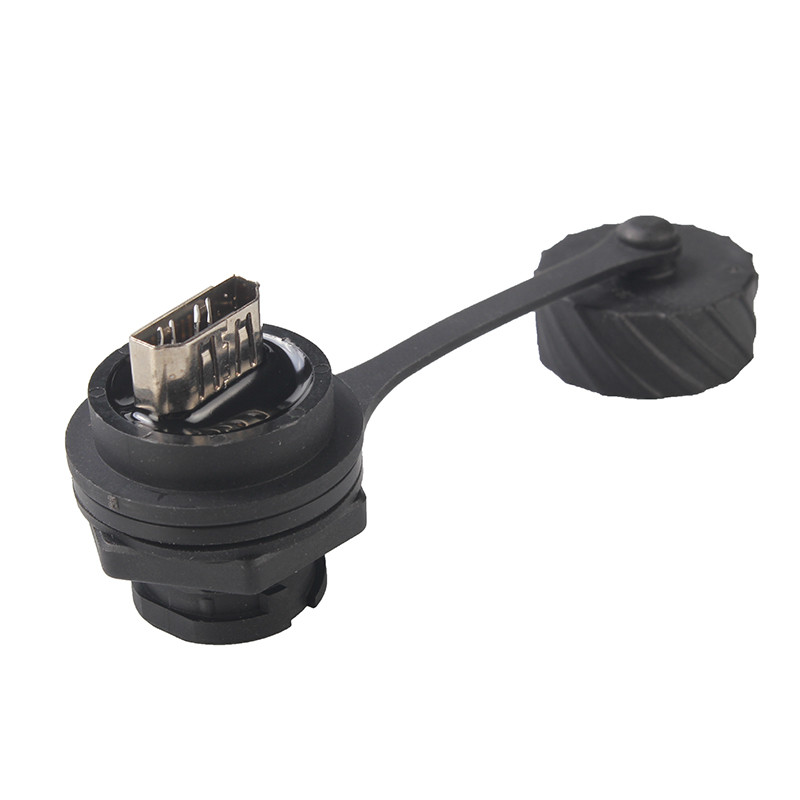

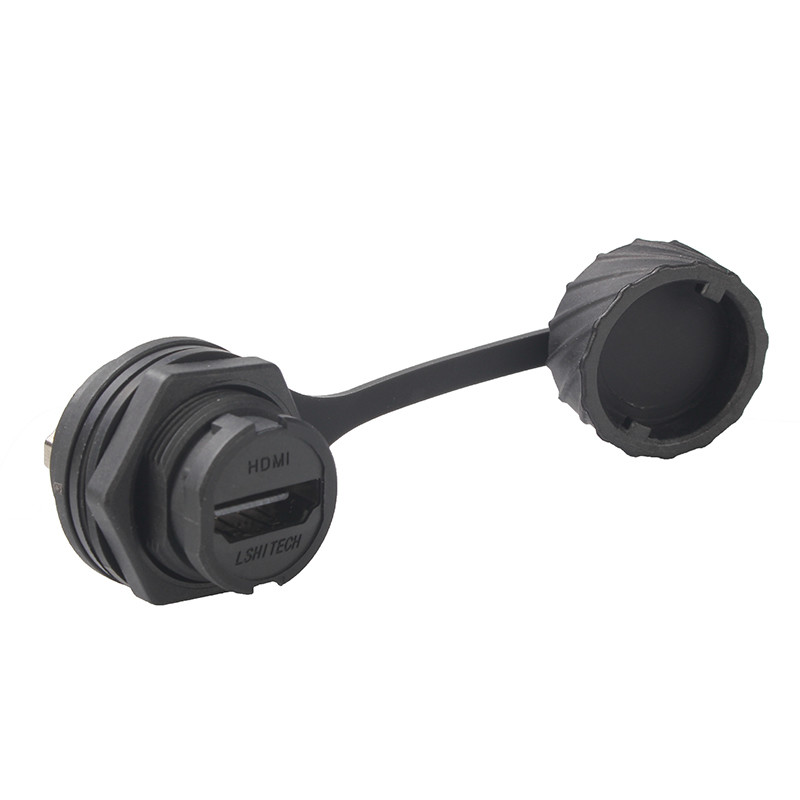

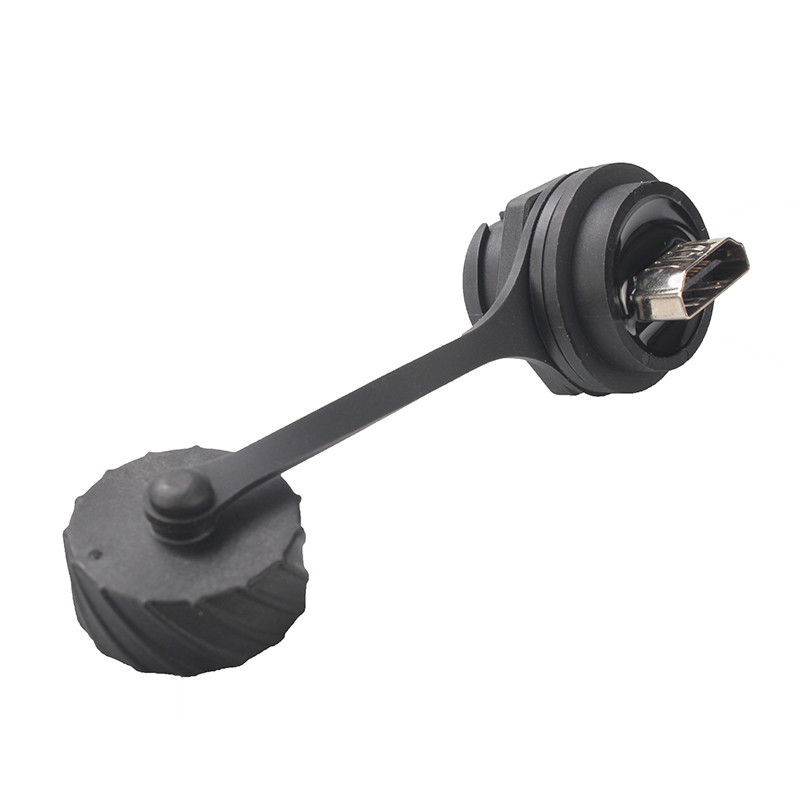

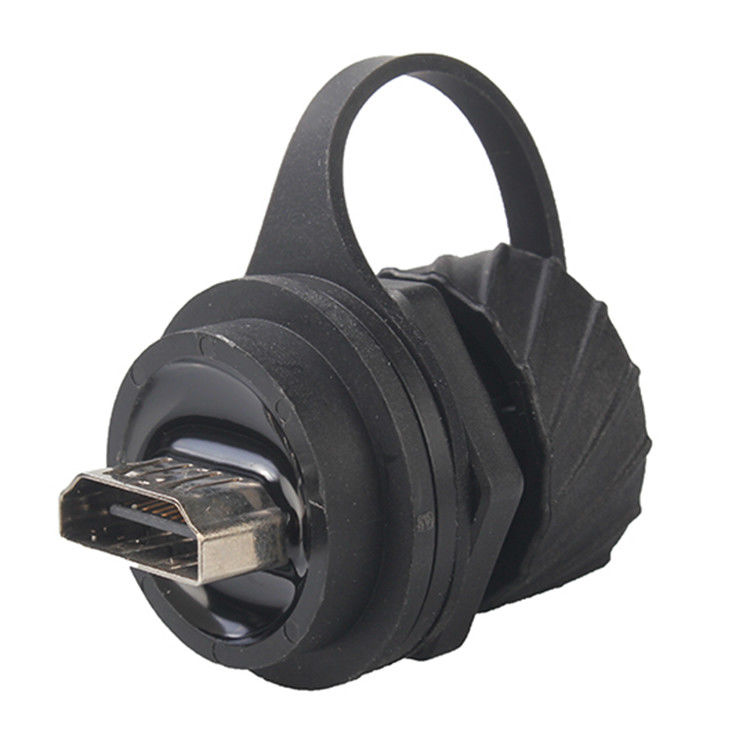

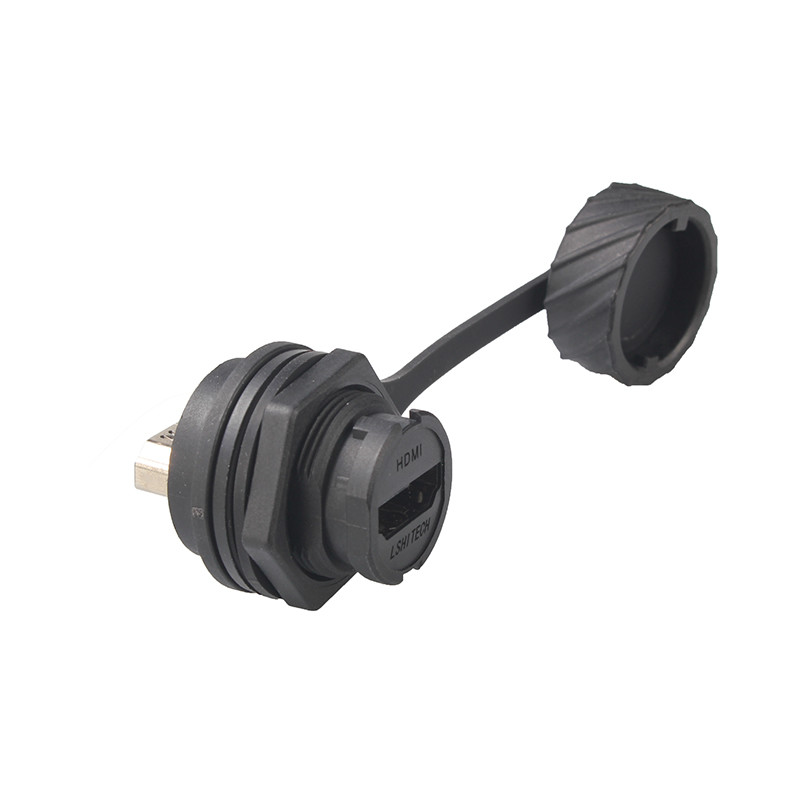

Industrial Grade Female To Female Waterproof HDMI Adapter Coupler

Product Description

HDMI Adapter Female To Female Waterproof Dustproof Coupler Industrial Grade For HDMI Cable Extension

HDMI Adapter Female (TMZJT020059) Attributes:

HDMI Adapter Female (TMZJT020059) Mechnical Drawing:

Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: Stainless Steel
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Operating Temperature:-20°C~+75X

Current Rating:1.5A

Voltage Rating:125V AC

Withstand Voltage:1000V AC

Insulation Resistance:1000MQ

Contact Resistance:40mQ

Service life:750 cycle Min

Product Structure:
HDMI Adapter
1 x 1 Port / Single Port / One Port
RJ45 Connector Width: 28.71 mm
RJ45 Connector Height: 30.75 mm
20P20C ( 20 positions 20 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
