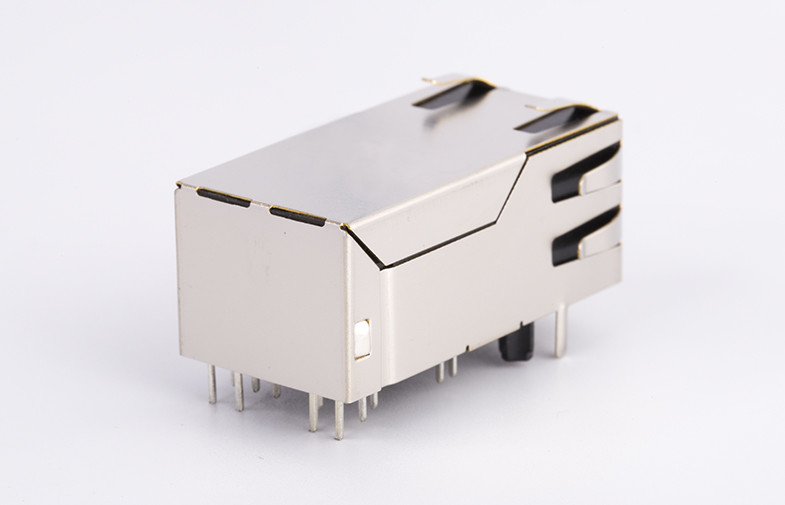

Industrial 10 Gigabit Ethernet Connector / Shielded Rj45 Ethernet Connector

Name: Industrial 10 Gigabit Ethernet Connector / Shielded Rj45 Ethernet Connector
Brand: TM
SKU: TM411W07DIA117007
Price: 1.00 USD
Availability: InStock
Rating: 5 (182 reviews)

Minimum Order Quantity :	Negotiable	Price :	Negotiable
Packaging Details :	Tray	Delivery Time :	15 working days
Payment Terms :	L/C, T/T, Western Union, MoneyGram	Supply Ability :	20kkports/month

Place of Origin:	China	Brand Name:	TM
Certification:	UL,Rohs,Reach,ISO9001	Model Number:	TM411W07DIA117007

Detail Information
Model Numbe:	TM411W07DIA117007	LENGTH:	32.5mm
HOUSING MATERIAL:	PBT UL94V-0	CONTACT MATING AREA PLATING:	GOLD 6U'' PLATING
CONNECTOR TYPE:	RJ45	CONNECTOR MATERIAL COLOR:	BLACK
LED OPTION:	LEFT GN-OR,RIGHT YE	NUMBER OF PORTS:	1X1
NUMBER OF CONTACTS:	12	GROUNDING OPTIONS:	Panel Ground And PCB Ground
SHIELD PLATING MATERIAL:	NICKEL	SHIELD EMI TABS:	YES
SHIELD:	YES	ROHS COMPLIANT:	YES
PANEL STOP:	YES	PCB MOUNT ANGLE:	SIDE ENTRY
PACKAGE:	DIP	CONNECTOR & CONTACT TERMINAATES TO:	Printed Circuit Board
LATCH ORIENTATION:	LATCH UP
High Light:	10g rj45 connector , rj45 metal shielded plug

Product Description

Customized 10G RJ45 Connector 32.5mm Length With EMI Spring Protection TM411W07DIA117007

RJ45 Without Transformer (TM411W07DIA117007) Attributes:

Model Number	TM411W07DIA117007
LENGTH	32.5mm
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD 6U'' PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK
LED OPTION	LEFT GN-OR,RIGHT YE
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	12
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	YES
ROHS COMPLIANT	YES
PANEL STOP	YES
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
LATCH ORIENTATION	LATCH UP

RJ45 Female Connector (TM411W07DIA117007) Applications:

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.

RJ45 Female Connector (TM411W07DIA117007) Mechnical Drawing:
