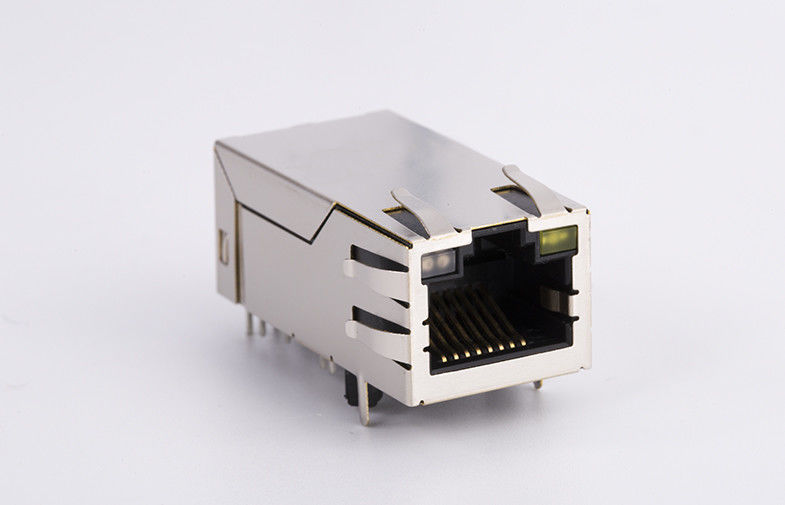

Modular 10 Gigabit Ethernet Connector / Rj45 Panel Mount Jack Socket
Modular 10 Gigabit Ethernet Connector / Rj45 Panel Mount Jack Socket
Contact Now

Modular 10 Gigabit Ethernet Connector / Rj45 Panel Mount Jack Socket

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Tray Delivery Time : 15 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 20kkports/month
Place of Origin: China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM411W07DIA117007

Detail Information
Model Numbe: TM411W07DIA117007 LENGTH: 32.5mm
HOUSING MATERIAL: PBT UL94V-0 CONTACT MATING AREA PLATING: GOLD 6U'' PLATING
CONNECTOR TYPE: RJ45 CONNECTOR MATERIAL COLOR: BLACK
LED OPTION: LEFT GN-OR,RIGHT YE NUMBER OF PORTS: 1X1
NUMBER OF CONTACTS: 12 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: YES
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH UP
High Light:

10base t connector

,

rj45 metal shielded plug

Product Description

Customized 10G RJ45 Connector 32.5mm Length With EMI Spring Protection TM411W07DIA117007



Description:





RJ45 Without Transformer (TM411W07DIA117007) Attributes:

Model Number TM411W07DIA117007
LENGTH 32.5mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT GN-OR,RIGHT YE
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 12
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH UP





Tag:

rj45 metal shielded plug

10g rj45 connector

10base t connector
