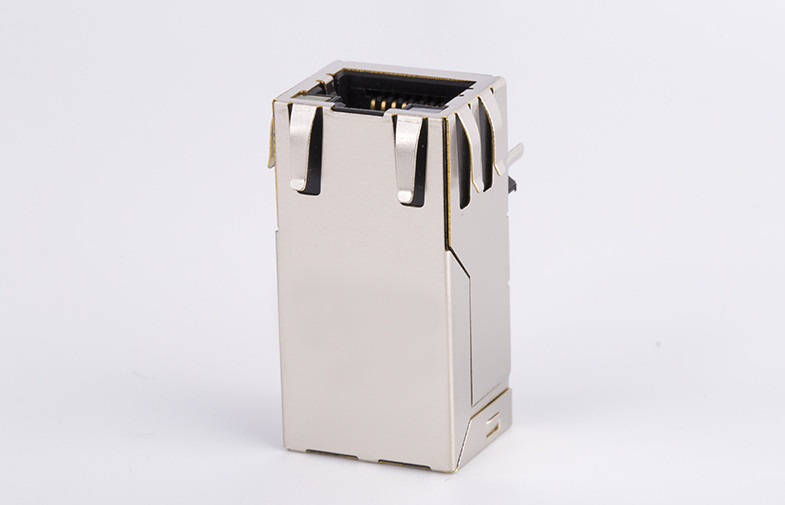

EMI Spring 10 Gigabit Ethernet RJ45 Connector With LED 32.5mm Length 1X1 PCB Ground
EMI Spring 10 Gigabit Ethernet RJ45 Connector With LED 32.5mm Length 1X1 PCB Ground
Contact Now

EMI Spring 10 Gigabit Ethernet RJ45 Connector With LED 32.5mm Length 1X1 PCB Ground

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Tray Delivery Time : 15 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 20kkports/month
Place of Origin: China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM411W07DIA117007

Detail Information
Model Numbe: TM411W07DIA117007 LENGTH: 32.5mm
HOUSING MATERIAL: PBT UL94V-0 CONTACT MATING AREA PLATING: GOLD 6U'' PLATING
CONNECTOR TYPE: RJ45 CONNECTOR MATERIAL COLOR: BLACK
LED OPTION: LEFT GN-OR,RIGHT YE NUMBER OF PORTS: 1X1
NUMBER OF CONTACTS: 12 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: YES
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH UP
High Light:

10g rj45 connector

,

rj45 metal shielded plug

Product Description

Customized 10G RJ45 Connector  With EMI Spring Protection 32.5mm Length​ TM411W07DIA117007



Description:



10GBase-Tx RJ45 single port 1X1 with LEDS with Side Entry (Right Angle)
Single port 1X1 Tab Up RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 230℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃



RJ45 Without Transformer (TM411W07DIA117007) Attributes:

Model Number TM411W07DIA117007
LENGTH 32.5mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT GN-OR,RIGHT YE
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 12
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH UP



RJ45 Female Connector (TM411W07DIA117007) Applications:

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.



RJ45 Female Connector (TM411W07DIA117007) Mechnical Drawing:

EMI Spring 10 Gigabit Ethernet RJ45 Connector With LED 32.5mm Length 1X1 PCB Ground 0EMI Spring 10 Gigabit Ethernet RJ45 Connector With LED 32.5mm Length 1X1 PCB Ground 1EMI Spring 10 Gigabit Ethernet RJ45 Connector With LED 32.5mm Length 1X1 PCB Ground 2
