Product Description

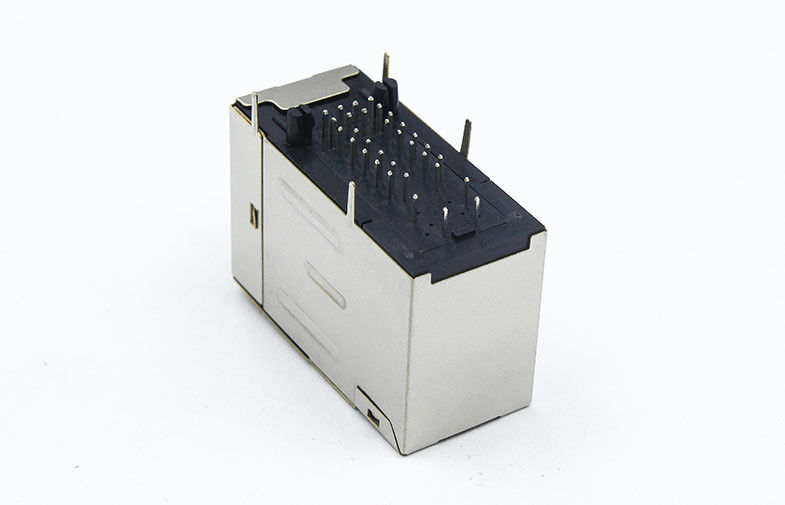

Side Enter Stacked Rj45 Ethernet Jack 10G Base T Transformer EMI For Industrial Magnetic TMX21W08DIJ135118
Yong Lian (tianmu)Electronics Limited is a pofessional engaged in Network Conector development and manufacturin design, development, poducton and sales of dversitled manutacturer. Ater years of hard devolopment, company has acumulated rich expriene and tchnolgy products by the majority of coustomers praise.
The leading products of the company include: phone jack, network sockets,networktransformers, crystal head, telephone, network peripheral cable adapter first class.
The product widerly used in indstry control,network switch,routers, set top boxes,digital dquipment and telephone&network equipment. The company had under control a large number of employees continuously seeking after improvements and practiced a set of perfect quality management systerm.To make every effort to provide the customer with the best quality and service, and continuously improve
the comprehensive quality of enterprise.
RJ45 Without Transformer (TMX21W08DIJ135118) Attributes:
| Model Number |
TMX21W08DIJ135118 |
| LENGTH |
38.3mm |
| HOUSING MATERIAL |
PBT UL94V-0 |
| CONTACT MATING AREA PLATING |
GOLD 30U'' PLATING |
| CONNECTOR TYPE |
RJ45 |
| CONNECTOR MATERIAL COLOR |
BLACK |
| LED OPTION |
LEFT GN/OR,RIGHT OR |
| NUMBER OF PORTS |
2X1 |
| NUMBER OF CONTACTS |
10 |
| GROUNDING OPTIONS |
Panel Ground and PCB Ground |
| SHIELD PLATING MATERIAL |
NICKEL |
| SHIELD EMI TABS |
YES |
| SHIELD |
YES |
| ROHS COMPLIANT |
YES |
| PANEL STOP |
YES |
| PCB MOUNT ANGLE |
SIDE ENTRY |
| PACKAGE |
DIP |
| CONNECTOR & CONTACT TERMINAATES TO |
Printed Circuit Board |
| LATCH ORIENTATION |
LATCH DOWN-UP
|
RJ45 Female Connector (TMX21W08DIJ135118) Applications:
10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.
RJ45 Female Connector (TMX21W08DIJ135118) Mechnical :
Drawing:
