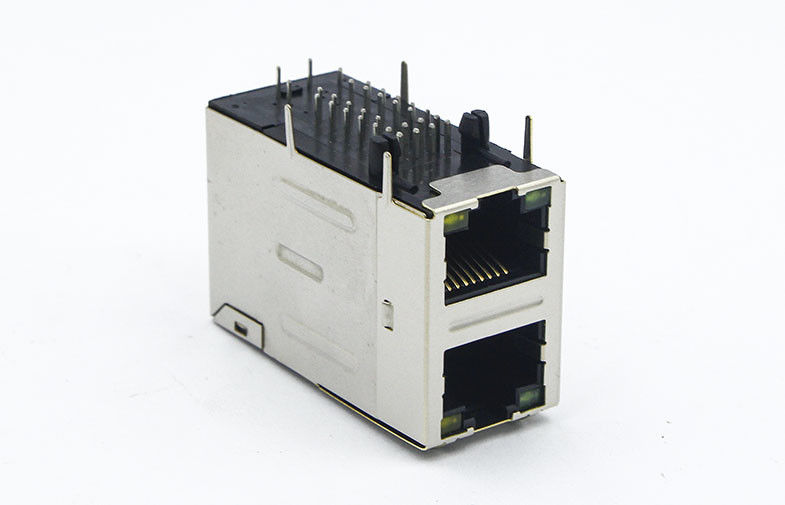

Network 10 Gigabit Ethernet RJ45 Connector With Transformer Leds Shielded
Network 10 Gigabit Ethernet RJ45 Connector With Transformer Leds Shielded
Contact Now

Network 10 Gigabit Ethernet RJ45 Connector With Transformer Leds Shielded

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Tray Delivery Time : 15 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 20kkports/month
Place of Origin: China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMX21W08DIJ135118

Detail Information
Model Numbe: TMX21W08DIJ135118 LENGTH: 38.3mm
HOUSING MATERIAL: PBT UL94V-0 CONTACT MATING AREA PLATING: GOLD 30U'' PLATING
CONNECTOR TYPE: RJ45 CONNECTOR MATERIAL COLOR: BLACK
LED OPTION: LEFT GN/OR,RIGHT OR NUMBER OF PORTS: 2X1
NUMBER OF CONTACTS: 10 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: YES
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN-UP
High Light:

10g rj45 connector

,

rj45 metal shielded plug

Product Description

Side Enter Stacked Rj45 Ethernet Jack 10G Base T Transformer EMI For Industrial Magnetic TMX21W08DIJ135118



Tian Mu satisfies costomers demand to the maximum extant for the purpose of sustainable operation. meet customer demand with clients to achieve win-win results.Forecast future, The company will continue insists on the theory of "take the talented person as a fundamental, take the market as the guaidnce,take the quality as the guarantee,take the survice as an objective "Create enterprise-class communications.



We will embrace change and make constant innovations create the glorious future with the all customer.





RJ45 Without Transformer (TMX21W08DIJ135118) Attributes:

Model Number TMX21W08DIJ135118
LENGTH 38.3mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 30U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT GN/OR,RIGHT OR
NUMBER OF PORTS 2X1
NUMBER OF CONTACTS 10
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION

LATCH DOWN-UP



RJ45 Female Connector (TMX21W08DIJ135118) Applications:

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.

Tag:

rj45 metal shielded plug

10g rj45 connector

10base t connector
