Product Description

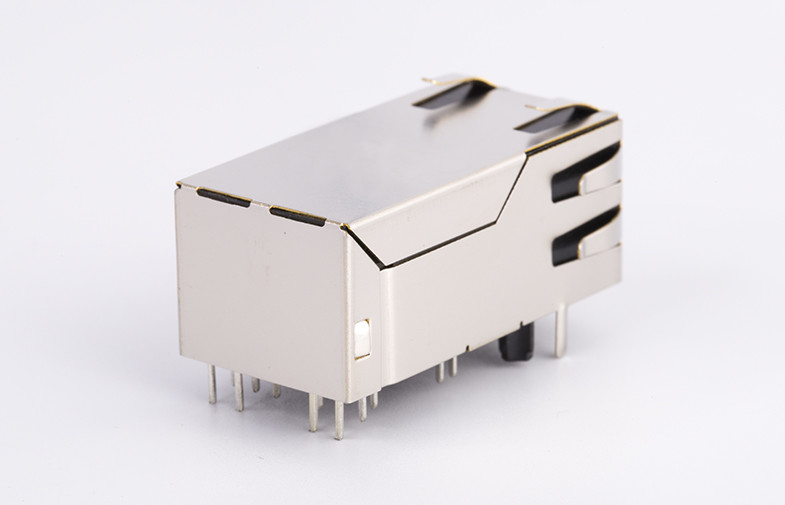

33.02mm Length POE RJ45 Connector 1G Magnetic DIP Mounting Type Suitable for CAT5&6 fast Ethernet Cable TM411W07DIA11700
RJ45 Connector with Transformer (TM411W07DIA117007) Description:
Yong Lian (tianmu)Electronics Limited is a pofessional engaged in Network Conector development and manufacturin design, development, poducton and sales of dversitled manutacturer. Ater years of hard devolopment, company has acumulated rich expriene and tchnolgy products by the majority of coustomers praise.
The leading products of the company include: phone jack, network sockets,networktransformers, crystal head, telephone, network peripheral cable adapter first class.
The product widerly used in indstry control,network switch,routers, set top boxes,digital dquipment and telephone&network equipment. The company had under control a large number of employees continuously seeking after improvements and practiced a set of perfect quality management systerm.To make every effort to provide the customer with the best quality and service, and continuously improve
the comprehensive quality of enterprise.
10GBase-Tx RJ45 single port 1X1 with LEDS with Side Entry (Right Angle)
Single port 1X1 Tab Up RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 230℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
RJ45 Without Transformer (TM411W07DIA117007) Attributes:
| Model Number |
TM411W07DIA117007 |
| LENGTH |
32.5mm |
| HOUSING MATERIAL |
PBT UL94V-0 |
| CONTACT MATING AREA PLATING |
GOLD 6U'' PLATING |
| CONNECTOR TYPE |
RJ45 |
| CONNECTOR MATERIAL COLOR |
BLACK |
| LED OPTION |
LEFT GN-OR,RIGHT YE |
| NUMBER OF PORTS |
1X1 |
| NUMBER OF CONTACTS |
12 |
| GROUNDING OPTIONS |
Panel Ground and PCB Ground |
| SHIELD PLATING MATERIAL |
NICKEL |
| SHIELD EMI TABS |
YES |
| SHIELD |
YES |
| ROHS COMPLIANT |
YES |
| PANEL STOP |
YES |
| PCB MOUNT ANGLE |
SIDE ENTRY |
| PACKAGE |
DIP |
| CONNECTOR & CONTACT TERMINAATES TO |
Printed Circuit Board |
| LATCH ORIENTATION |
LATCH UP |
RJ45 Female Connector (TM411W07DIA117007) Applications:
10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.
RJ45 Female Connector (TM411W07DIA117007) Mechnical Drawing:
