Product Description

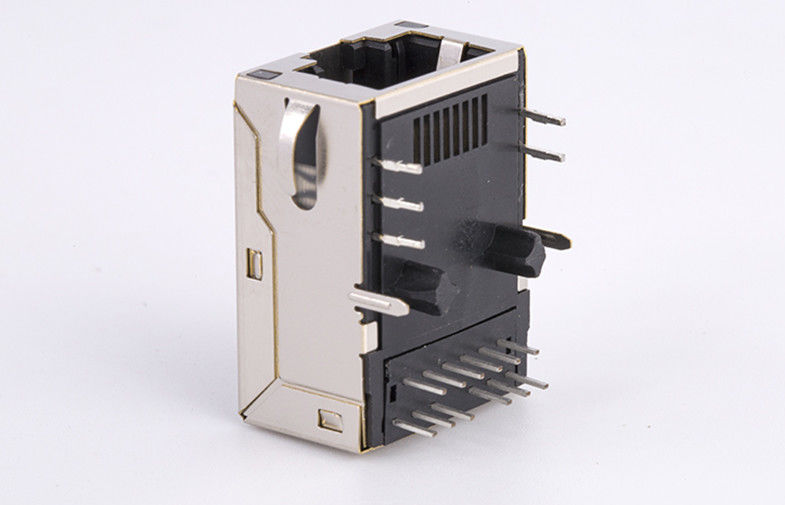

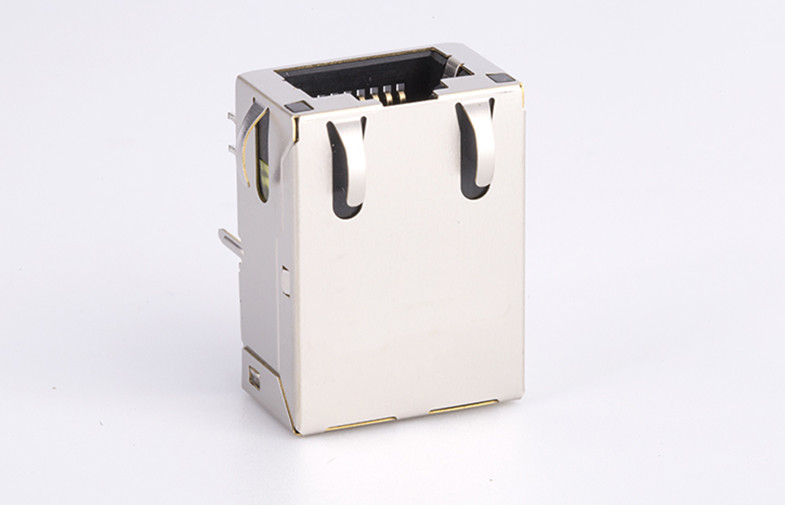

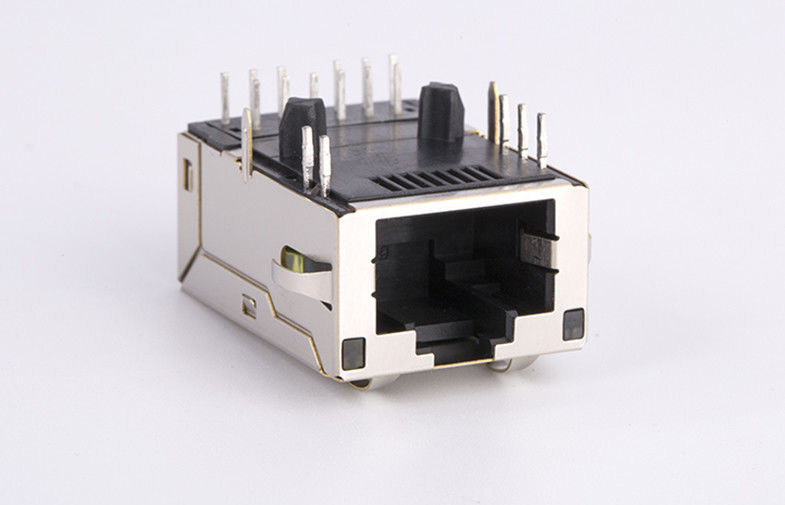

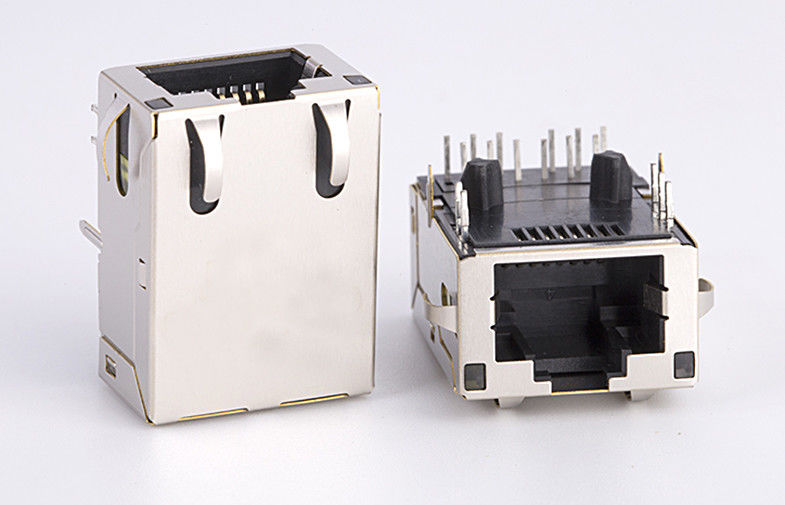

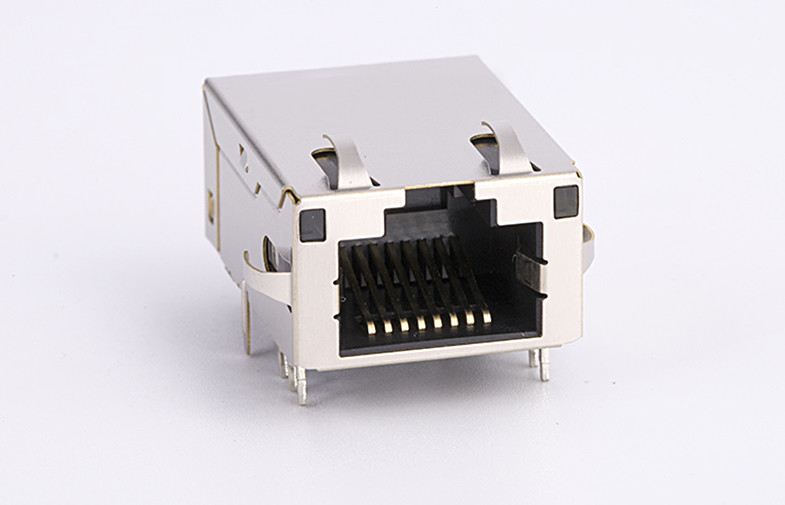

90 Degree Orientation RJ45 Ethernet Jack With 10 gigabit network switch Integrated Magnetics LEDS EMI Tabs
Description:
10GBase-Tx RJ45 single port 1X1 with LEDS with Side Entry (Right Angle)
Single port 1X1 Tab Up RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 230℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
RJ45 Without Transformer (TMA11W05FHD117007) Attributes:
| Model Number |
TMA11W05FHD117007 |
| LENGTH |
24mm |
| HOUSING MATERIAL |
PBT UL94V-0 |
| CONTACT MATING AREA PLATING |
GOLD 6U'' PLATING |
| CONNECTOR TYPE |
RJ45 |
| CONNECTOR MATERIAL COLOR |
BLACK |
| LED OPTION |
LEFT GN-YE,RIGHTGN |
| NUMBER OF PORTS |
1X1 |
| NUMBER OF CONTACTS |
12 |
| GROUNDING OPTIONS |
Panel Ground and PCB Ground |
| SHIELD PLATING MATERIAL |
NICKEL |
| SHIELD EMI TABS |
YES |
| SHIELD |
YES |
| ROHS COMPLIANT |
YES |
| PANEL STOP |
YES |
| PCB MOUNT ANGLE |
SIDE ENTRY |
| PACKAGE |
DIP |
| CONNECTOR & CONTACT TERMINAATES TO |
Printed Circuit Board |
| LATCH ORIENTATION |
LATCH UP |
RJ45 Female Connector (TMA11W05FHD117007) Applications:
10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.
RJ45 Female Connector (TMA11W05FHD117007) Mechnical:
Drawing:
