Home ProductsRJ11 Female ConnectorUK Telephone Modular RJ11 PCB Jack With High Insulation Resistance

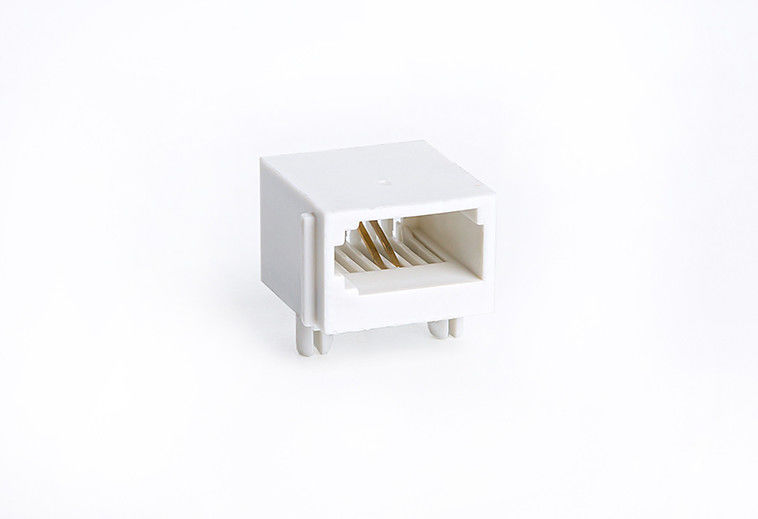

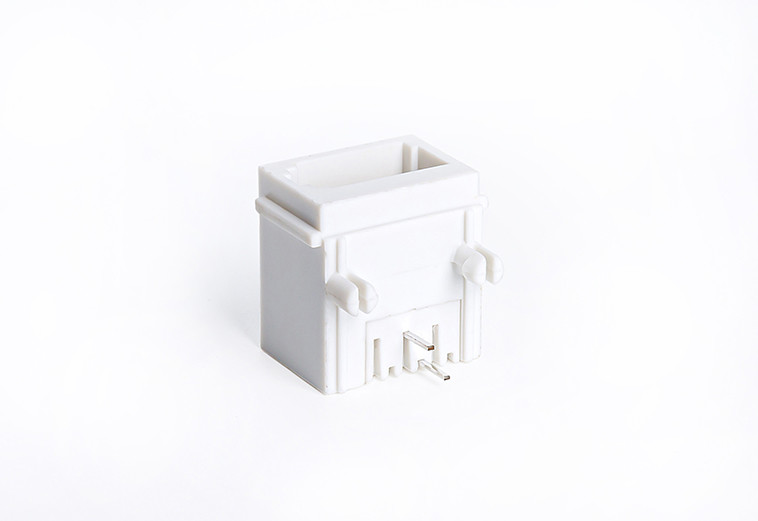

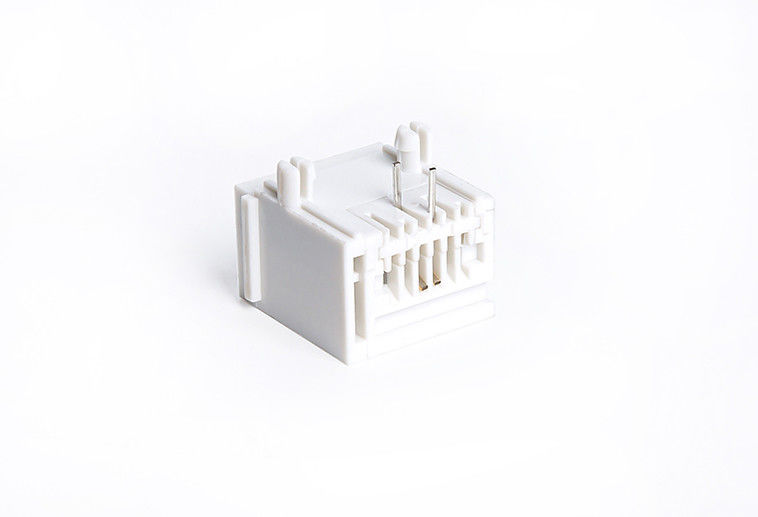

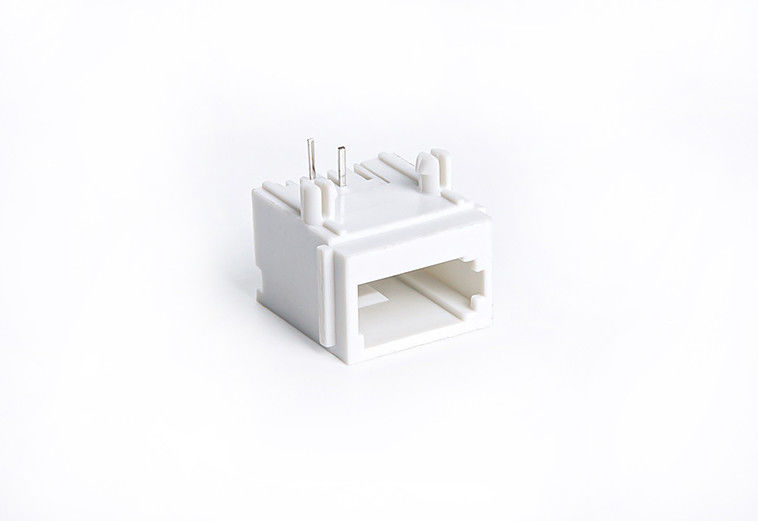

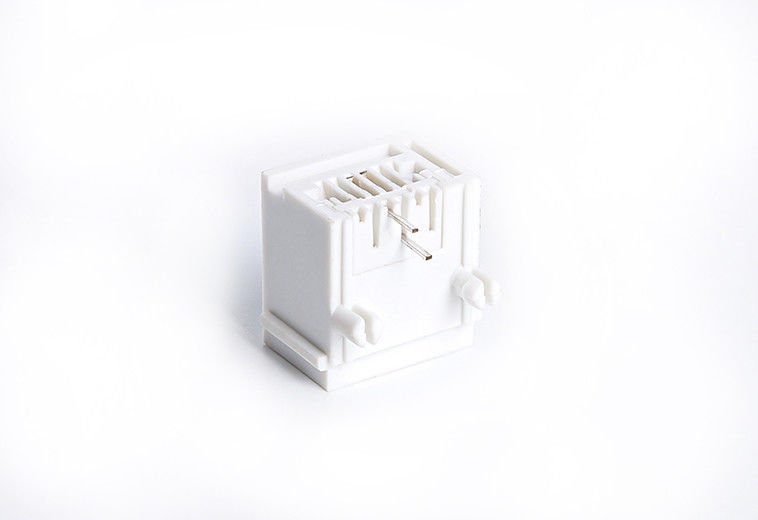

UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance
Contact Now

UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMUKF311SXX13

Detail Information
LED Option: No Product Type : RJ11 Modular Connector
Shielded EMI Tabs: No Jack Type: RJ11
Number Of Positions: 6 Terminals Per Port: 2
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
High Light:

rj11 pcb mount connector

,

rj11 modular socket

,

High Insulation Resistance RJ11 PCB Jack

Product Description

UK Telephone RJ11 PCB modular jack





1. Product Structure:

RJ11 Modular Jack

1 x 1 Port / Single Port / One Port

Connector Length: 17.4 mm

Connector Width: 15.9 mm

Connector Height: 11.6 mm

Termimal Solder Pin Length: 3.5 mm

6P2C ( 6 positions 2 contacts )

90°Orientation

We Support Custom service as required



2. RJ11 Without Transformer (TMUKF311SXX13) Attributes:

Model: TMUKF311SXX13
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 2
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Supply Ability: 5KK/year



RJ11 Female Connector (TMUKF311SXX13) Mechnical Drawing:

UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance 0

UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance 1UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance 2UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance 3UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance 4UK Telephone Modular RJ11 PCB Jack With High Insulation Resistance 5
