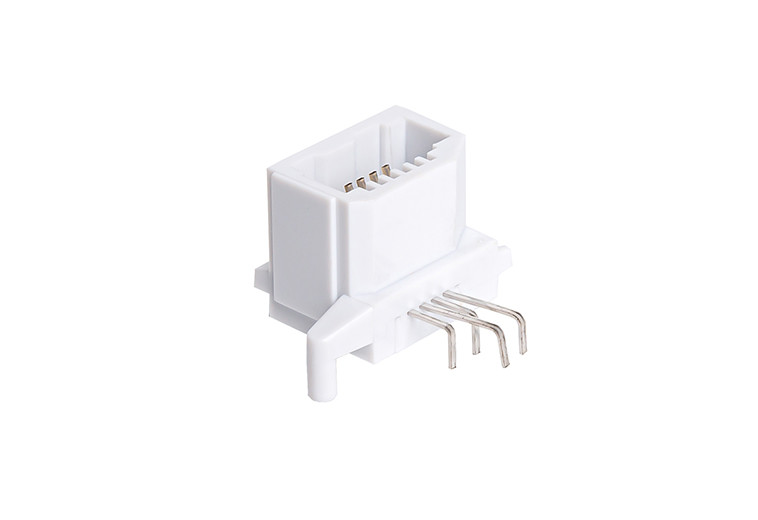

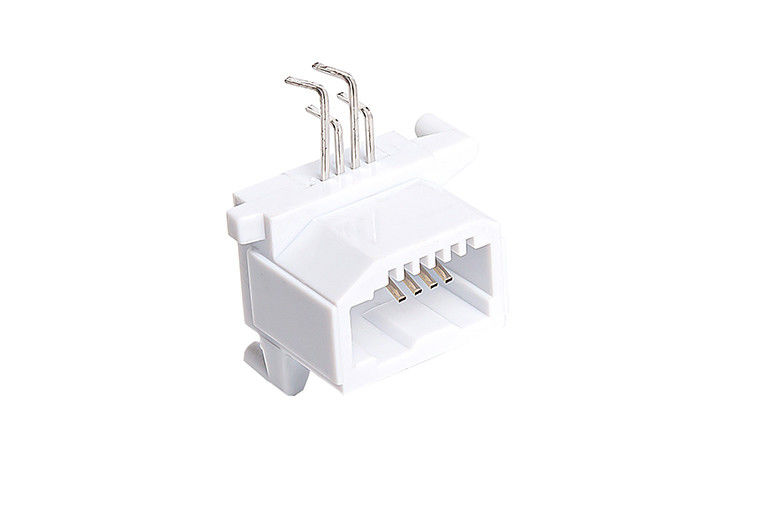

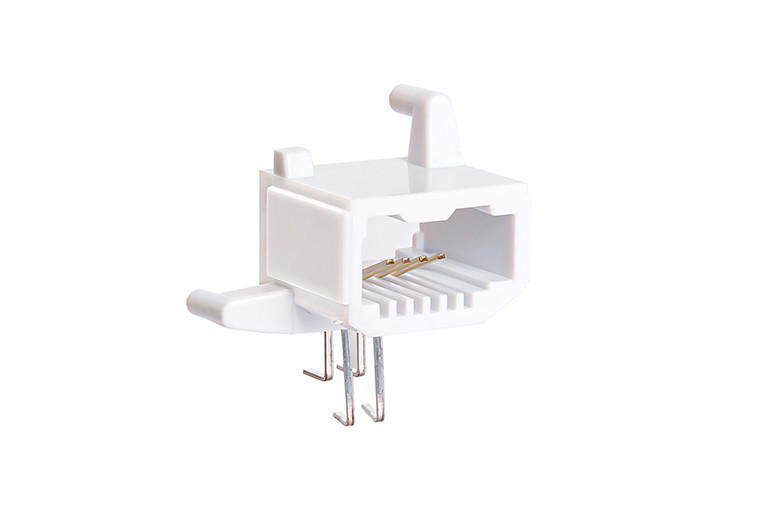

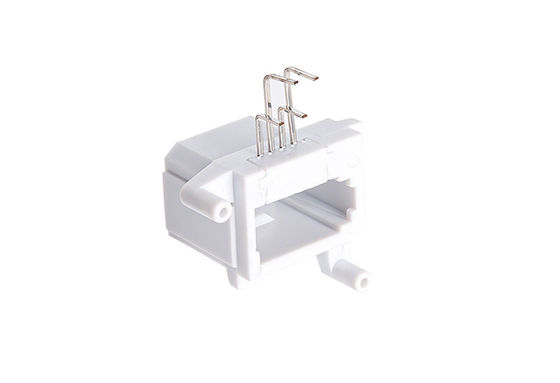

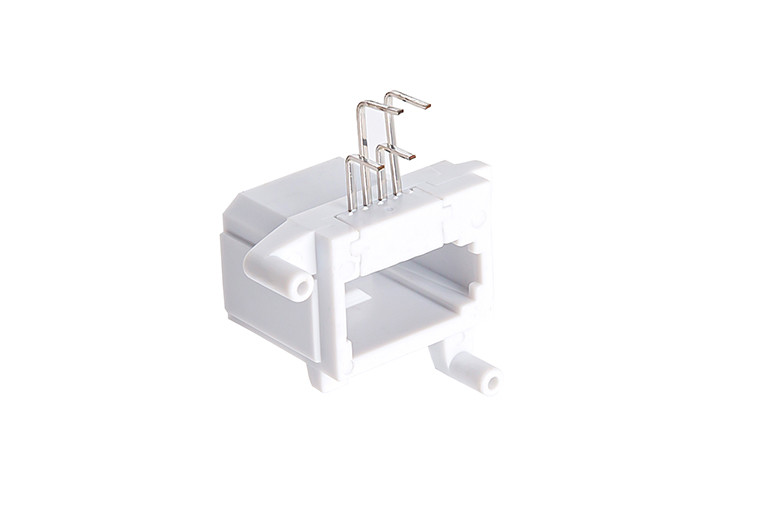

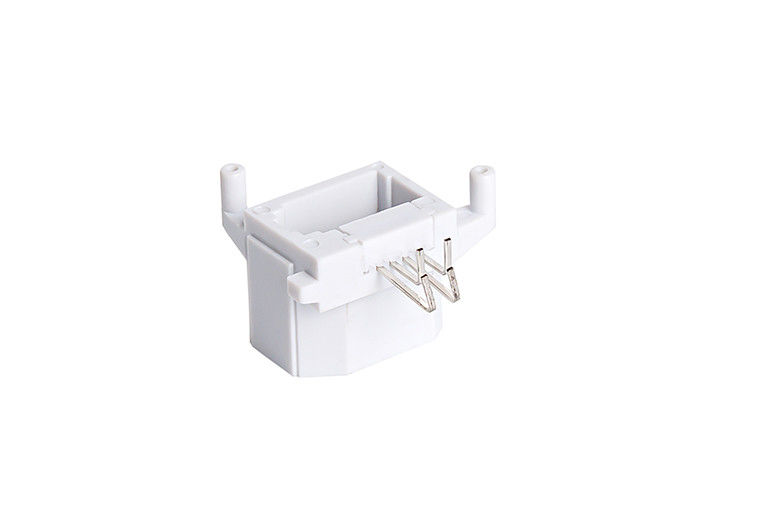

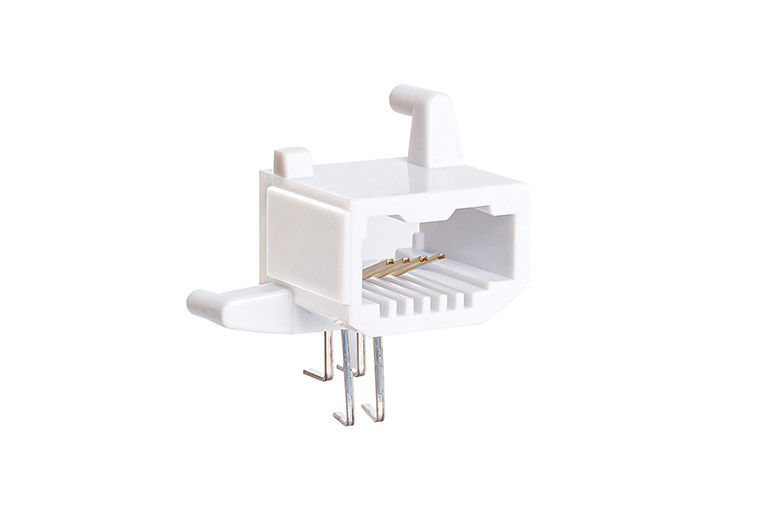

Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V
Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V
Contact Now

Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : Standard Export Package or according to customs request Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMUKF511SXX12

Detail Information
LED Option: No Product Type : RJ11 Modular Connector
Shielded EMI Tabs: No Jack Type: RJ11
Number Of Positions: 6 Terminals Per Port: 4
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
High Light:

rj11 pcb mount connector

,

rj11 modular socket

,

Vertical Terminal UK RJ11 Connector

Product Description

cate5e 6P4C vertical terminal uk rj11 connector pcb modular Jack



Materials:

Housing:PBT,UL94V-0 ( RoHS )

Insert: PBT,UL94V-0 ( RoHS )Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING Fu”,TAILS PLATING TIN OVER NICKEL

All materials mates with modulat plug conforming to FCC part 68. subpart F.



1. Product Structure:



RJ12 Modular Jack

1 x 1 Port / Single Port / One Port

Connector Length: 18.55 mm

Connector Width: 14.88 mm

Termimal Solder Pin Length: 6 mm

6P4C ( 6 positions 4 contacts )

90°Orientation

We Support Custom service as required



2. RJ12 Without Transformer (TMUKF511SXX12) Attributes:

Model: TMUKF511SXX12
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ12 Modular Connector
Jack Type: RJ12
Number of Positions : 6
Terminals per Port: 4
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Supply Ability: 5KK/year



RJ12 Female Connector (TMUKF511SXX12) Mechnical Drawing:

Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V 0Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V 1Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V 2Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V 3Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V 4Cate5e 6P4C Vertical Terminal Uk Rj11 Connector Pcb Modular Jack 125 V 5
