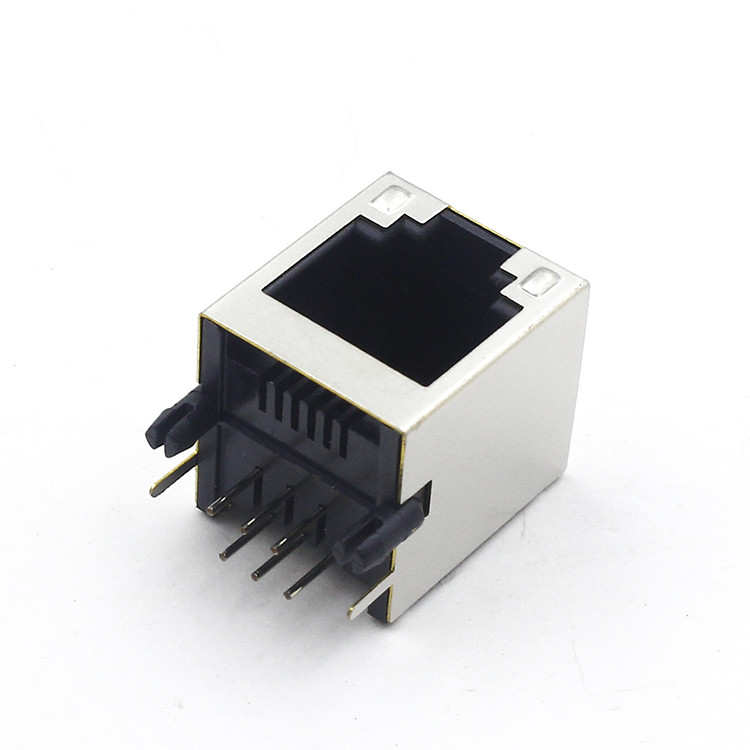

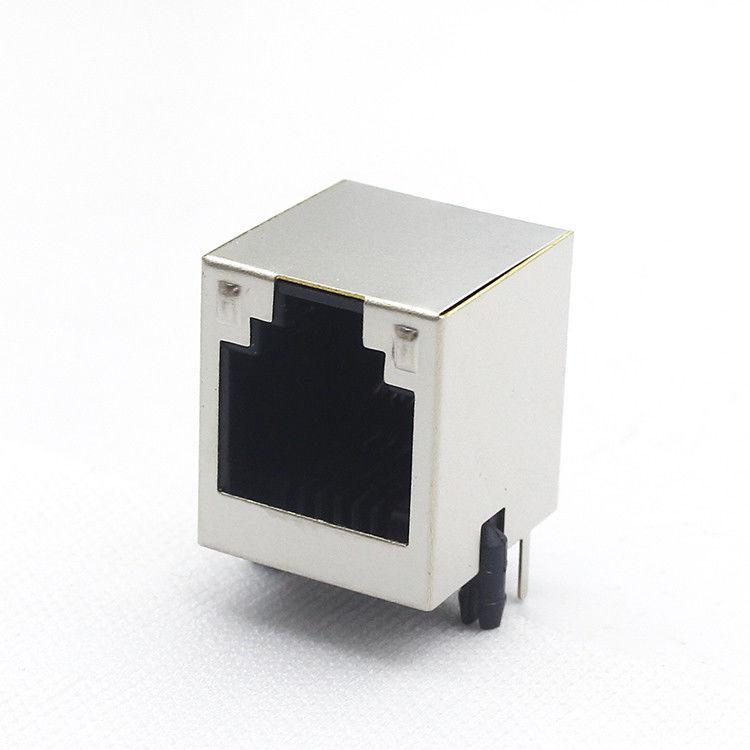

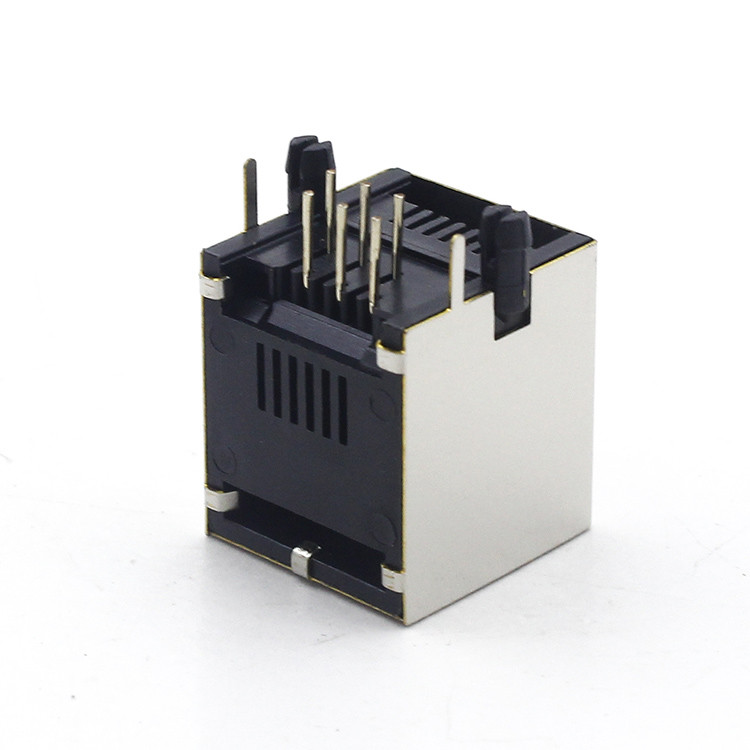

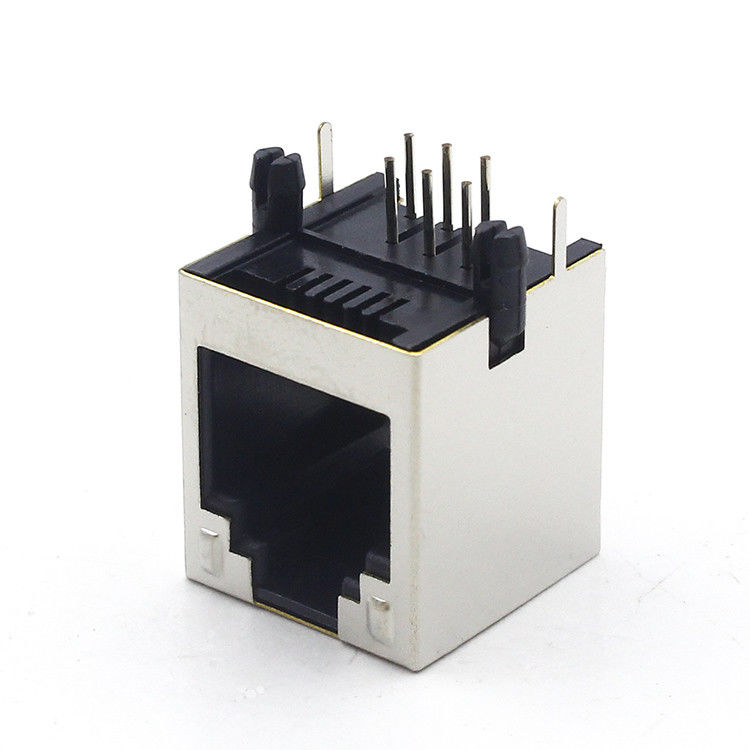

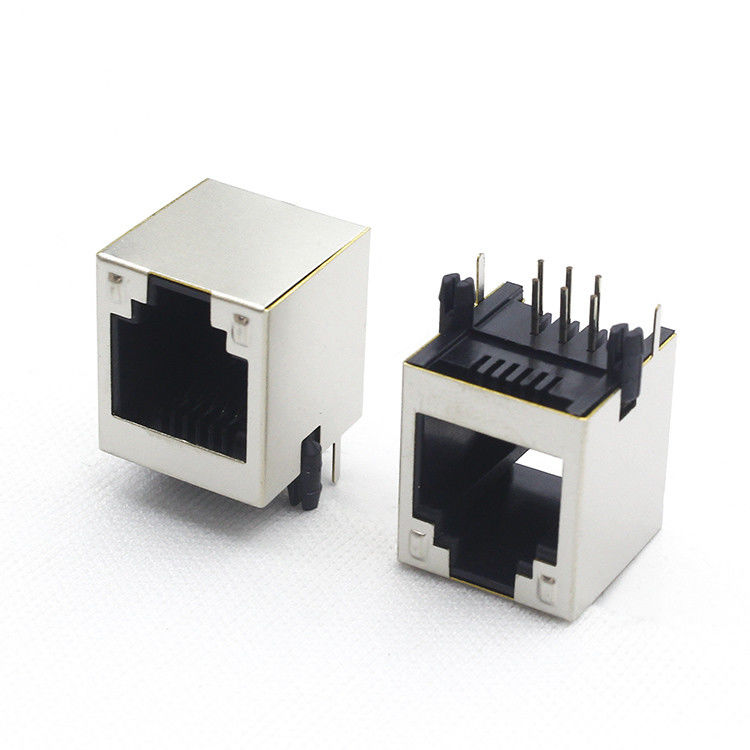

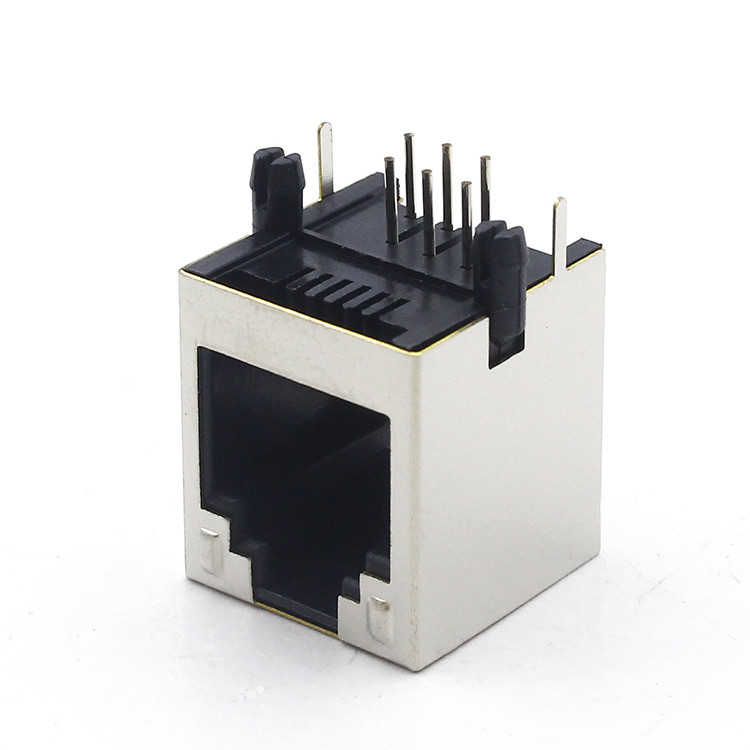

1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector
1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector 1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector 1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector 1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector 1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector
Contact Now

1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector

Minimum Order Quantity : Supportive Price : Supportive
Packaging Details : 100pcs/tray Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM55A511EXX11

Detail Information
LED Option: No Product Type : RJ11 Modular Connector
Shielded EMI Tabs: No Jack Type: RJ11
Number Of Positions: 6 Terminals Per Port: 6
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 100pcs/tray
High Light:

rj11 pcb mount connector

,

rj11 modular socket

,

1.5 A 6P6C RJ11 Telephone Jack

Product Description

Female RJ45 connector 6P6C rj11 telephone jack adapter modular



Materials:



Housing:PBT,UL94V-0 ( RoHS )

Shielding Shell: With

All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:

RJ11 Modular Jack

1 x 1 Port / Single Port / One Port

Connector Length: 13.2 mm

Connector Width: 12.85 mm

Connector Height: 14.75 mm

Termimal Solder Pin Length: 3.4 mm

6P6C ( 6 positions 6 contacts )

90°Orientation

Without LED, let know the connection status

With Shield,can be customized as required

We Support Custom service as required



RJ11 Without Transformer (TM55A511EXX11) Attributes:

Model: TM55A511EXX11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Supply Ability: 5KK/year



RJ11 Female Connector (TM55A511EXX11) Mechnical Drawing:

1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector 0

1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector 11.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector 2

1.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector 31.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector 41.5 A 6P6C RJ11 Telephone Jack Adapter Modular / Female RJ45 Connector 5
