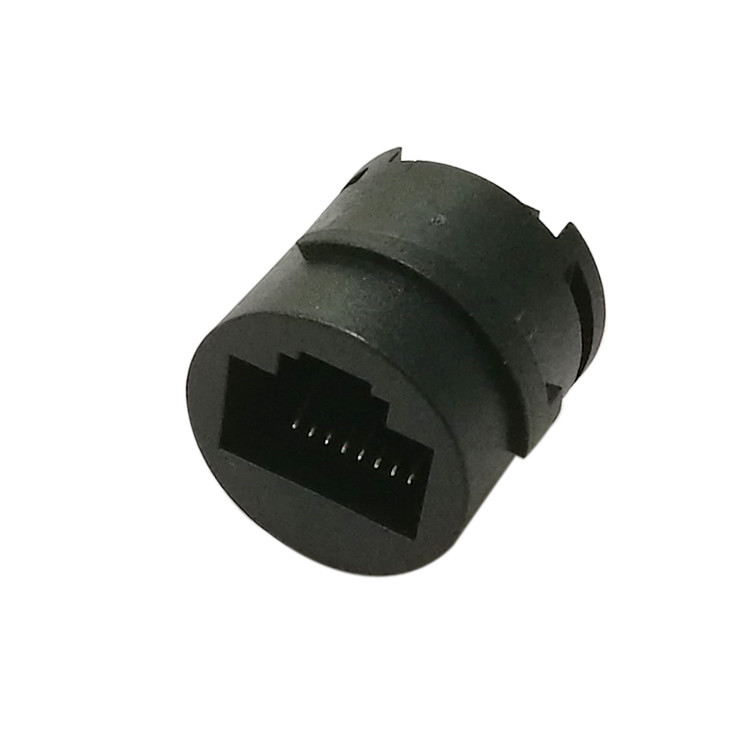

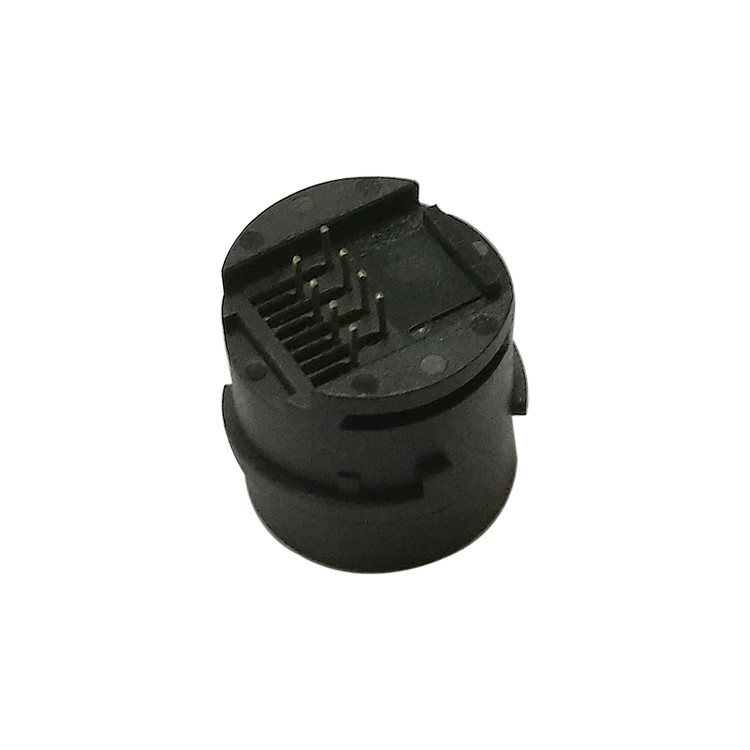

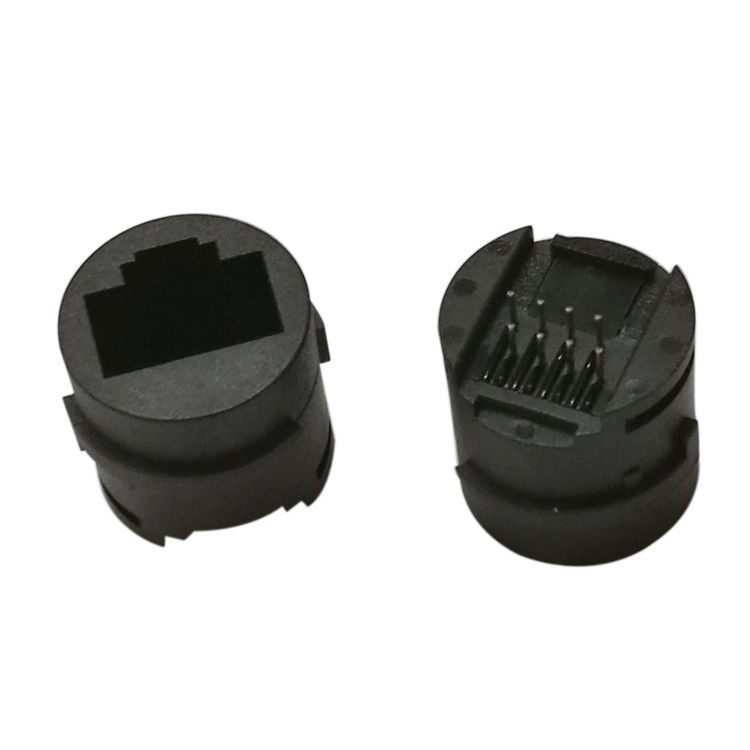

Rectangle Waterproof Rj45 Ethernet Connector / Rj45 Female Connector
Rectangle Waterproof Rj45 Ethernet Connector / Rj45 Female Connector Rectangle Waterproof Rj45 Ethernet Connector / Rj45 Female Connector Rectangle Waterproof Rj45 Ethernet Connector / Rj45 Female Connector Rectangle Waterproof Rj45 Ethernet Connector / Rj45 Female Connector
Contact Now

Rectangle Waterproof Rj45 Ethernet Connector / Rj45 Female Connector

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 500pcs/bag Delivery Time : 15 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMFST811SBX12

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: NO Shielded EMI Tabs: NO
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 1000pcs Package: 500pcs/bag
High Light:

rj45 pcb mount jack

,

pcb mount rj45 connector

Product Description

rectangle waterproof rj45 ethernet connector rj45 female connector



Materials:

Housing : PBT,UL94V-0 ( RoHS )

Contact Finish: OD0.46mm GOLD PLATING FU" OVER NICKEL.( RoHS )

Shielding Shell: No shield.

All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:

RJ45 Jack

1 x 1 Port / Single Port / SMT Port

Connector Length: 15.00 mm

Connector Width: 16.60 mm

Connector Height: 16.60 mm

Termimal Solder Pin Length: 3.0 mm

8P8C ( 8 positions 8 contacts )

180°Orientation

Without led, let know the connection status

Without Shield,can be customized as required

We Support Custom service as required



RJ45 Without Transformer (TMFST811SBX12) Attributes:

Model: TMFST811SBX12
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Supply Ability: 5KK/year


5.RJ45 Female Connector (TMFST811SBX12) Mechnical Drawing:

Rectangle Waterproof Rj45 Ethernet Connector / Rj45 Female Connector 0Rectangle Waterproof Rj45 Ethernet Connector / Rj45 Female Connector 1Rectangle Waterproof Rj45 Ethernet Connector / Rj45 Female Connector 2Rectangle Waterproof Rj45 Ethernet Connector / Rj45 Female Connector 3Rectangle Waterproof Rj45 Ethernet Connector / Rj45 Female Connector 4
