IP68 Weatherproof RJ45 Waterproof Coupler Connector Panel Mount

Product Description

IP68 Weatherproof RJ45 Waterproof Coupler Connector Panel Mount

USB 2.0 Type A IP68 Weatherproof Coupler Connector-Panel Mount

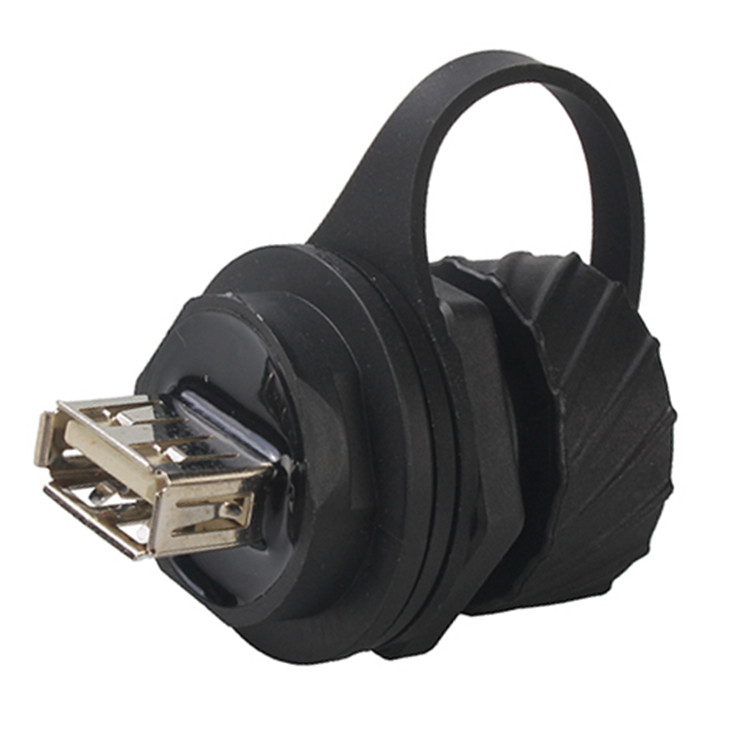

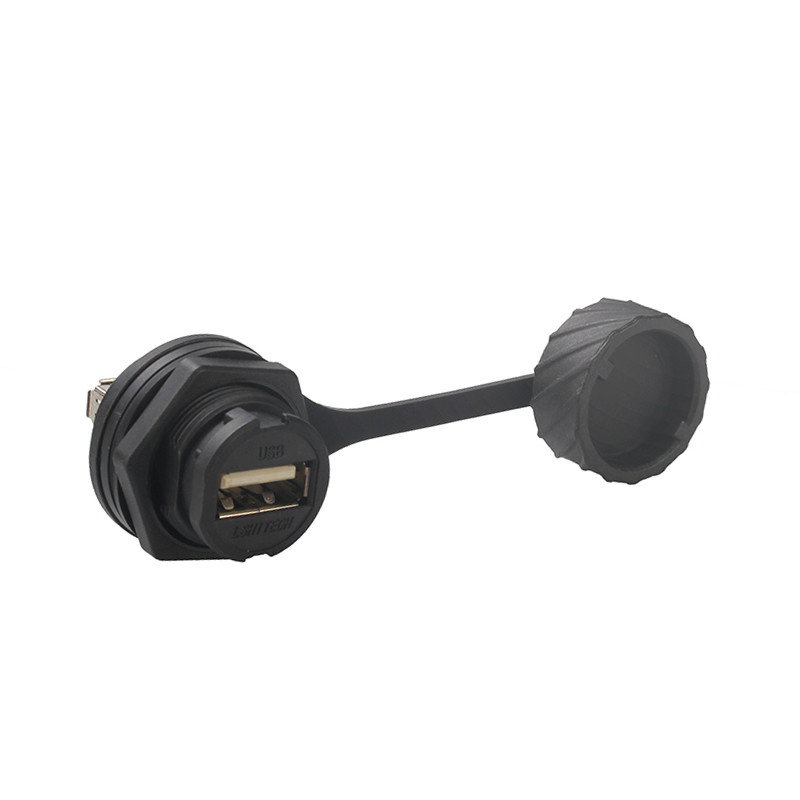

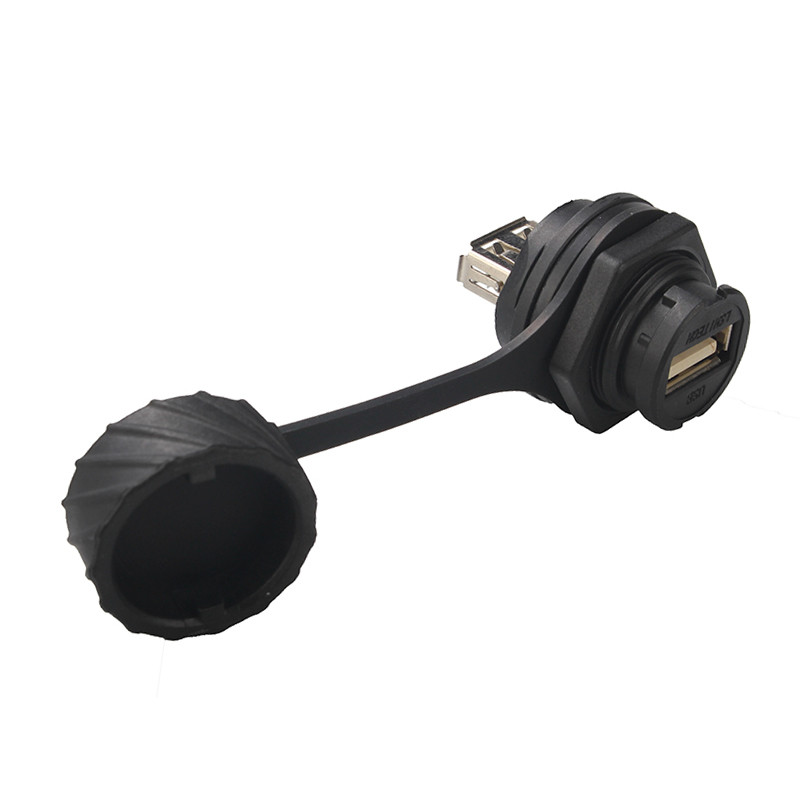

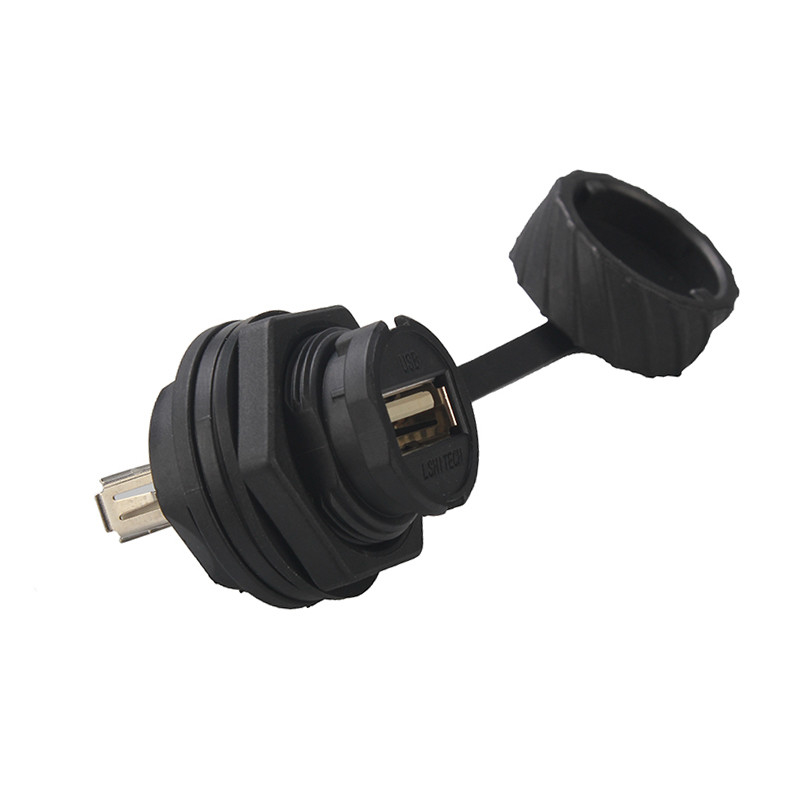

USB A Type IP68 Rated Weatherproof coupler connector Panel Mount

When you need to subject your electronics to some pretty intense environments. The most challenging part of designing for rough conditions is the problem of how to protect your electrical connections to the outside world. A normal panel mount connector will collect dust and leak water, but luckily, we just picked up these IP67 rated weatherproof USB connectors.
These USB-A type connectors are housed in a molded plastic assembly with O-rings and panel gaskets to keep your panel mount USB connection not only dust proof, but waterproof as well. The front of the assembly is threaded to accept a mating waterproof cable or sealing cap that maintains the waterproof seal when there’s nothing connected.

USB A Type Weatherproof coupler Materials:
Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.

USB A Type Weatherproof coupler Product Structure:
USB 2.0 AF Adapter
One to one Port
Connector Length: 33 mm
Operating Temperature:-20°C~+75X
Current Rating:1.5A
Voltage Rating:125V AC
Withstand Voltage:1000V AC
Insulation Resistance:1000MQ
Contact Resistance:30mQ
Service life:750 cycle Min
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

USB A Type Weatherproof coupler (TMZJT020062) Attributes:,


USB A Type Weatherproof coupler (TMZJT020062) Mechnical Drawing:
