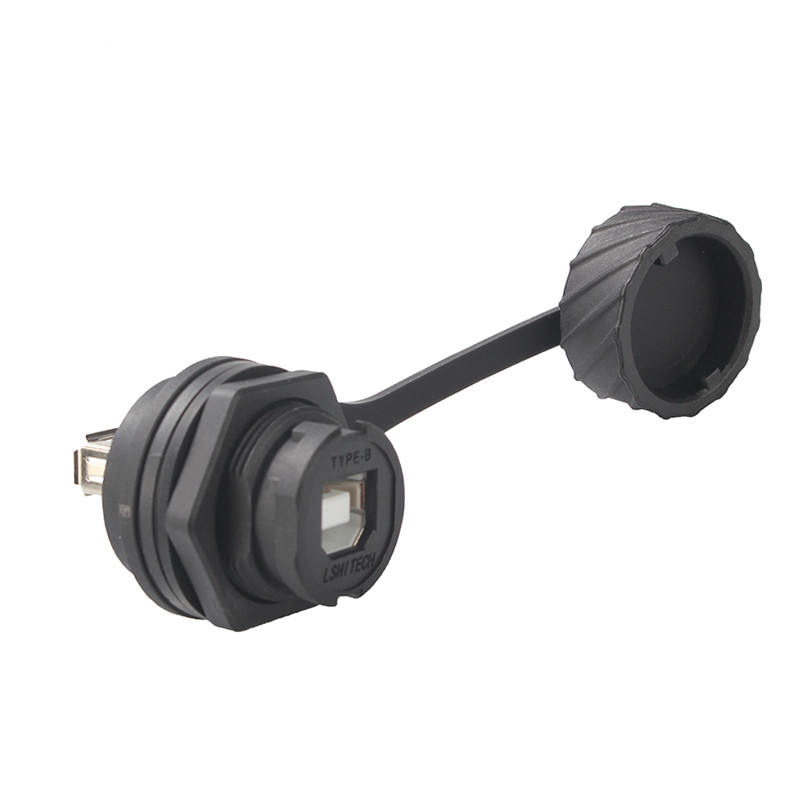

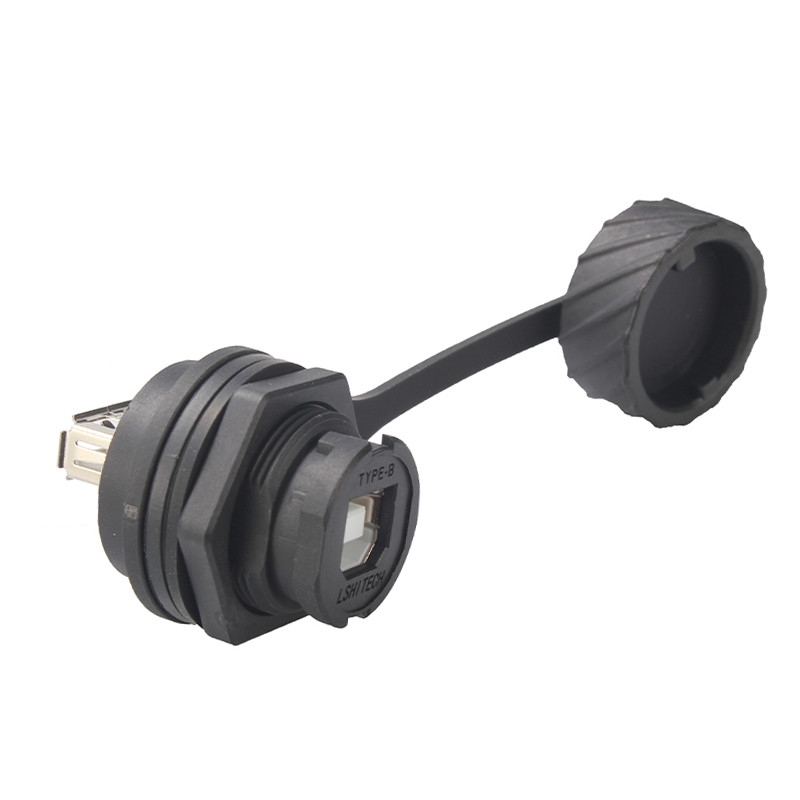

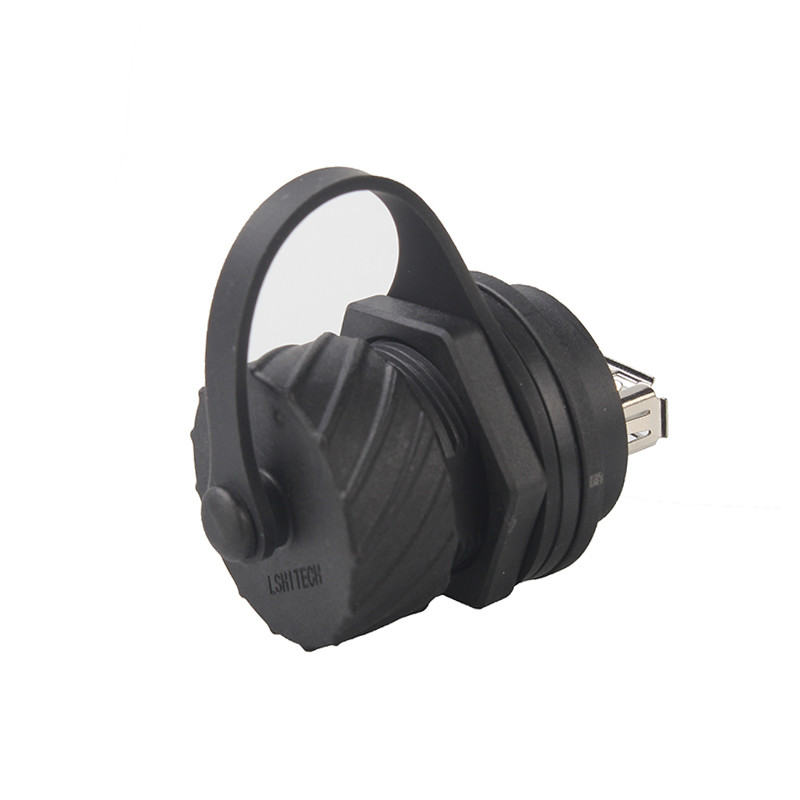

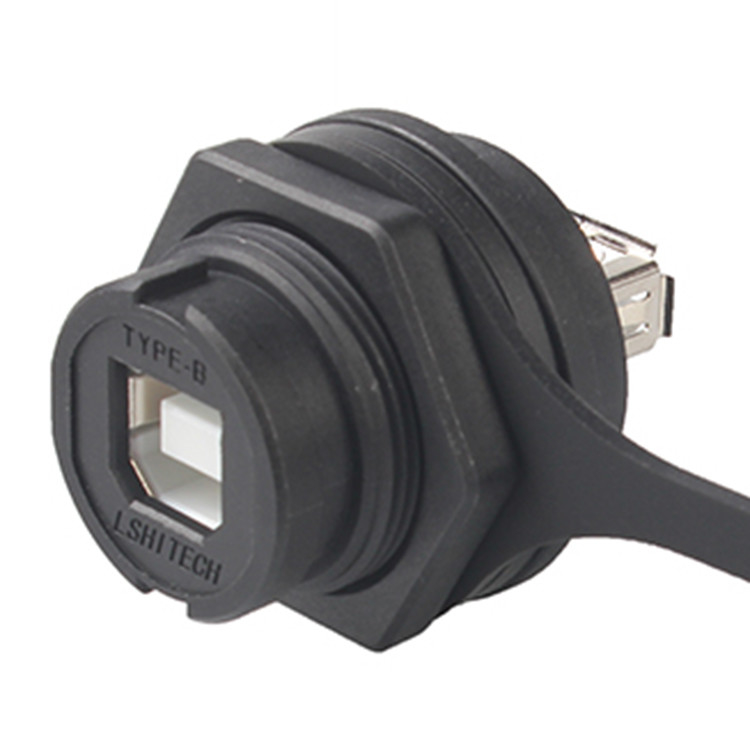

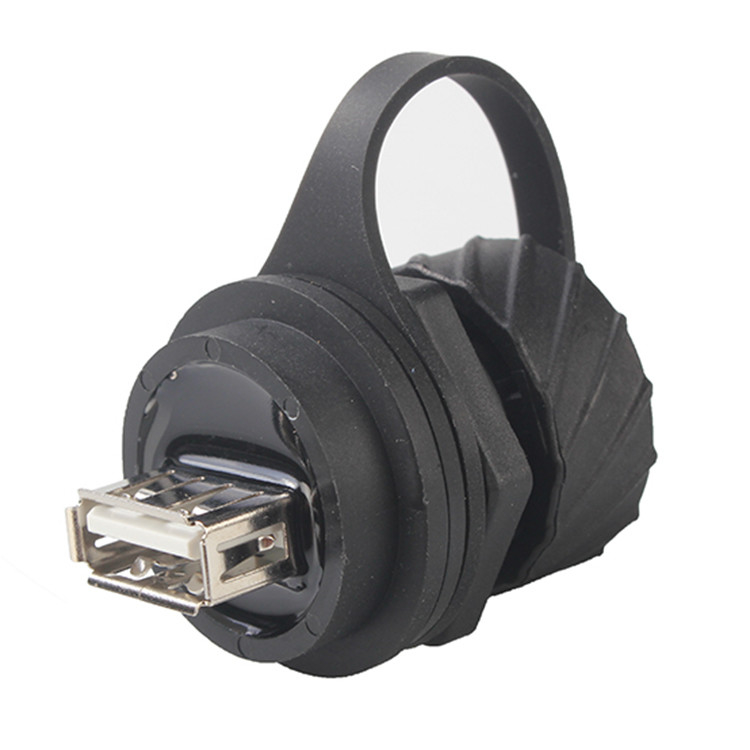

USB 2.0 Type A To USB Type B RJ45 Waterproof Coupler Panel Mount
USB 2.0 Type A To USB Type B RJ45 Waterproof Coupler Panel Mount USB 2.0 Type A To USB Type B RJ45 Waterproof Coupler Panel Mount USB 2.0 Type A To USB Type B RJ45 Waterproof Coupler Panel Mount USB 2.0 Type A To USB Type B RJ45 Waterproof Coupler Panel Mount USB 2.0 Type A To USB Type B RJ45 Waterproof Coupler Panel Mount
Contact Now

USB 2.0 Type A To USB Type B RJ45 Waterproof Coupler Panel Mount

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJT020061

Detail Information
Product Type : USB-BF TO USB 2.0 AF Coupler Jack Type: USB TYPE-B FEMALE/ USB 2.0 TYPE-A FEMALE
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Durrability: 750 CYCLES MIN
Mounting Type: Panel Mount Transfer: Female To Female
High Light:

125V RJ45 Waterproof Coupler

,

1.5A RJ45 Waterproof Coupler

,

125V RJ45 Waterproof Connector

Product Description

USB 2.0 Type A To USB Type B RJ45 Waterproof Coupler Panel Mount

USB 2.0 Type-A to USB Type-B Waterproof Coupler Connector Panel Mount

USB-BF TO USB 2.0 AF Coupler Female To Female Transfer For Printer Waterproof Dustproof Adapter Industrial Grade
In order to match the signal docking of different types of interfaces, we have developed this product, which has waterproof function and is suitable for outdoor.

Materials:
Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:
USB-BF TO USB 2.0 AF Coupler
One to one Port
Connector Length: 33 mm
Operating Temperature:-20°C~+75X
Current Rating:1.5A
Voltage Rating:125V AC
Withstand Voltage:1000V AC
Insulation Resistance:1000MQ
Contact Resistance:30mQ
Service life:750 cycle Min
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


USB 2.0 Type A To USB Type B RJ45 Waterproof Coupler Panel Mount 0
USB 2.0 Type A To USB Type B RJ45 Waterproof Coupler Panel Mount 1
USB-BF TO USB 2.0 AF Coupler (TMZJT020061) Attributes:,

Model:TMZJT020061
Place of Origin:Guangdong of China
Certification:UL,Rohs,Reach,ISO9001
Product Type :USB-BF TO USB 2.0 AF Coupler
Jack Type:USB-BF/ USB 2.0 AF
LED Option:No
Shielded EMI Tabs:No
Voltage rating:125 V
Current rating:1.5 A
Contact resistance:30mΩ
Insulation resistance:1000 MΩ MIN @ 500V DC
Dielectric resistance:1000V AC RMS 50Hz. 1MIN
Durrability:750 CYCLES MIN
Minimal Order:100pcs
Manner of packing :50pcs/tray,500pcs/case
Delivery Time:20 Days
Supply Ability:500k/year


USB-BF TO USB 2.0 AF Coupler (TMZJT020061) Mechnical Drawing:
USB 2.0 Type A To USB Type B RJ45 Waterproof Coupler Panel Mount 2USB 2.0 Type A To USB Type B RJ45 Waterproof Coupler Panel Mount 3
