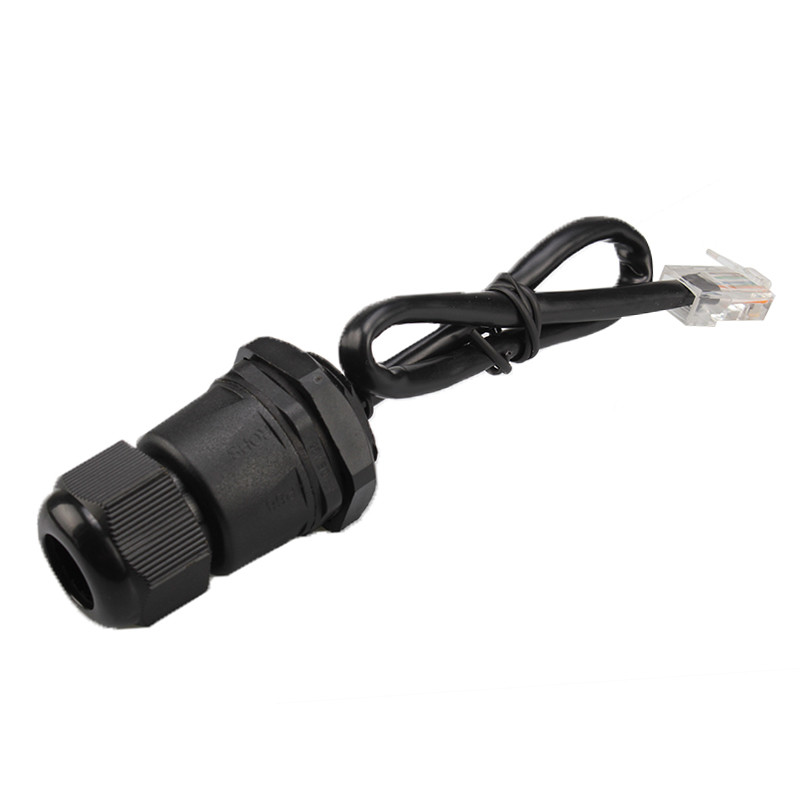

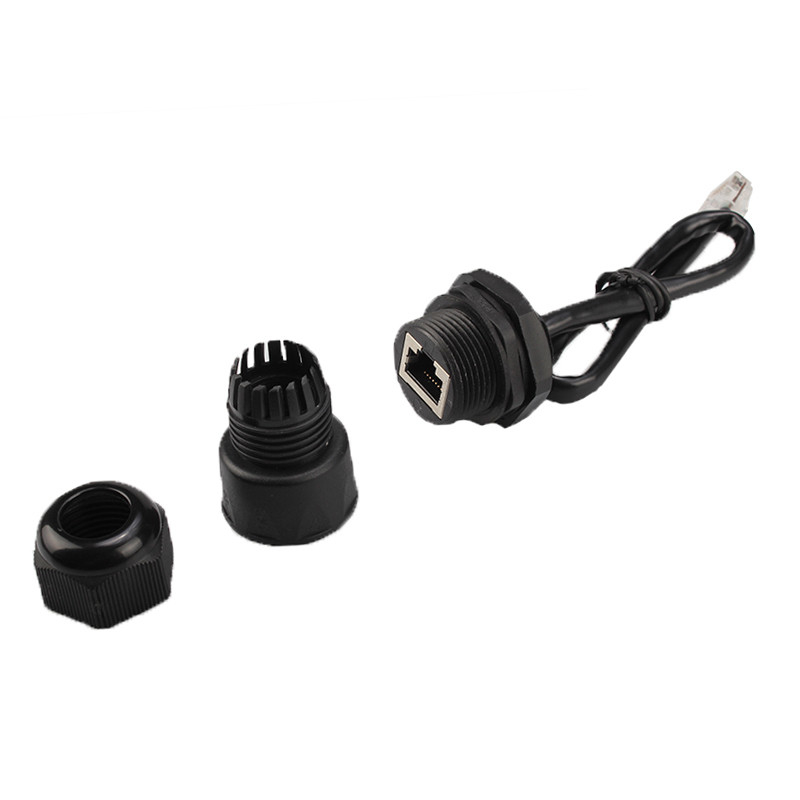

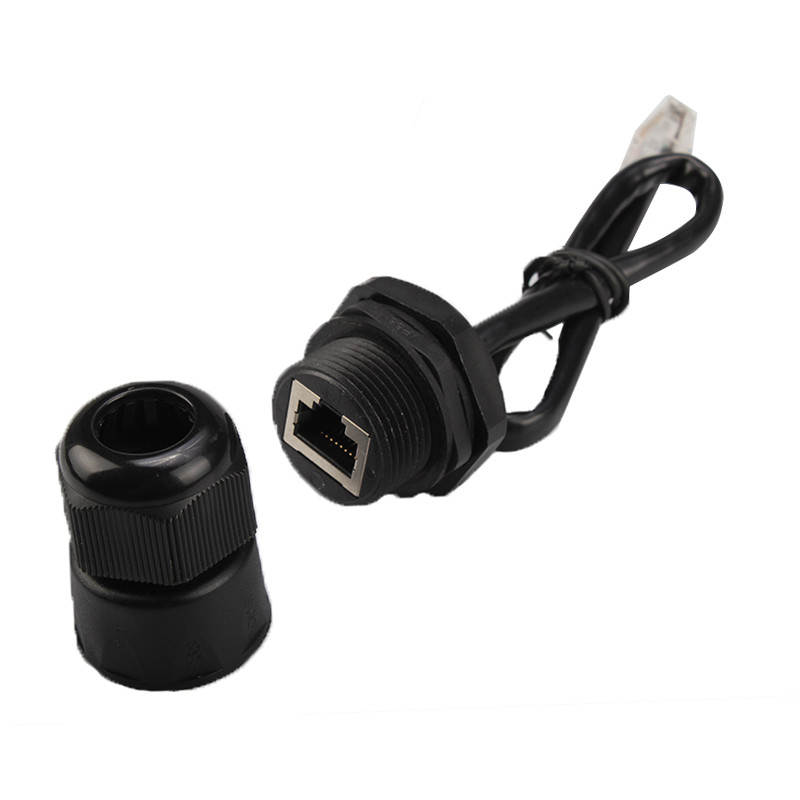

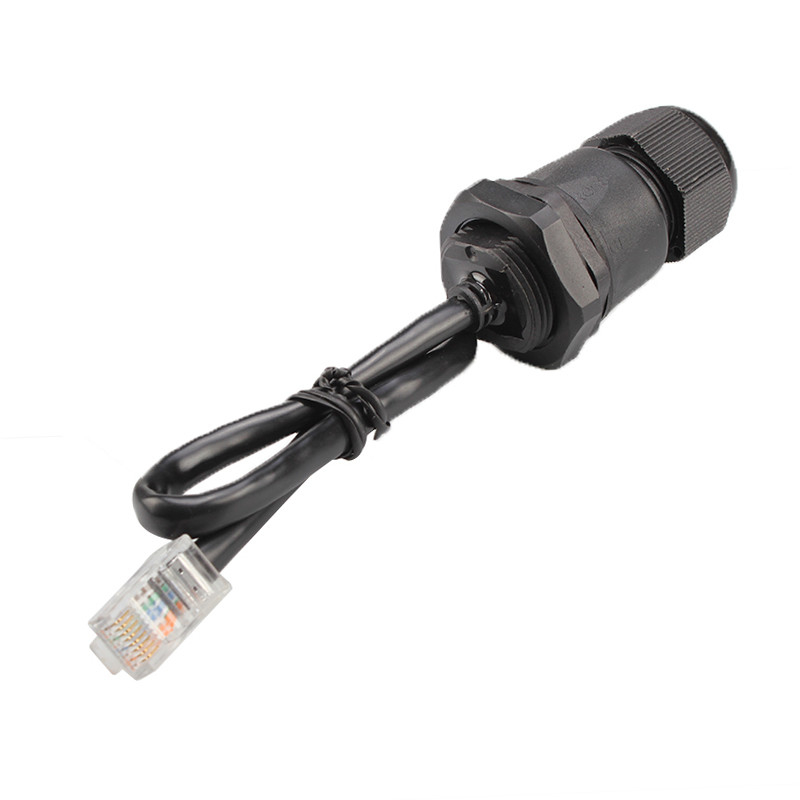

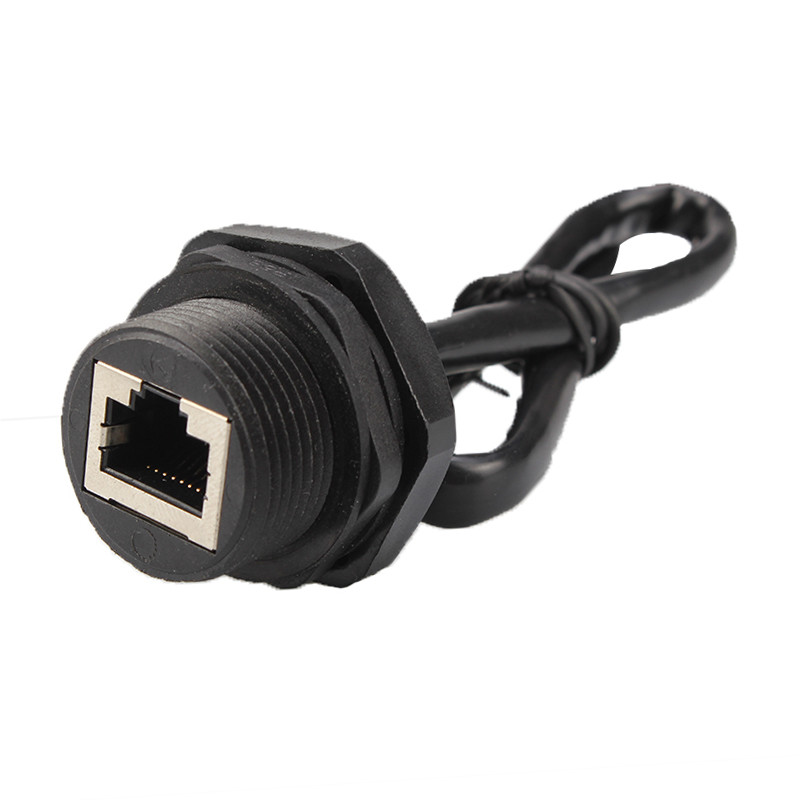

Female To Male RJ45 Network Cable With Waterproof Sets Panel Mount
Female To Male RJ45 Network Cable With Waterproof Sets Panel Mount Female To Male RJ45 Network Cable With Waterproof Sets Panel Mount Female To Male RJ45 Network Cable With Waterproof Sets Panel Mount Female To Male RJ45 Network Cable With Waterproof Sets Panel Mount Female To Male RJ45 Network Cable With Waterproof Sets Panel Mount
Contact Now

Female To Male RJ45 Network Cable With Waterproof Sets Panel Mount

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: Tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMCABLE060245

Detail Information
Product Type : RJ45 F/M Network Cable Jack Type: RJ45
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Durrability: 750 CYCLES MIN
Length: Customized Mounting Type: Panel Mount
Transfer: Female To Male
High Light:

Female To Male RJ45 Network Cable

,

ROHS RJ45 Network Cable

,

ROHS Rj45 Ethernet Cable

Product Description

Female To Male RJ45 Network Cable With Waterproof Sets Panel Mount



RJ45 plug to Female Network Cable With Waterproof Sets-Panel Mount



RJ45 plug to Female Network Cable (TMCABLE060245)Attributes:

Model: TMCABLE060245
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 F/M Network Cable
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 100pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 500K/year

RJ45 plug to Female Network Cable

RJ45 plug to Female Network Cable (TMCABLE060245)Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.


RJ45 plug to Female Network Cable (TMCABLE060245)Product Structure:
RJ45 Modular Jack
Connector Length: 27.6 mm
Connector Width: 14.40 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



RJ45 plug to Female Network Cable (TMCABLE060245)Mechnical Drawing:

Female To Male RJ45 Network Cable With Waterproof Sets Panel Mount 1
