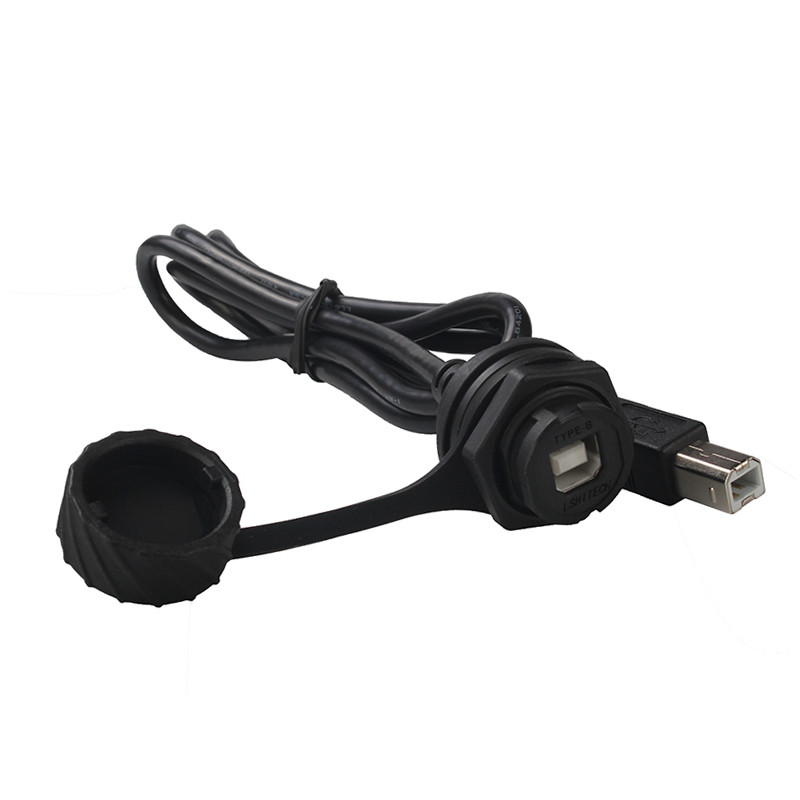

Panel Mount USB B Male To Female RJ45 Waterproof Cable For Printer
Panel Mount USB B Male To Female RJ45 Waterproof Cable For Printer
Contact Now

Panel Mount USB B Male To Female RJ45 Waterproof Cable For Printer

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJX021092

Detail Information
Product Type : USB B F/M Waterproof Cable Jack Type: RJ45
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Durrability: 750 CYCLES MIN
High Light:

USB B Male To Female Waterproof Cable

,

Panel Mount RJ45 Waterproof Cable

,

RJ45 Waterproof Cable For Printer

Product Description

USB B Male to Female Waterproof Cable For Printer outdoor- Panel Mount





Data Sheet Download

aa

Generally speaking, USB B Male to Female Waterproof Cable is more used for printing equipment and is used in water environment. The length can be customized. When you don't use it, screw on the waterproof cap to isolate water.



USB B Male to Female Waterproof Cable Usage scenario:

Vending machine

Outdoor display screen

Outdoor license plate recognition equipment

Smart home device



USB B Male to Female Waterproof Cable (TMZJX021092)Attributes:

Model: TMZJX021092
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : USB B F/M Waterproof Cable
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 100pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 500K/year



Panel Mount USB B Male To Female RJ45 Waterproof Cable For Printer 0

USB B Male to Female Waterproof Cable (TMZJX021092)Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.


USB B Male to Female Waterproof Cable (TMZJX021092)Product Structure:
USB B Male to Female Waterproof Cable

Cable: 28AWG*1P+24AWG*2C BALCK OD4.5mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



USB B Male to Female Waterproof Cable (TMZJX021092)Mechnical Drawing:

Panel Mount USB B Male To Female RJ45 Waterproof Cable For Printer 1
