10 pin F/F Straight Through RJ48 Waterproof Coupler Shield 180 Degrees Panel Mount

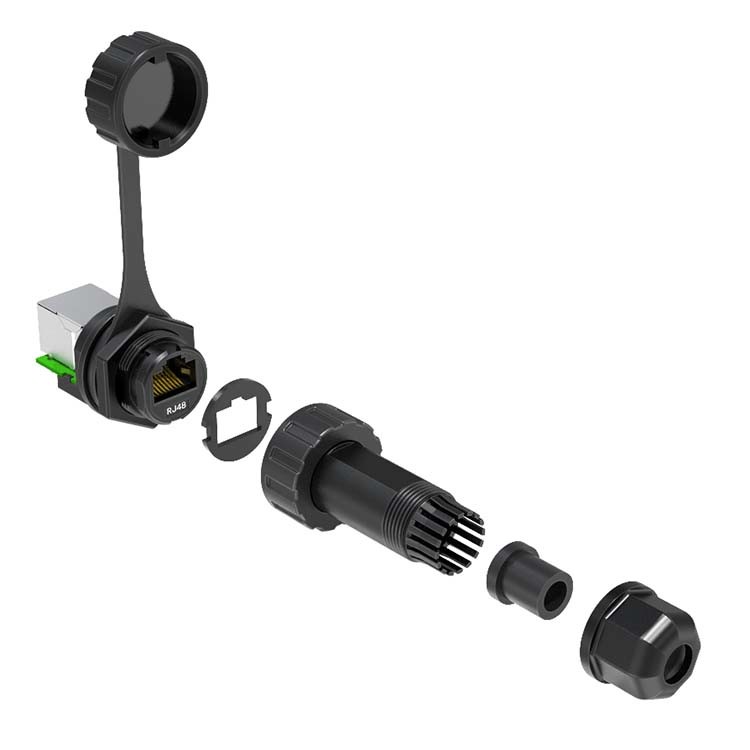

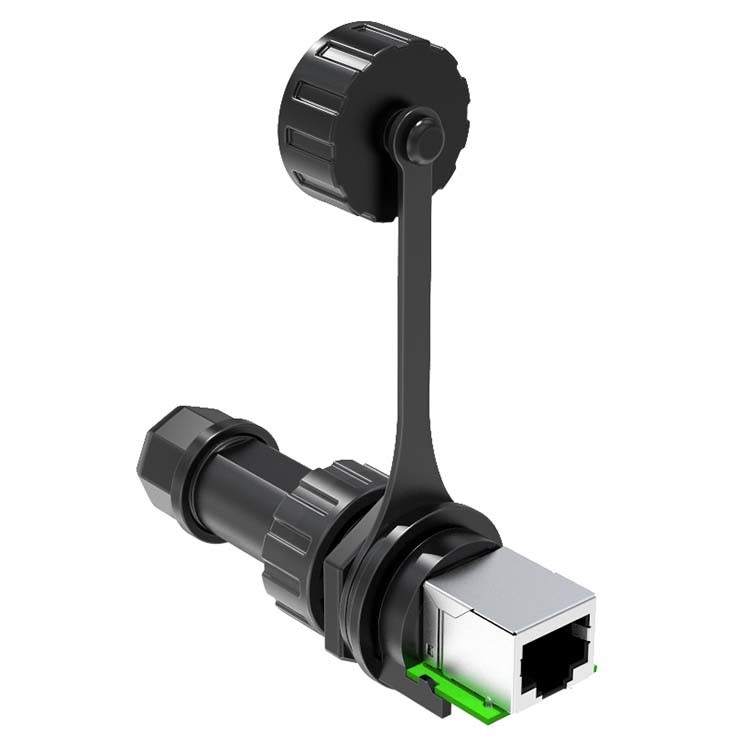

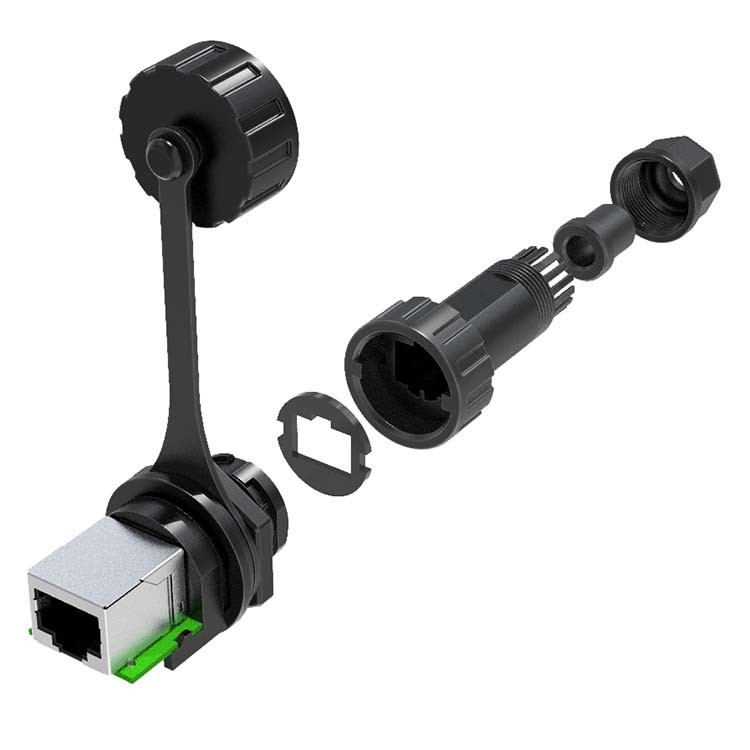

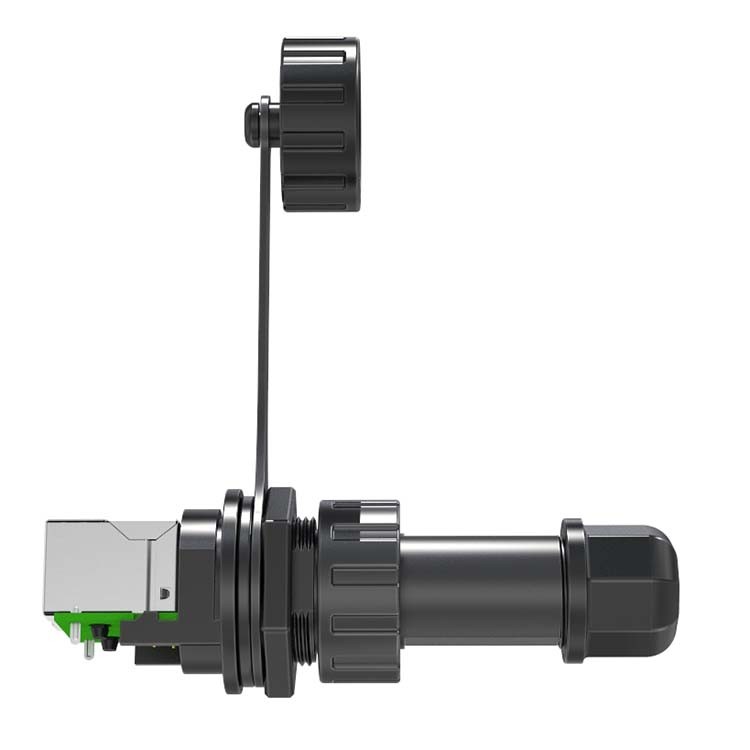

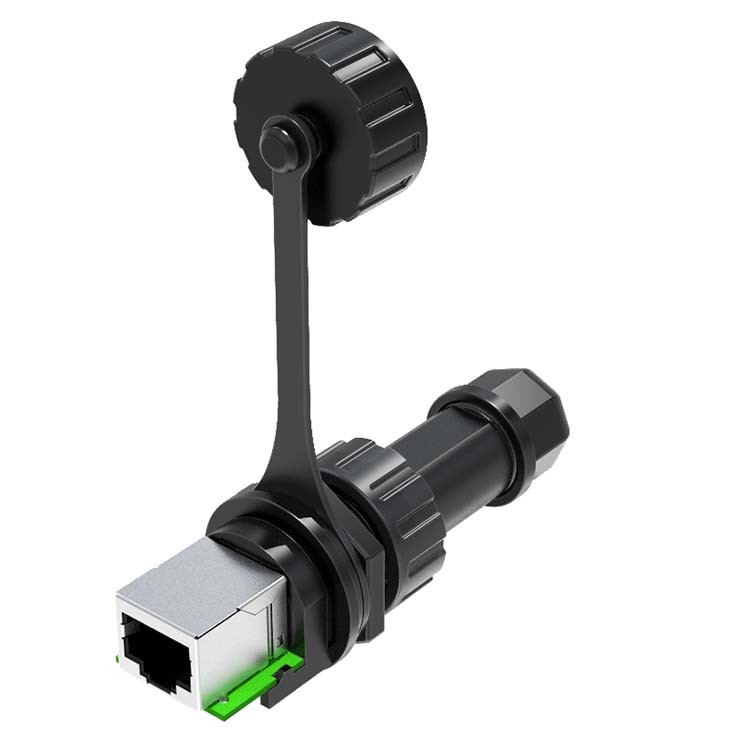

10 pin F/F Straight Through RJ48 Waterproof Coupler Shield 180 Degrees Panel Mount 10 pin F/F Straight Through RJ48 Waterproof Coupler Shield 180 Degrees Panel Mount 10 pin F/F Straight Through RJ48 Waterproof Coupler Shield 180 Degrees Panel Mount 10 pin F/F Straight Through RJ48 Waterproof Coupler Shield 180 Degrees Panel Mount 10 pin F/F Straight Through RJ48 Waterproof Coupler Shield 180 Degrees Panel Mount
Contact Now

10 pin F/F Straight Through RJ48 Waterproof Coupler Shield 180 Degrees Panel Mount

Minimum Order Quantity : 50PCS Price : Supportive
Packaging Details : 30PCS/box Delivery Time : 20days
Payment Terms : L/C, T/T Supply Ability : 50K PCS/MONTH
Place of Origin: Guangdong, China (Mainland) Brand Name: tmulink
Certification: CE/RoHS/ISO9001 Model Number: TMPMWRJ0006

Detail Information
Mounting Style: In-Line Jack Type: RJ45
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Durrability: 750 CYCLES MIN
Termination Style: Feed Through
High Light:

RJ48 Waterproof Coupler

,

F/F Straight Through Waterproof Coupler

,

RJ48 Waterproof Ethernet Coupler

Product Description

10 pin F/F Straight Through RJ48 Waterproof Coupler Shield 180 Degrees Panel Mount 0

RJ48 Coupler Panel Mount Product Description:

The shell of the product is made of PA66 material, which has good fire prevention and oxidation resistance. Reasonable design can be waterproof at the same time. The waterproof cap is connected with the connector theme with silicon tape to avoid accidental loss of the waterproof cap.

RJ48 Coupler Panel Mount Materials:
Housing : PA66,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm ,GOLD PLATING 6U" OVER NICKEL IN CONTACT ,TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.



RJ48 Coupler Panel Mount Product Datasheet & Structure:
One to one Port
Connector Length: 33 mm
Operating Temperature:-20°C~+75X
Current Rating:1.5A
Voltage Rating:125V AC
Withstand Voltage:1000V AC
Insulation Resistance:1000MQ
Contact Resistance:30mQ
Service life:750 cycle Min
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

RJ48 Coupler Panel Mount Attributes:,

Model:
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ48 TO RJ48/ 10PIN TO 10PIN
Jack Type: RJ48
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 1000 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 50pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 500k/year


RJ48 Coupler Panel Mount Mechnical Drawing:

10 pin F/F Straight Through RJ48 Waterproof Coupler Shield 180 Degrees Panel Mount 1
