Waterproof Rj45 Ethernet Connector , Panel Mount Rj45 Ethernet Connector

Product Description

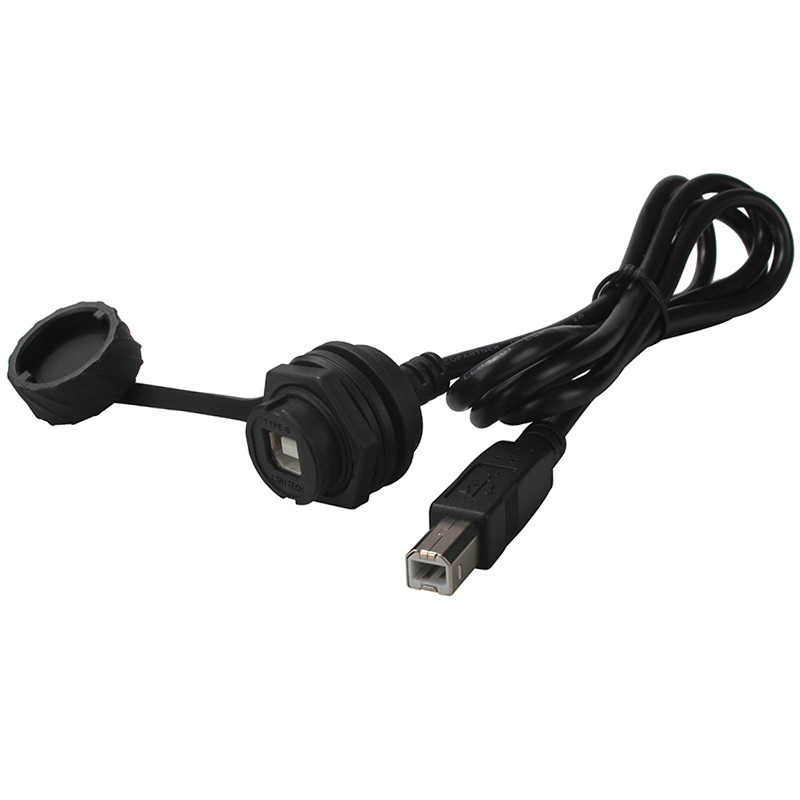

USB B Male to Female Waterproof Cable For Printer outdoor- Panel Mount

Data Sheet Download

Generally speaking, USB B Male to Female Waterproof Cable is more used for printing equipment and is used in water environment. The length can be customized. When you don't use it, screw on the waterproof cap to isolate water.

USB B Male to Female Waterproof Cable Usage scenario:

Vending machine

Outdoor display screen

Outdoor license plate recognition equipment

Smart home device

USB B Male to Female Waterproof Cable (TMZJX021092)Attributes:

USB B Male to Female Waterproof Cable (TMZJX021092)Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.

USB B Male to Female Waterproof Cable (TMZJX021092)Product Structure:
USB B Male to Female Waterproof Cable

Cable: 28AWG*1P+24AWG*2C BALCK OD4.5mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

USB B Male to Female Waterproof Cable (TMZJX021092)Mechnical Drawing:

An Ethernet coupler, also named as an RJ45 coupler, is a plastic or metal connector that has open ends on both sides and these open ends are usually the female ports. These tiny, rectangular couplers are designed to join two Ethernet cables in order to connect different devices. In layman’s terms, the Ethernet coupler functions as a knot.
When inserting Ethernet cables into the Ethernet coupler, the wires in the coupler will make contact with those in the cables and then the connection will be made.
