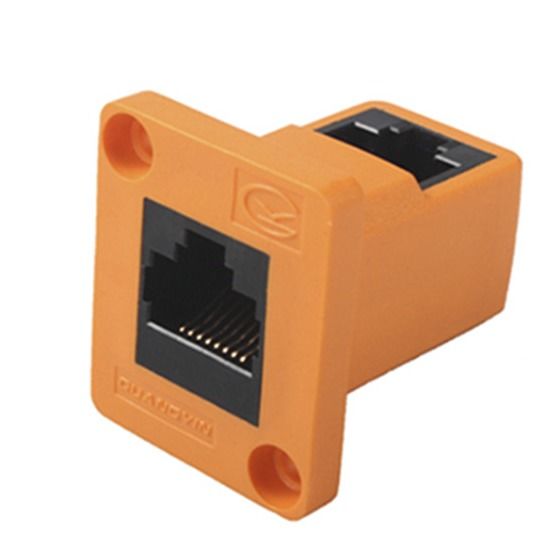

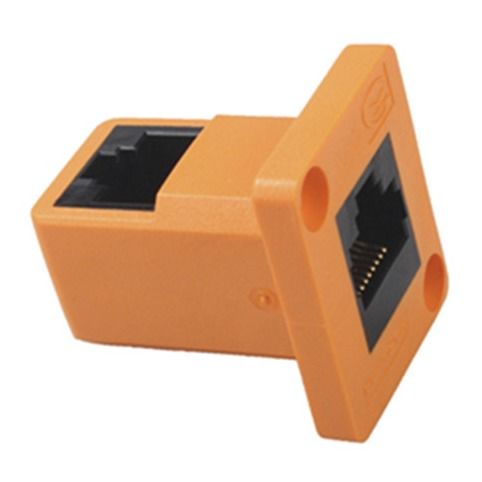

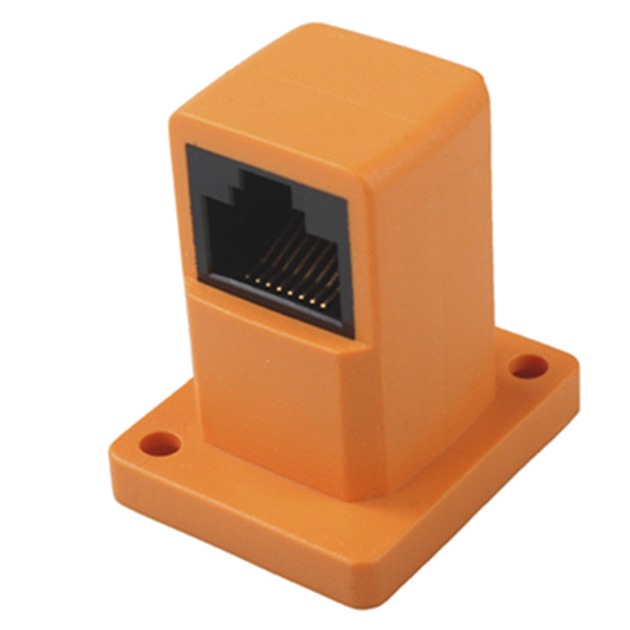

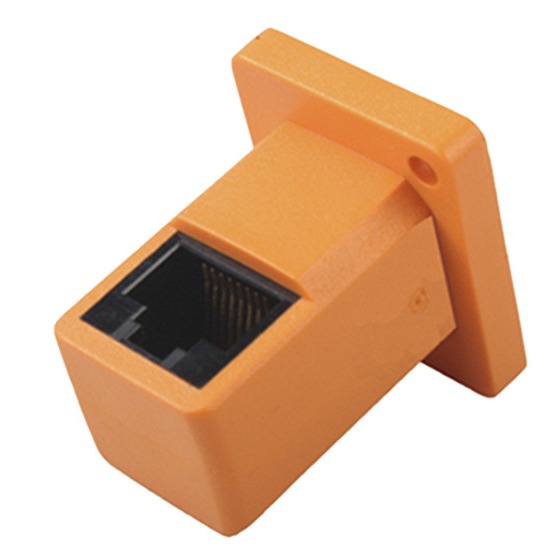

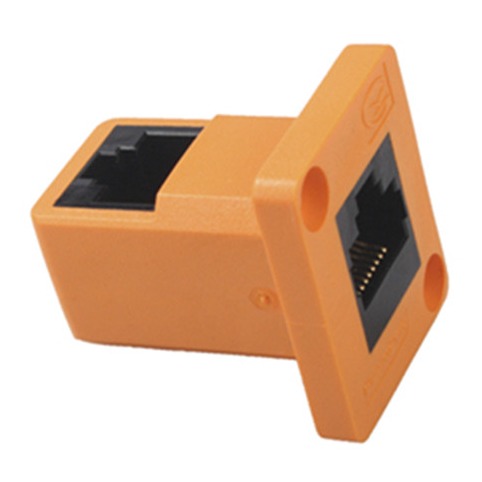

90 Degree RJ45 Cable Coupler 8P8C Network cable extension adapter
90 Degree RJ45 Cable Coupler 8P8C Network cable extension adapter 90 Degree RJ45 Cable Coupler 8P8C Network cable extension adapter 90 Degree RJ45 Cable Coupler 8P8C Network cable extension adapter 90 Degree RJ45 Cable Coupler 8P8C Network cable extension adapter
Contact Now

90 Degree RJ45 Cable Coupler 8P8C Network cable extension adapter

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 1pcs/bag Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJT020021

Detail Information
Shielded EMI Tabs: No LED Option: No
Number Of Positions: 8 Terminals Per Port: 8
Voltage Rating: 125V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
High Light:

Rohs RJ45 Cable Coupler

,

125V Shielded Rj45 Connector

,

8P8C Shielded Rj45 Connector

Product Description

90 Degree RJ45 Cable Coupler 8P8C Network Cable Extension Adapter



90 Degree RJ45 Female Adapter 8P8C Network Cable Extension 125 Voltage



90 degree RJ45 through adapter, 8P8C Network cable extension adapter



90 Degree RJ45 Through Adapter (TMZJT020021) Materials:


l CONNECTOR :
n Housing:PBT,BLACK,UL94V-0
n Contact material:OD=0.3*0.4mm flat needle nickel plating, tin plating, contact area gold plating( RoHS )
n Gold plating:6u” Optional
n Shielding Shell: NO
l Shell: PVC Black UL94V-0(RoHS)
l All materials mates with modulat plug conforming to FCC part 68. subpart F.


90 Degree RJ45 Through Adapter (TMZJT020021) Product Structure:


l RJ45 Modular Jack
l 1 x 1 Port / Single Port / One Port
l RJ45 Connector Length: 33 mm
l RJ45 Connector Width: 26 mm
l RJ45 Connector Height: 31 mm
l RJ45 Connector Lock hole spacing: 19*24 mm
l 8P8C ( 8 positions 8 contacts )
l 90°Orientation
l Without LED, let know the connection status
l Without Shield,can be customized as required
l We Support Custom service as required



90 Degree RJ45 Through Adapter (TMZJT020021) Attributes:



Model: TMZJT020021
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 2000 pcs
Package: 100pcs/bag
Carton size: /
Delivery Time: 20 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500K/year



90 Degree RJ45 Through Adapter (TMZJT020021) Mechnical Drawing:



90 Degree RJ45 Cable Coupler 8P8C Network cable extension adapter 0
