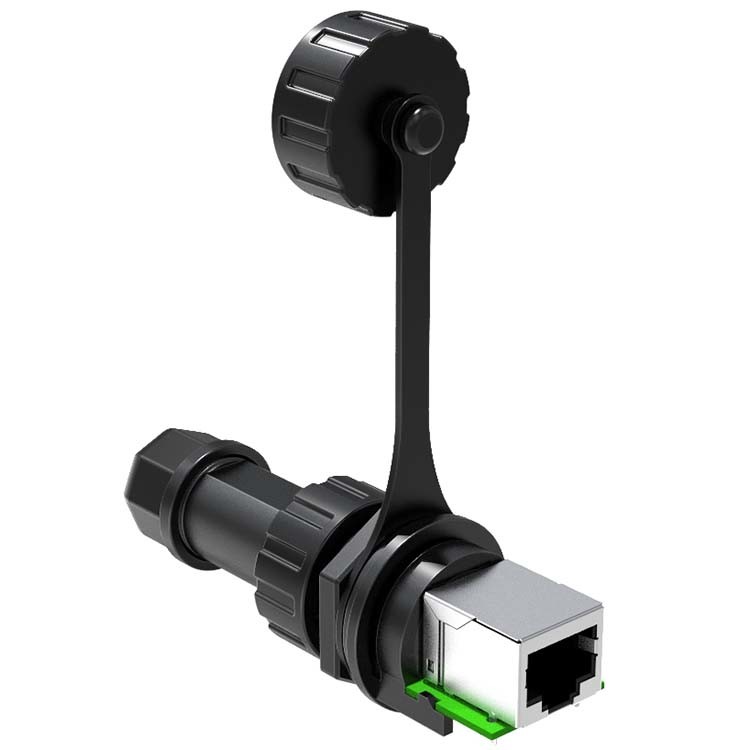

Waterproof Female To Female 125V RJ45 Cable Coupler For Cable Extension
Waterproof Female To Female 125V RJ45 Cable Coupler For Cable Extension
Contact Now

Waterproof Female To Female 125V RJ45 Cable Coupler For Cable Extension

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMPMWRJ0001

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 40mΩ Durrability: 750 CYCLES MIN
High Light:

125V RJ45 Cable Coupler

,

8P8C RJ45 Cable Coupler

,

1x1 Rj45 Female To Female Adapter

Product Description

RJ45 Network Adapter Female To Female Waterproof Dustproof Coupler Industrial Grade For Cable Extension

Drawing data sheet Download


RJ45 Network Adapter Female (TMPMWRJ0001) Attributes:

Model: TMPMWRJ0001
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 40mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Network Adapter Female (TMPMWRJ0001) Mechnical Drawing:



Waterproof Female To Female 125V RJ45 Cable Coupler For Cable Extension 0



Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: Stainless Steel
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Operating Temperature:-20°C~+75X

Current Rating:1.5A

Voltage Rating:125V AC

Withstand Voltage:1000V AC

Insulation Resistance:1000MQ

Contact Resistance:30mQ

Service life:750 cycle Min




Product Structure:
RJ45 Modular Jack
1 x 1 Port / Single Port / One Port
RJ45 Connector Width: 28.71 mm
RJ45 Connector Height: 43.20 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
