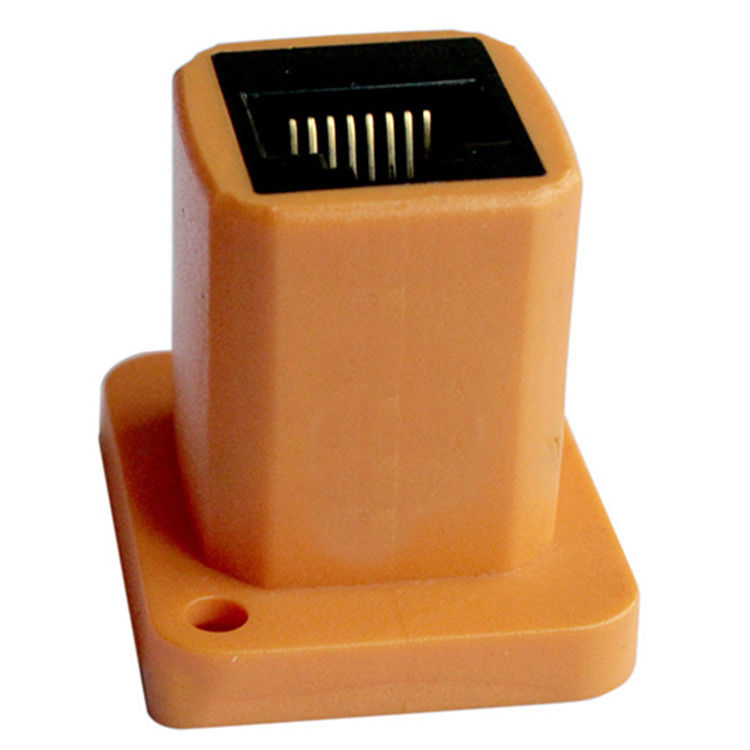

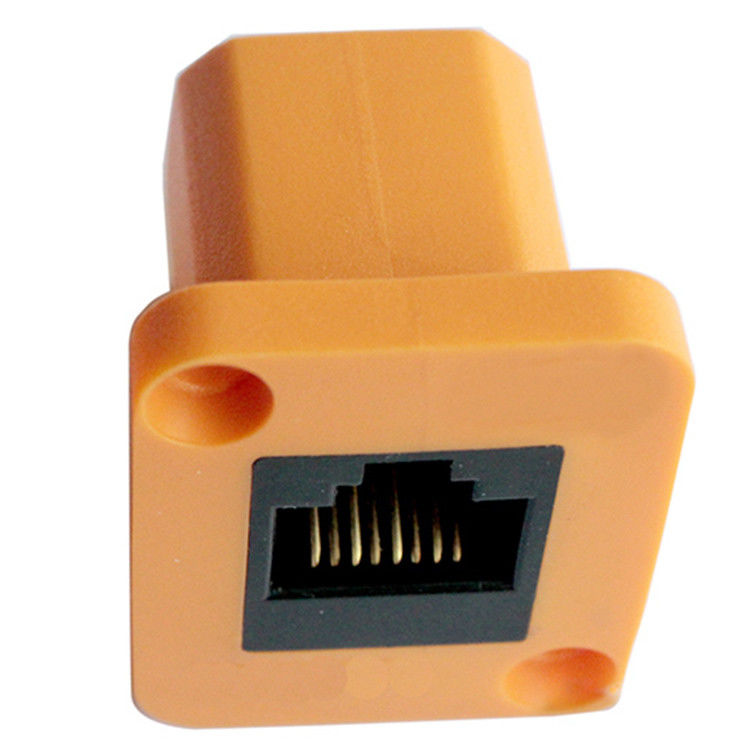

125V Female To Female 8P8C RJ45 Network Connector
125V Female To Female 8P8C RJ45 Network Connector 125V Female To Female 8P8C RJ45 Network Connector
Contact Now

125V Female To Female 8P8C RJ45 Network Connector

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 1pcs/bag Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJT020021

Detail Information
Shielded EMI Tabs: No LED Option: No
Number Of Positions: 8 Terminals Per Port: 8
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
High Light:

8P8C RJ45 Network Connector

,

UL94V-0 RJ45 Network Connector

,

125V RJ45 Female Adapter

Product Description

RJ45 Female To Female Coupler 8P8C Network Connector Extension 125 Voltage



Materials:


 CONNECTOR :
 Housing:PBT,BLACK,UL94V-0
 Contact material:OD=0.3*0.4mm flat needle nickel plating, tin plating, contact area gold plating( RoHS )
 Gold plating:6u” Optional
 Shielding Shell: NO
 Shell: PVC Black UL94V-0(RoHS)
 All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


 RJ45 Modular Jack
 1 x 1 Port / Single Port / One Port
 RJ45 Connector Length: 33 mm
 RJ45 Connector Width: 26 mm
 RJ45 Connector Height: 31 mm
 RJ45 Connector Lock hole spacing: 19*24 mm
 8P8C ( 8 positions 8 contacts )
 90°Orientation
 Without LED, let know the connection status
 Without Shield,can be customized as required
 We Support Custom service as required



RJ45 Without Transformer (TMZJT020021) Attributes:



Model: TMZJT020020
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 2000 pcs
Package: 100pcs/bag
Carton size: /
Delivery Time: 20 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500K/year



RJ45 Female Connector ( TMZJT020020) Mechnical Drawing:

125V Female To Female 8P8C RJ45 Network Connector 0
