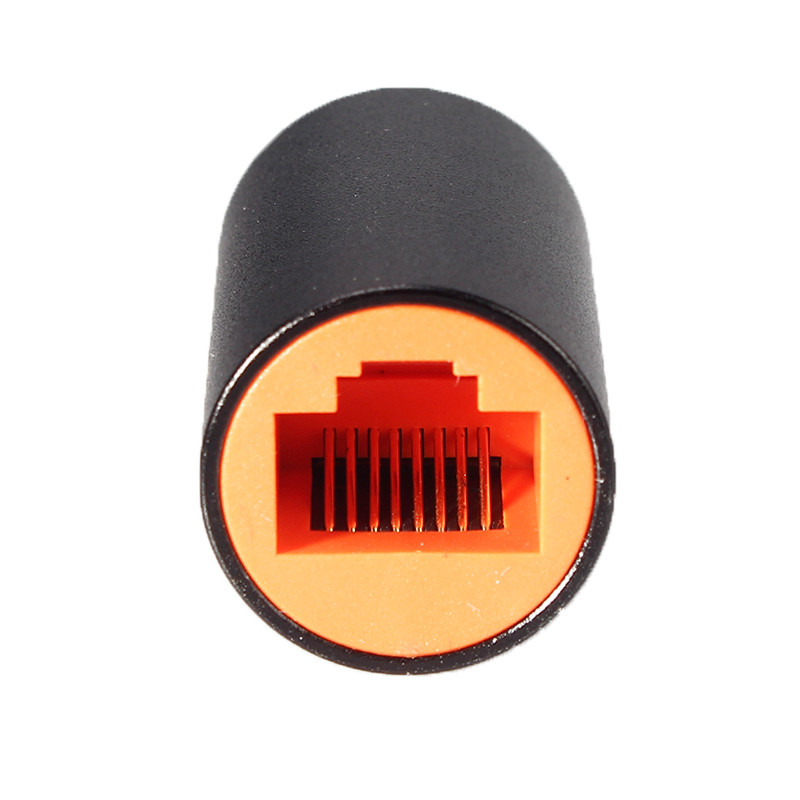

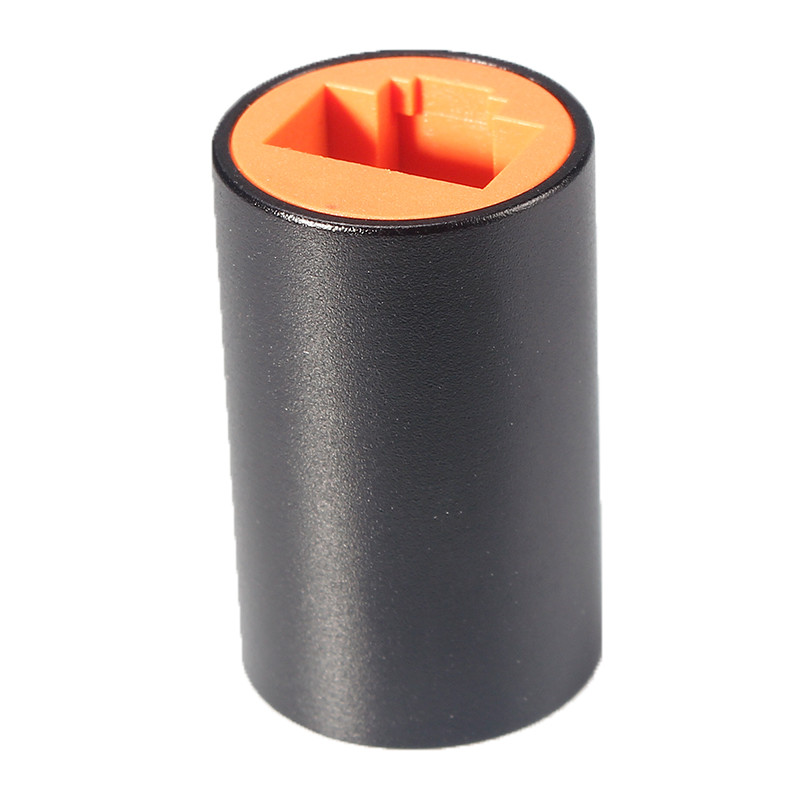

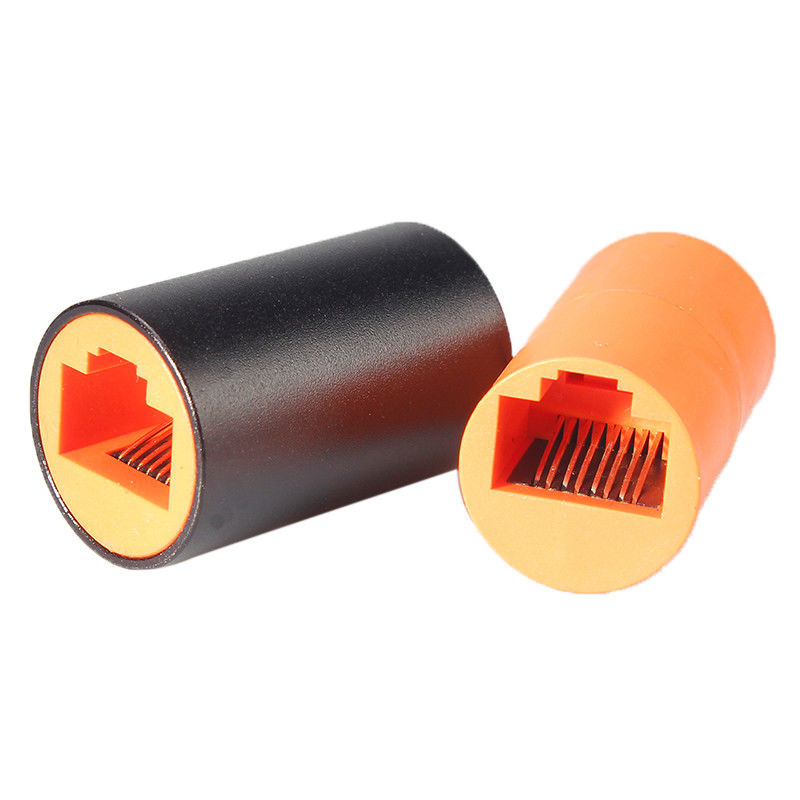

180 Degree Aluminum RJ45 Female Adapter With Shell 8P8C Round Straight
180 Degree Aluminum RJ45 Female Adapter With Shell 8P8C Round Straight 180 Degree Aluminum RJ45 Female Adapter With Shell 8P8C Round Straight 180 Degree Aluminum RJ45 Female Adapter With Shell 8P8C Round Straight
Contact Now

180 Degree Aluminum RJ45 Female Adapter With Shell 8P8C Round Straight

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 40pcs/tray Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZTG811EX004201411000

Detail Information
Shielded EMI Tabs: No Jack Type: RJ45
Product Type: RJ45 Modular Connector Number Of Positions: 8
Terminals Per Port: 8 LED Option: No
Voltage Rating: 30Vmax Current Rating: 1.5A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability：: 750 CYCLES MIN
High Light:

8P8C Round Straight RJ45 Adapter

,

RJ45 Female Adapter With Shell

,

180 Degree Aluminum RJ45 Female Adapter

Product Description

180 degree Aluminum with shell,8P8C Round straight adapter with RJ45 Modular connector



RJ45 Modular connector(TMZTG811EX004201411000) Materials:


CONNECTOR :
Housing:PBT,WHITE,UL94V-0
Contact material:OD=0.3*0.4mm flat needle nickel plating,contact area gold plating( RoHS )
Gold plating:6u” Optional
Shielding Shell: NO
Shell: AL Red (RoHS)





RJ45 Modular connector(TMZTG811EX004201411000) Attributes:



Model: TMZTG811EX004201411000
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 3600 pcs
Package: 40pcs/tray
Carton size: /
Delivery Time: 20 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500K/year



RJ45 Modular connector(TMZTG811EX004201411000) Mechnical Drawing:



180 Degree Aluminum RJ45 Female Adapter With Shell 8P8C Round Straight 0

180 Degree Aluminum RJ45 Female Adapter With Shell 8P8C Round Straight 1
