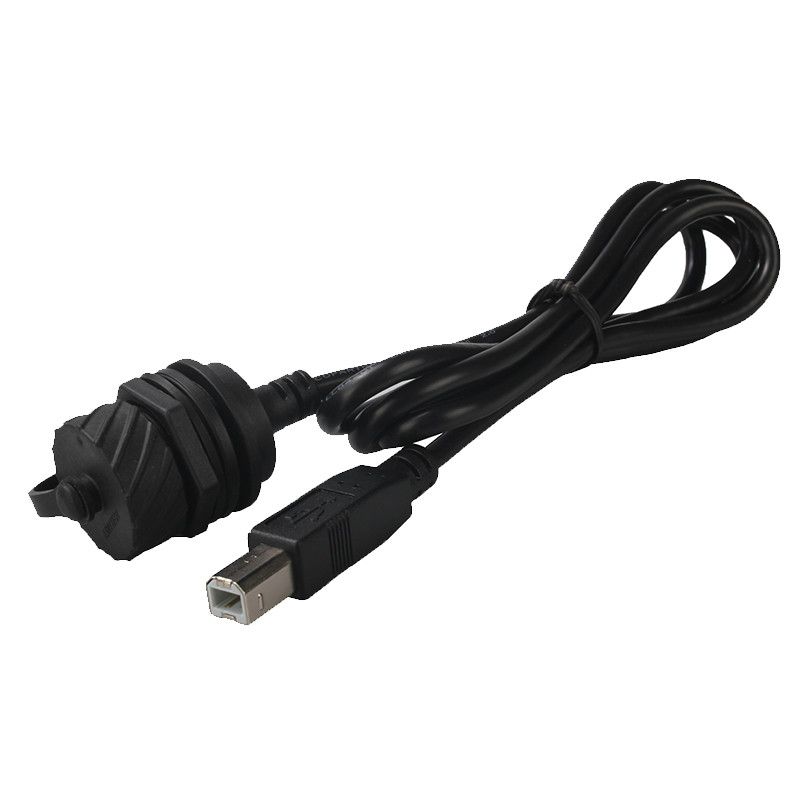

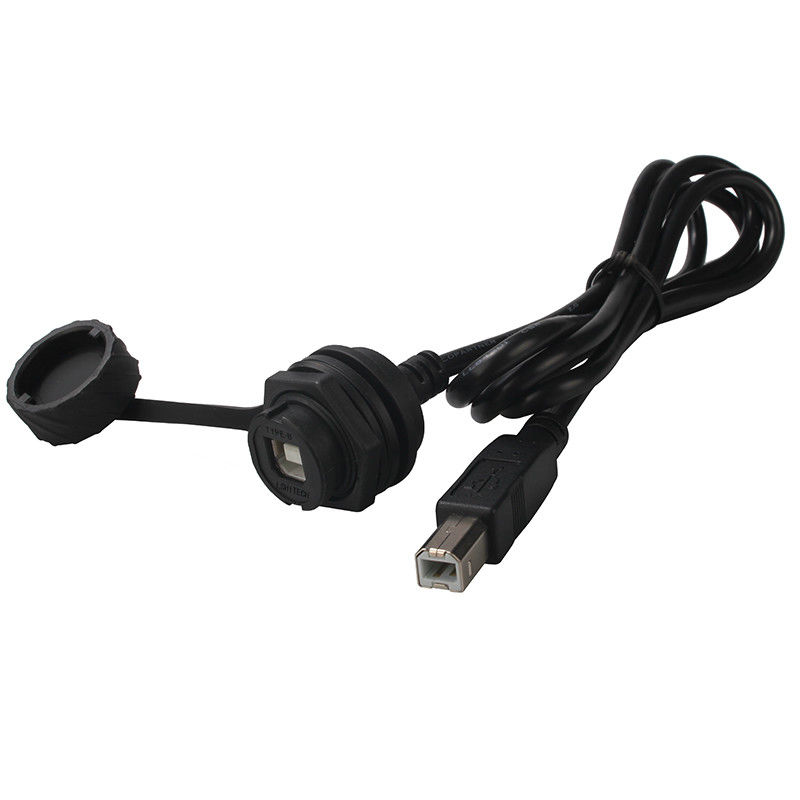

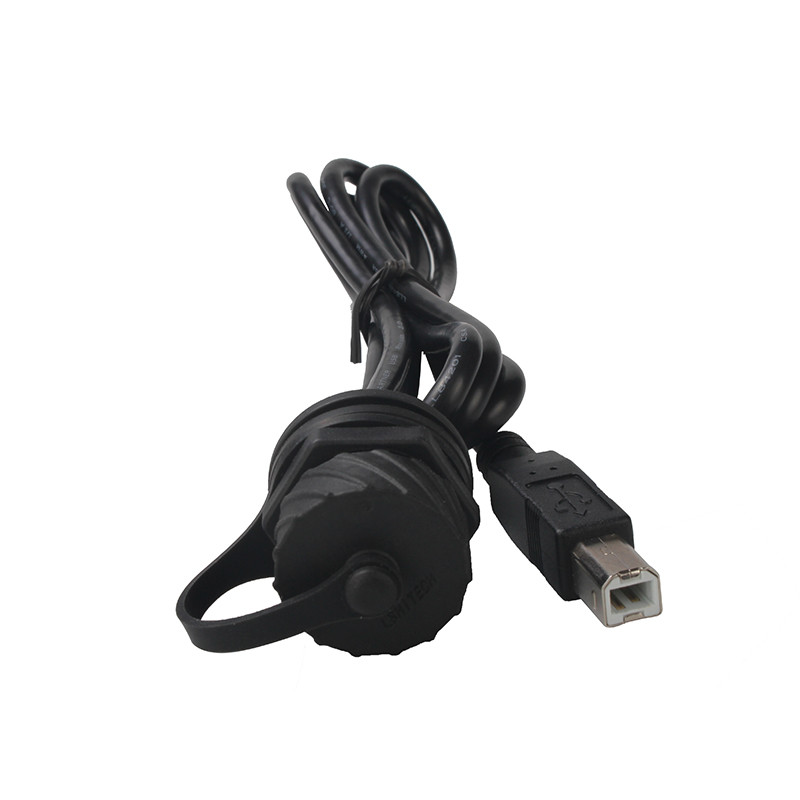

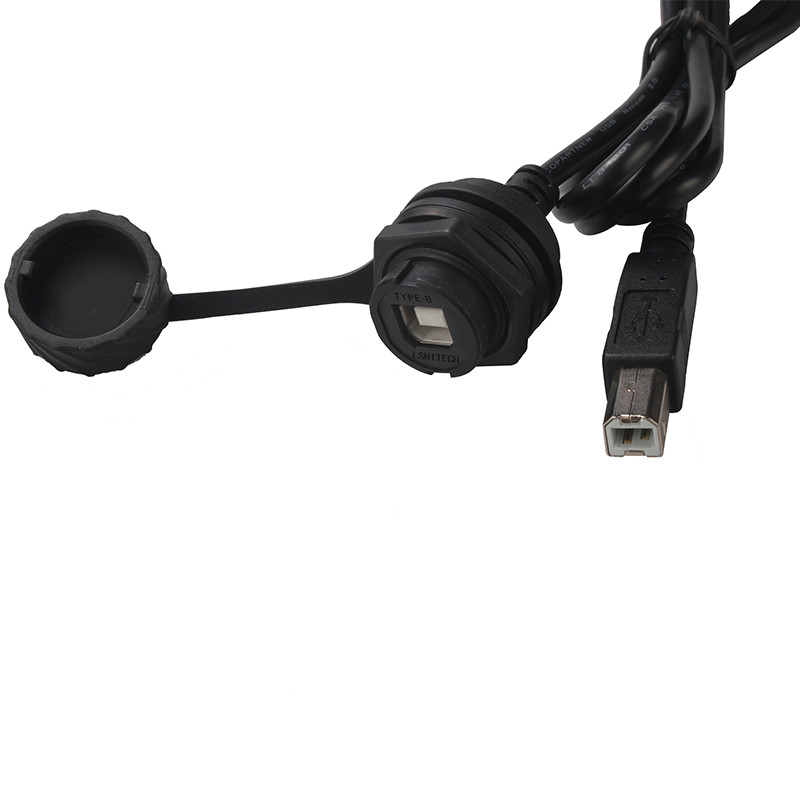

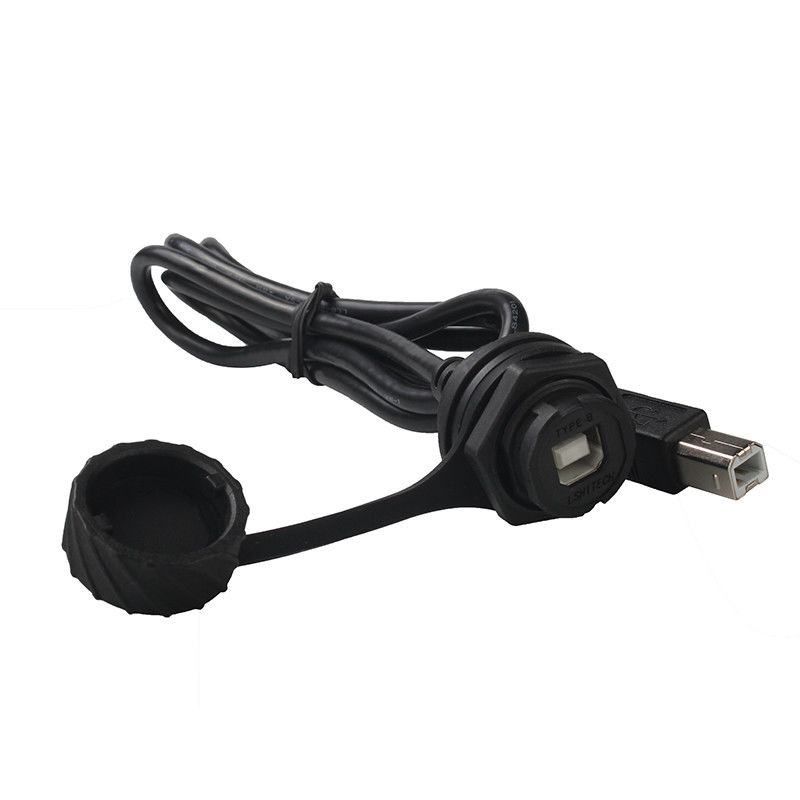

Waterproof Male To Female USB B Cable For Printer Signal Transmission
Waterproof Male To Female USB B Cable For Printer Signal Transmission Waterproof Male To Female USB B Cable For Printer Signal Transmission Waterproof Male To Female USB B Cable For Printer Signal Transmission Waterproof Male To Female USB B Cable For Printer Signal Transmission Waterproof Male To Female USB B Cable For Printer Signal Transmission
Contact Now

Waterproof Male To Female USB B Cable For Printer Signal Transmission

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJX021092

Detail Information
Product Type : USB B F/M Waterproof Cable Jack Type: RJ45
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Durrability: 750 CYCLES MIN
High Light:

Male To Female USB B Cable

,

Printer Signal Transmission USB B Cable

,

Waterproof Male To Female Cable

Product Description

USB B Male to Female Waterproof Cable For Printer Signal Transmission With Dust Cover Cable Support fixed on panel



USB B Male to Female Waterproof Cable (TMZJX021092)Attributes:

Model: TMZJX021092
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : USB B F/M Waterproof Cable
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 100pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



USB B Male to Female Waterproof Cable For Printer Signal Transmission With Dust Cover Cable Support fixed on panel

USB B Male to Female Waterproof Cable (TMZJX021092)Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.


USB B Male to Female Waterproof Cable (TMZJX021092)Product Structure:
USB B Male to Female Waterproof Cable

Cable: 28AWG*1P+24AWG*2C BALCK OD4.5mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



USB B Male to Female Waterproof Cable (TMZJX021092)Mechnical Drawing:

Waterproof Male To Female USB B Cable For Printer Signal Transmission 1
