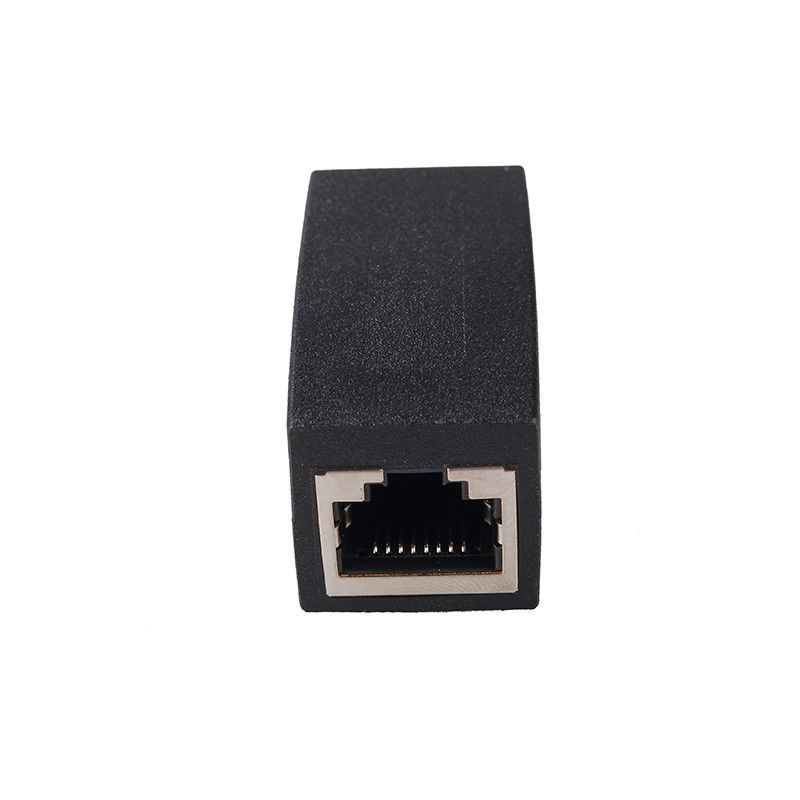

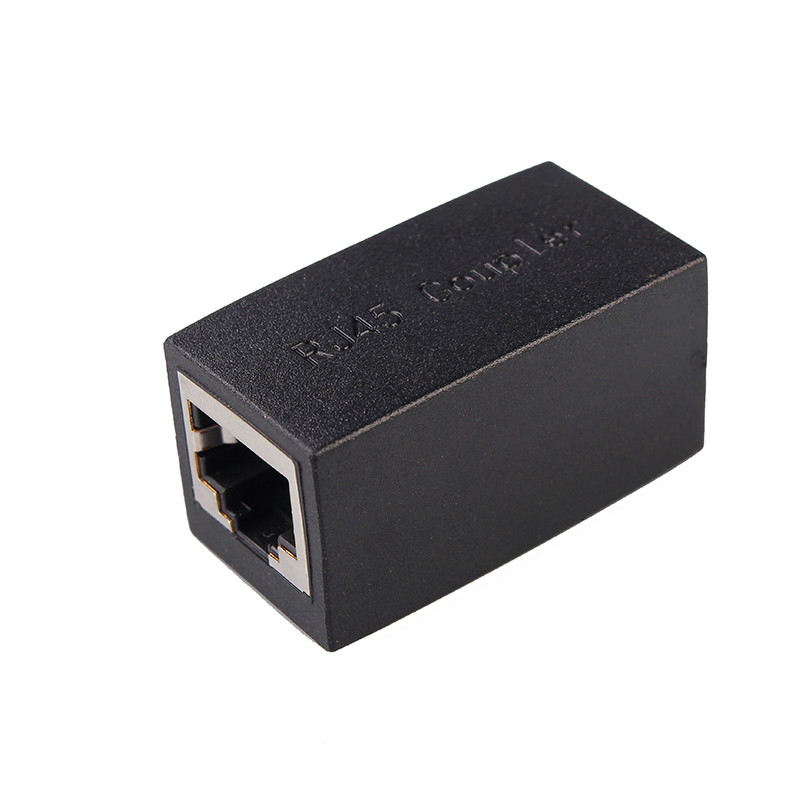

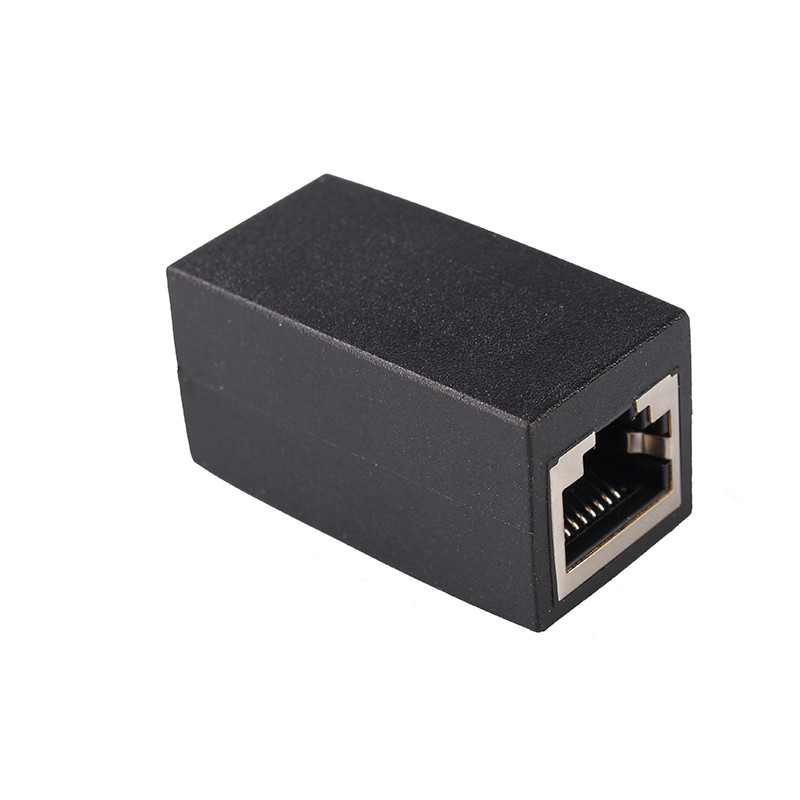

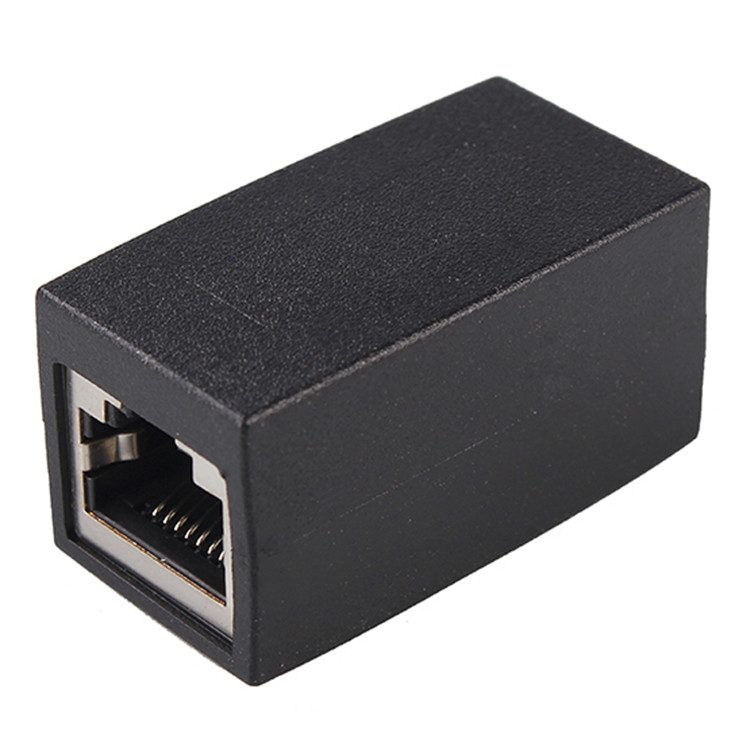

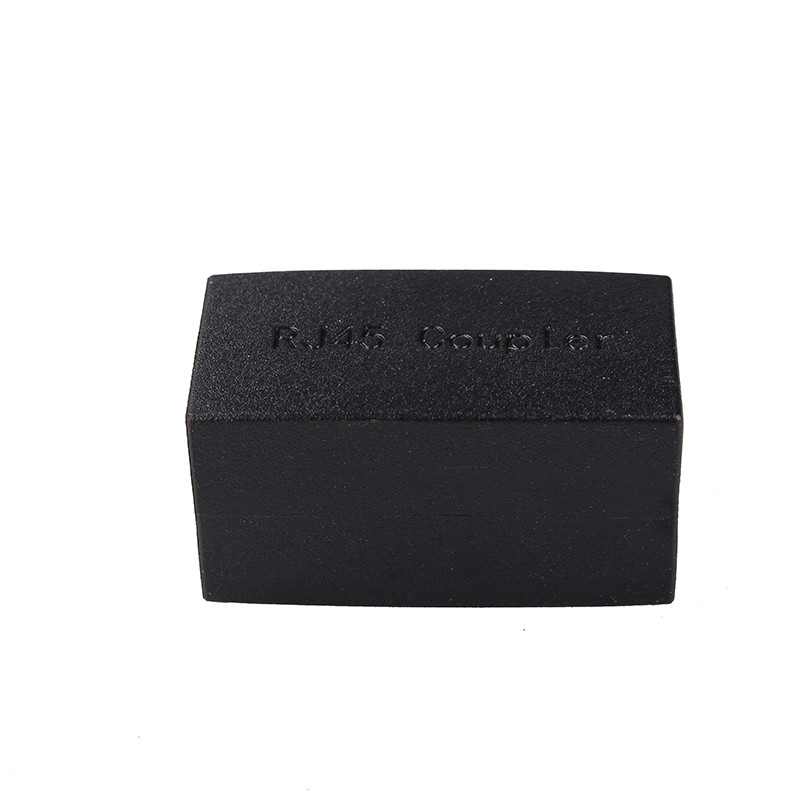

Rj45 Network Splitter Adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black
Rj45 Network Splitter Adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black Rj45 Network Splitter Adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black Rj45 Network Splitter Adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black Rj45 Network Splitter Adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black Rj45 Network Splitter Adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black
Contact Now

Rj45 Network Splitter Adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/bag Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT2811EXX2Q

Detail Information
Current Rating: 1.5 A Voltage Rating: 125 V
Product Type: RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

female ethernet adapter

,

180 Degree Through RJ45 Female Adapter

,

RJ45 Network Splitter Adapter 180 Degree

Product Description

rj45 network splitter adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black

Materials:
CONNECTOR :
Housing:PBT,BLACK,UL94V-0
Contact material:OD=0.46mm gold plating with over nickel( RoHS )
Gold plating:1.5u” Optional
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
PCB: FR4 UL94V-0 ( RoHS )
Shell: PVC Black UL94V-0(RoHS)
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Modular Jack
One to one Port
RJ45 Connector Length: 37.6 mm
RJ45 Connector Width: 19.7 mm
RJ45 Connector Height: 19.7 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



rj45 network splitter adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black

RJ45 Without Transformer (TMZT2811EXX2Q) Attributes:



Model: TMZT2811EXX2Q
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 2000 pcs
Package: 100pcs/bag
Carton size: /
Delivery Time: 20 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500K/year



Female Connector ( TMZT2811EXX2Q) Mechnical Drawing:



Rj45 Network Splitter Adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black 1
