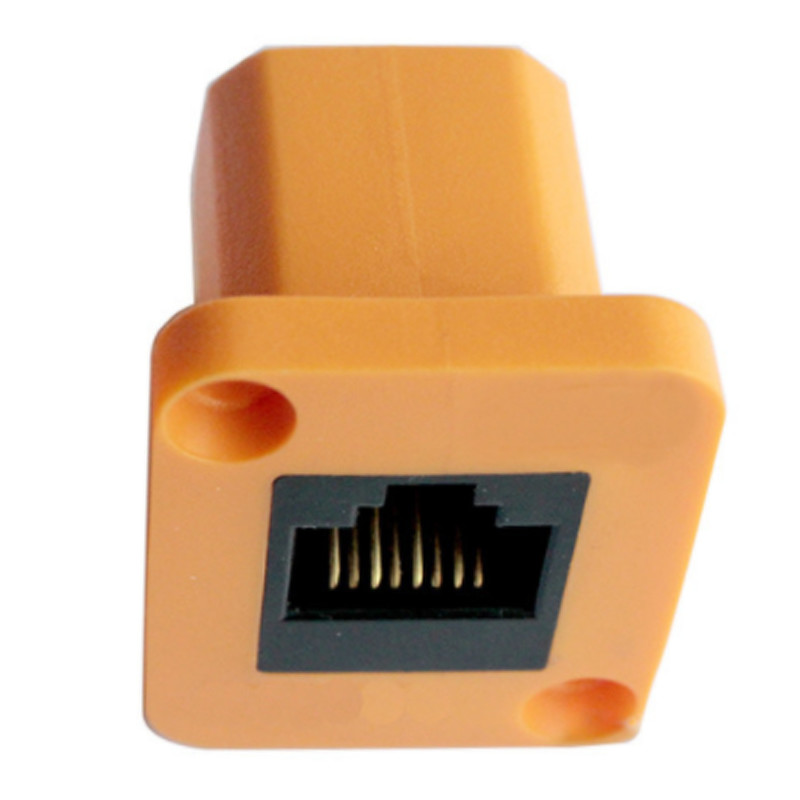

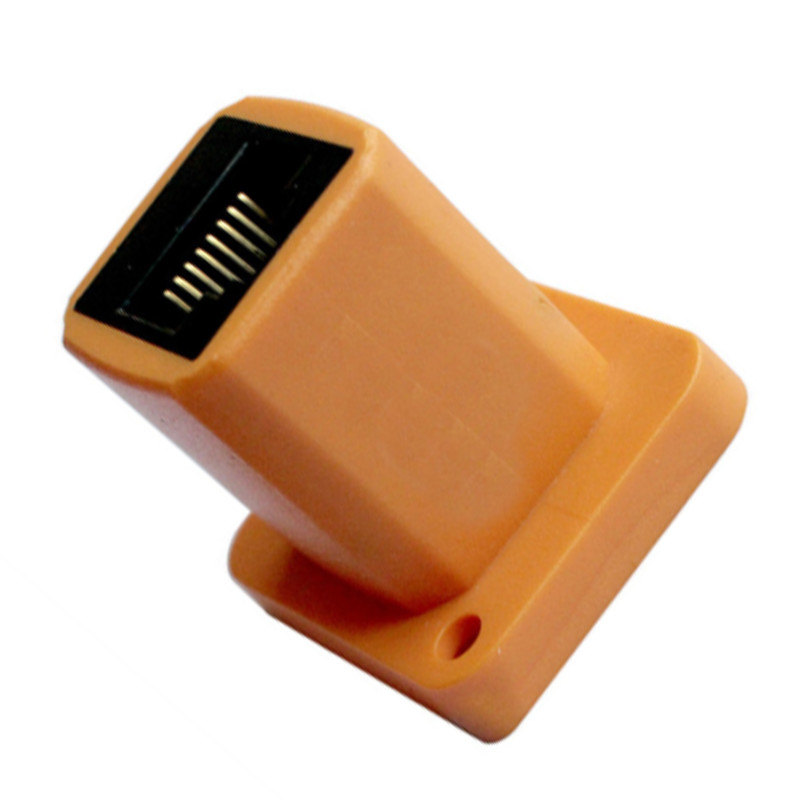

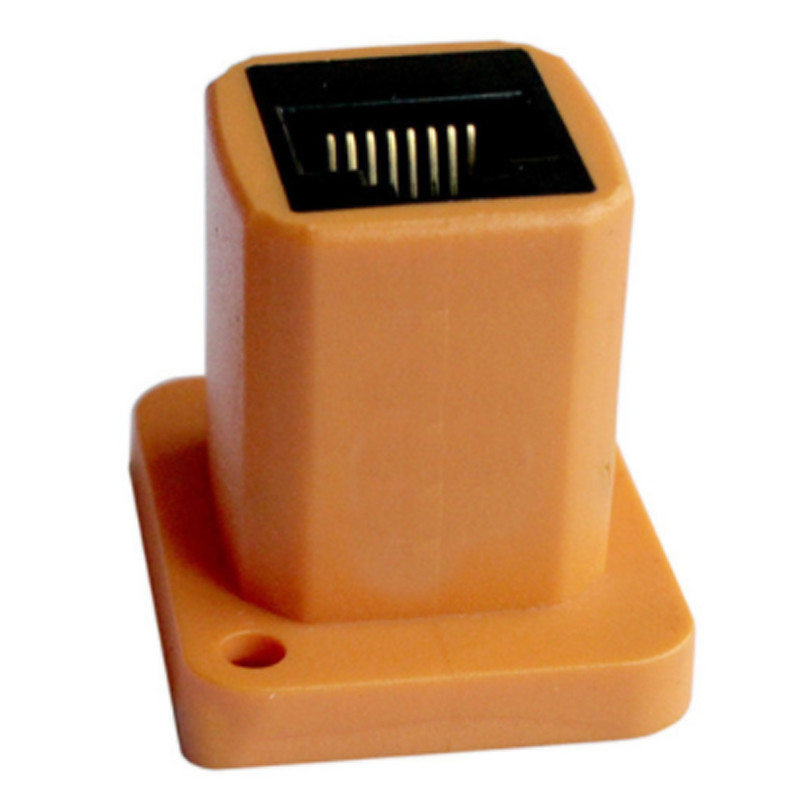

Panel RJ45 Female Adapter Straight Extension 8 Terminals 180 Degree Orientation
Panel RJ45 Female Adapter Straight Extension 8 Terminals 180 Degree Orientation Panel RJ45 Female Adapter Straight Extension 8 Terminals 180 Degree Orientation Panel RJ45 Female Adapter Straight Extension 8 Terminals 180 Degree Orientation
Contact Now

Panel RJ45 Female Adapter Straight Extension 8 Terminals 180 Degree Orientation

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/bag Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZJT020020

Detail Information
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

female ethernet adapter

,

RJ45 Female Adapter 180 Degree Orientation

,

Panel RJ45 Female Adapter Straight Extension

Product Description

180 degree panel RJ45 straight extension adapter




Product Structure:


RJ45 Modular Jack
1 x 1 Port / Single Port / One Port
Latch Down
RJ45 Connector Length: 27.1 mm
RJ45 Connector Width: 26 mm
RJ45 Connector Height: 33 mm
RJ45 Connector Lock hole spacing: 19*24 mm
8P8C ( 8 positions 8 contacts )
180°Orientation


Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

180 degree panel RJ45 straight extension adapter



RJ45 Without Transformer (TMZJT020020) Attributes:



Model: TMZJT020021
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 2000 pcs
Package: 1pcs/bag
Carton size: /
Delivery Time: 20 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500K/year



RJ45 Female Connector ( TMZJT020020) Mechnical Drawing:

Panel RJ45 Female Adapter Straight Extension 8 Terminals 180 Degree Orientation 1
