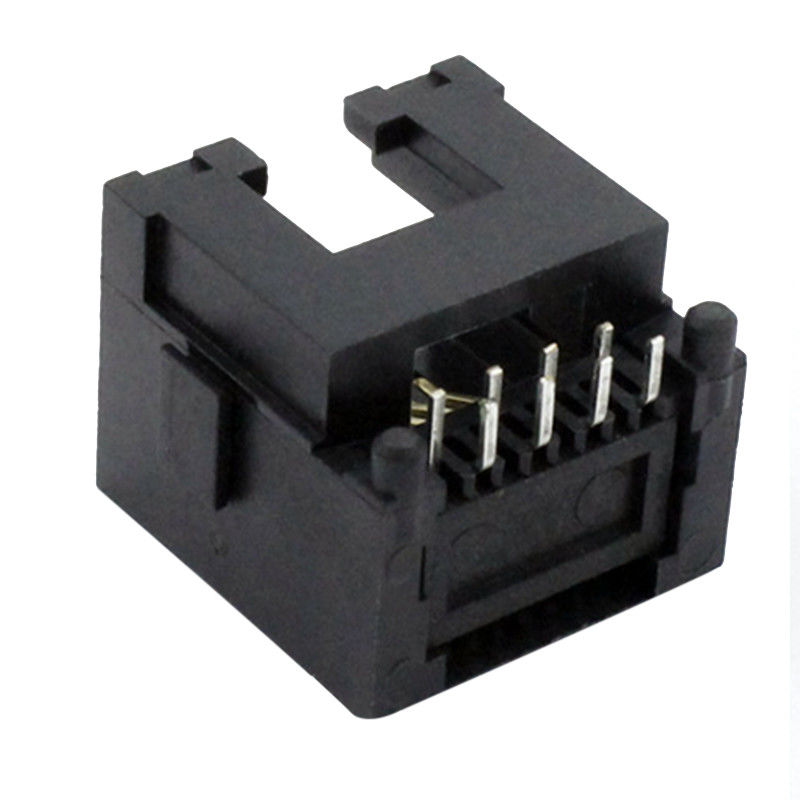

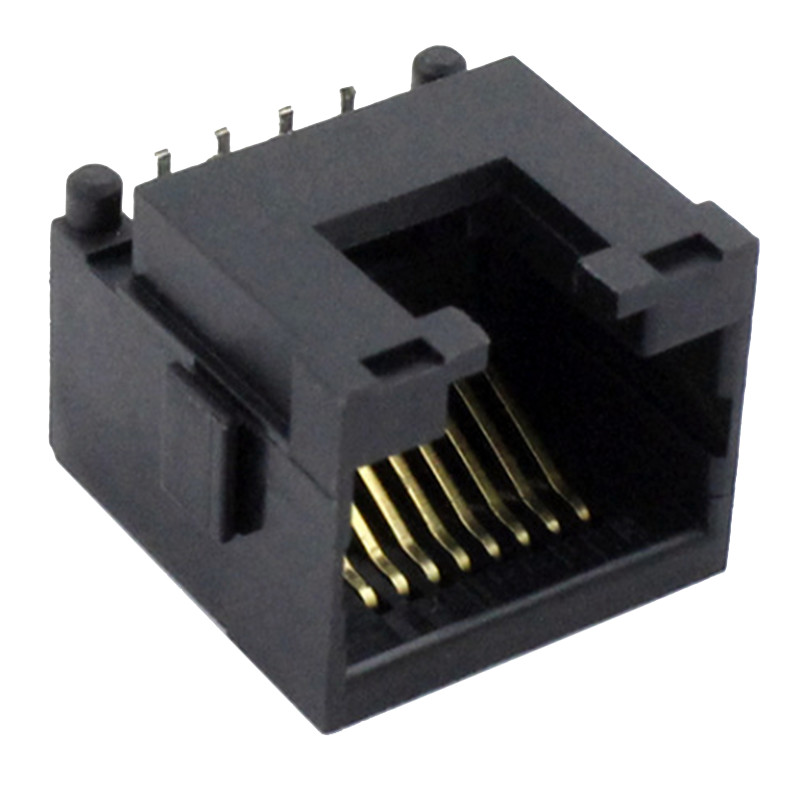

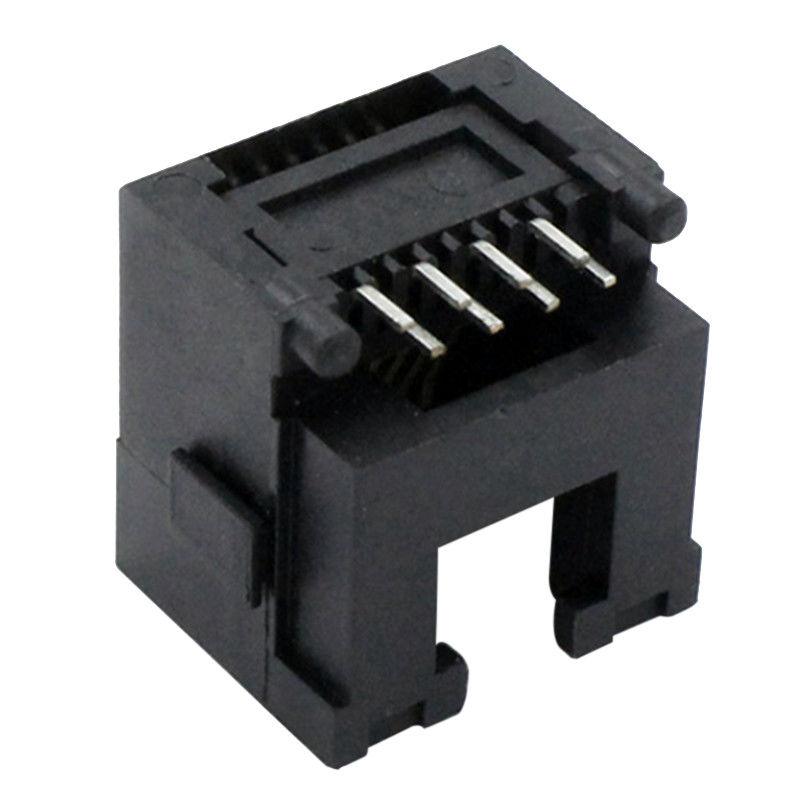

Sink Plate RJ45 Modular Jack Tab Down Without Leds 8.6 Single Port 1x1 On 90 Degree
Sink Plate RJ45 Modular Jack Tab Down Without Leds 8.6 Single Port 1x1 On 90 Degree Sink Plate RJ45 Modular Jack Tab Down Without Leds 8.6 Single Port 1x1 On 90 Degree Sink Plate RJ45 Modular Jack Tab Down Without Leds 8.6 Single Port 1x1 On 90 Degree
Contact Now

Sink Plate RJ45 Modular Jack Tab Down Without Leds 8.6 Single Port 1x1 On 90 Degree

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/Tray Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM58H811SX004211111010

Detail Information
Voltage Rating: 125 V Current Rating: 1.5 A
Jack Type: RJ45 Number Of Positions: 8
Terminals Per Port: 8 LED Option: No
Shielded EMI Tabs: No Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

female ethernet adapter

,

8.6 Single Port RJ45 Modular Jack

,

Sink Plate RJ45 Modular Jack

Product Description

8.6 Single-Port Unshield 1x1 on 90 degree with Sink plate RJ45 Modular Jack Tab Down Without Leds TM58D811SXX47



RJ45 Modular Jack Tab Down(TM58H811SX004211111010) Materials:


Housing : FR52,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No Shield
All materials mates with modulat plug conforming to FCC part 68. subpart F.


RJ45 Modular Jack Tab Down(TM58H811SX004211111010) Product Structure:


RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Latch Down
Connector Length: 13.50 mm
Connector Width: 14.25 mm
Connector Height: 10.90 mm
Termimal Solder Pin Length: 3.3 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


RJ45 Modular Jack Tab Down(TM58H811SX004211111010) Attributes:



Model: TM58D811SXX47
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 40mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Delivery Time: 20 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5KK/year



RJ45 Modular Jack Tab Down(TM58H811SX004211111010) Drawing:





Sink Plate RJ45 Modular Jack Tab Down Without Leds 8.6 Single Port 1x1 On 90 Degree 0
