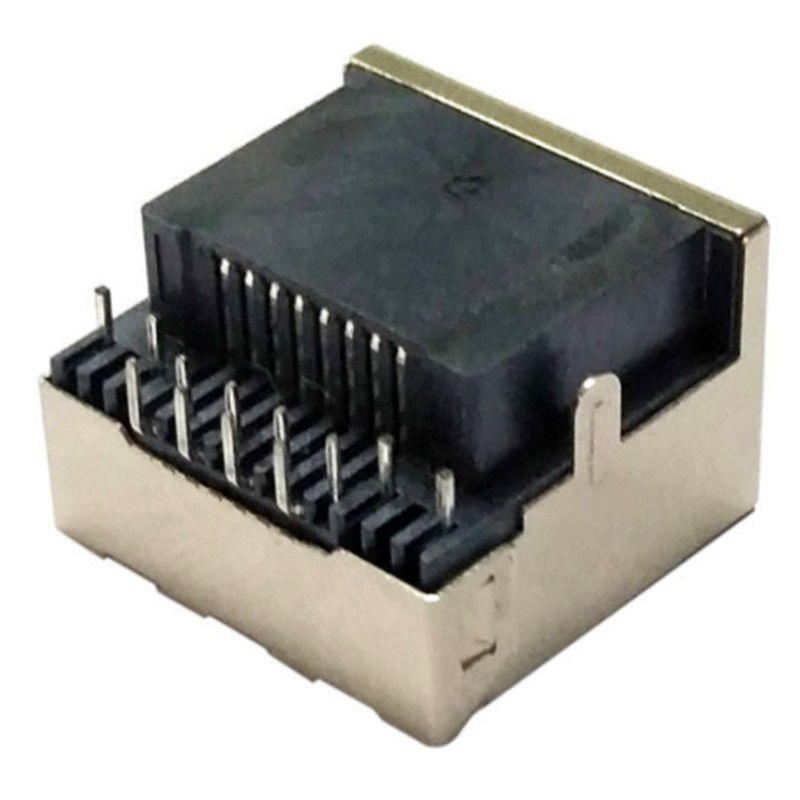

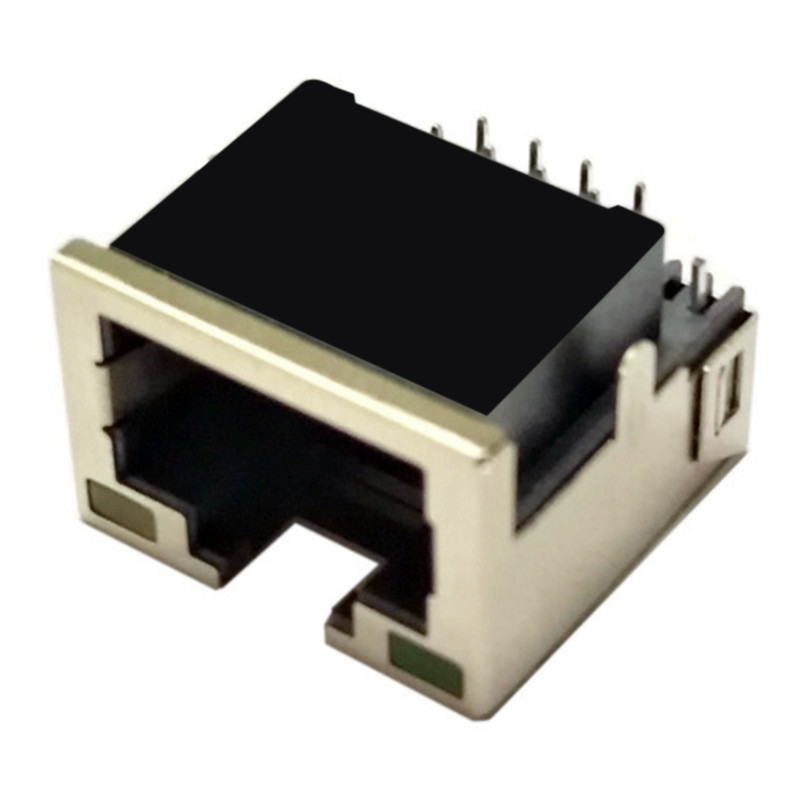

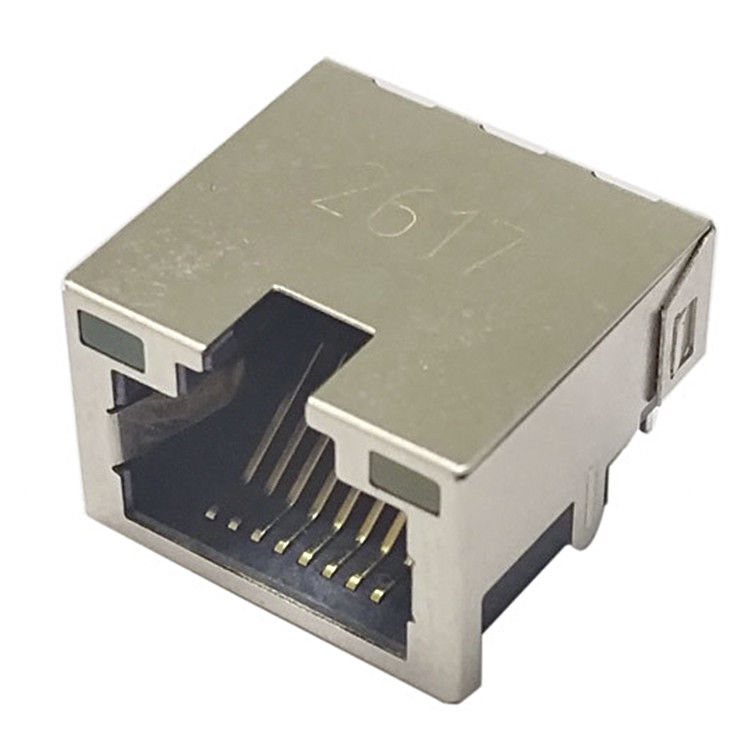

4.2H RJ45 Single Port Shield DIP / Sink Plate RJ45 Modular Jack Tab UP 1x1 With Leds
4.2H RJ45 Single Port Shield DIP / Sink Plate RJ45 Modular Jack Tab UP 1x1 With Leds 4.2H RJ45 Single Port Shield DIP / Sink Plate RJ45 Modular Jack Tab UP 1x1 With Leds 4.2H RJ45 Single Port Shield DIP / Sink Plate RJ45 Modular Jack Tab UP 1x1 With Leds
Contact Now

4.2H RJ45 Single Port Shield DIP / Sink Plate RJ45 Modular Jack Tab UP 1x1 With Leds

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 250pcs/tray,5000pcs/carton Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM58D811EX211216111048

Detail Information
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Terminals Per Port: 8 LED Option: YES,L-YELLOW/R-GREEN
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
High Light:

4.2H RJ45 Modular Jack

,

Single Port Shielded RJ45 Connector

,

RJ45 Modular Jack Tab UP 1x1

Product Description

4.2H RJ45 Single Port Shield DIP / Sink plate RJ45 Modular Jack Tab UP 1x1 With Leds



Product Structure:


RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Latch Up
Connector Length: 15.72 mm
Connector Width: 14.80 mm
Connector Height: 10.83 mm
Termimal Solder Pin Length: 2.0 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED L-YELLOW,R-GREEN, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM58D811EX211216111048) Attributes:



Model: TM58D811EX211216111048
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: YES,L-YELLOW/R-GREEN
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 5000pcs
Package: 250pcs/tray,5000pcs/carton
Carton size: 34*34*27cm
Delivery Time: 20 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5KK/year



RJ45 Female Connector (TM58D811EX211216111048) Mechnical Drawing:


4.2H RJ45 Single Port Shield DIP / Sink Plate RJ45 Modular Jack Tab UP 1x1 With Leds 0
