Rj45 8p8c Connector Pcb Jack Leds Apptional Sink Plate Type Rj45 8pin Connector
Rj45 8p8c Connector Pcb Jack Leds Apptional Sink Plate Type Rj45 8pin Connector Rj45 8p8c Connector Pcb Jack Leds Apptional Sink Plate Type Rj45 8pin Connector Rj45 8p8c Connector Pcb Jack Leds Apptional Sink Plate Type Rj45 8pin Connector Rj45 8p8c Connector Pcb Jack Leds Apptional Sink Plate Type Rj45 8pin Connector
Contact Now

Rj45 8p8c Connector Pcb Jack Leds Apptional Sink Plate Type Rj45 8pin Connector

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 250pcs/tray,5000pcs/carton Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: tmulink
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM58D811SX211201111048

Detail Information
Jack Type: RJ45 Number Of Positions: 8
Terminals Per Port: 8 Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

Rj45 8p8c Connector Leds Apptional

,

shielded rj45 connector

,

Sink Plate Type Rj45 8pin Connector

Product Description

rj45 8p8c connector pcb jack leds apptional sink plate type rj45 8pin connector TM58D811SX211201111048


RJ45 8P8C Connector (TM58D811SX211201111048) Attributes:



Model: TM58D811SX211201111048
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8

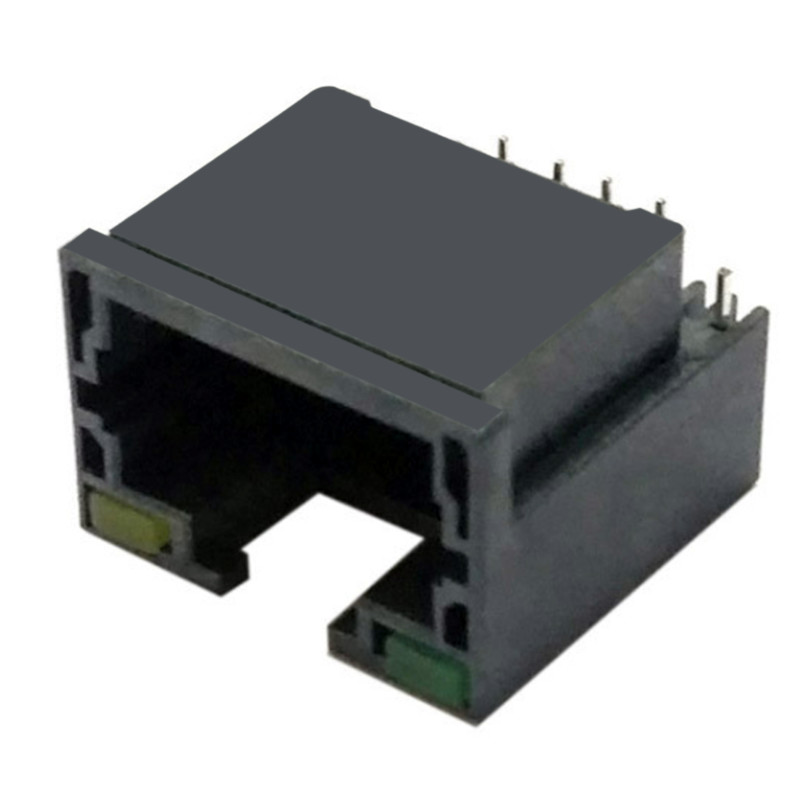

LED Option: YES,L-YELLOW/R-GREEN
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 5000pcs
Package: 250pcs/tray,5000pcs/carton
Carton size: 34*34*27cm
Delivery Time: 20 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5KK/year



RJ45 8P8C Connector (TM58D811SX211201111048) Mechnical Drawing:
